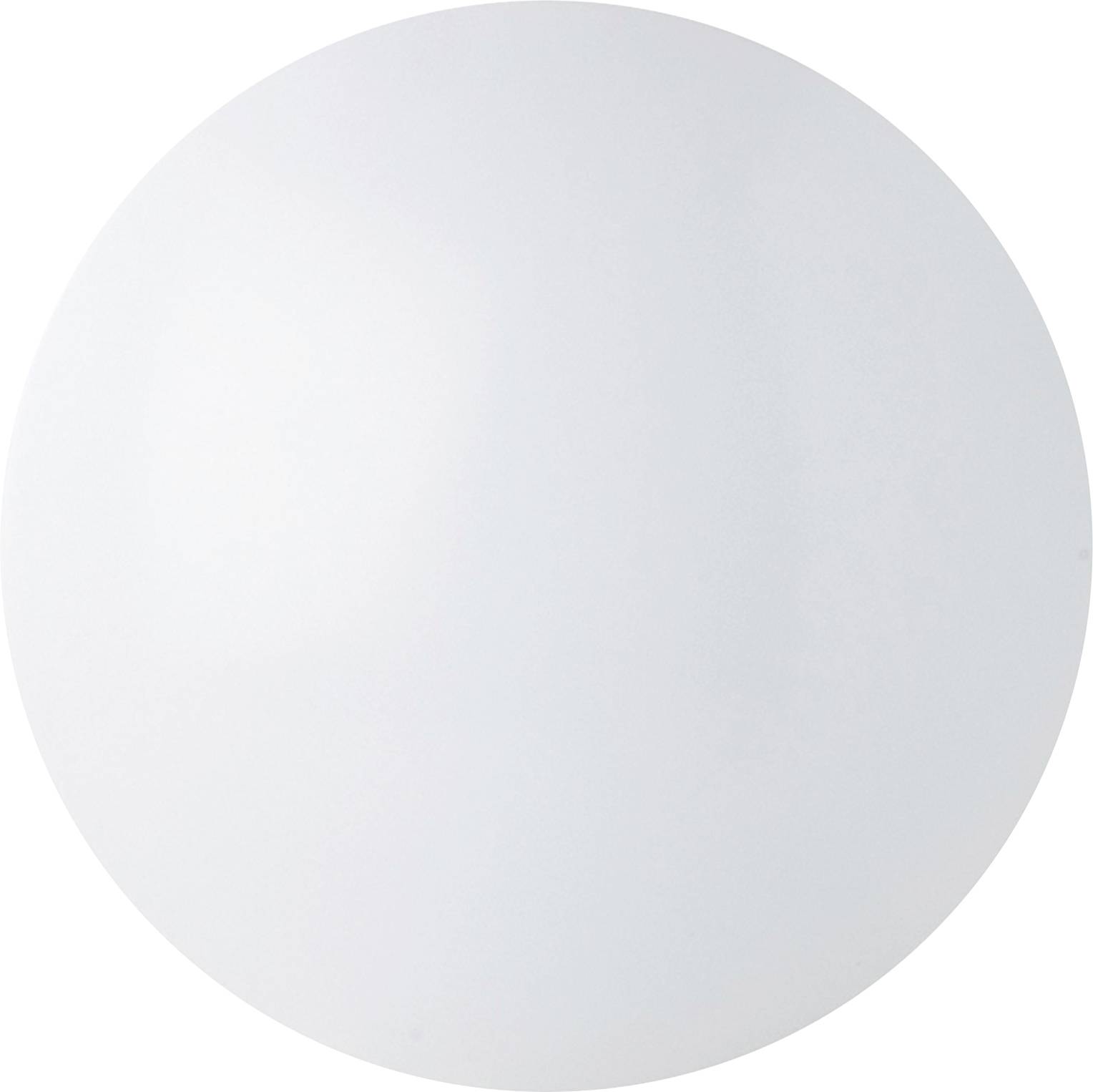

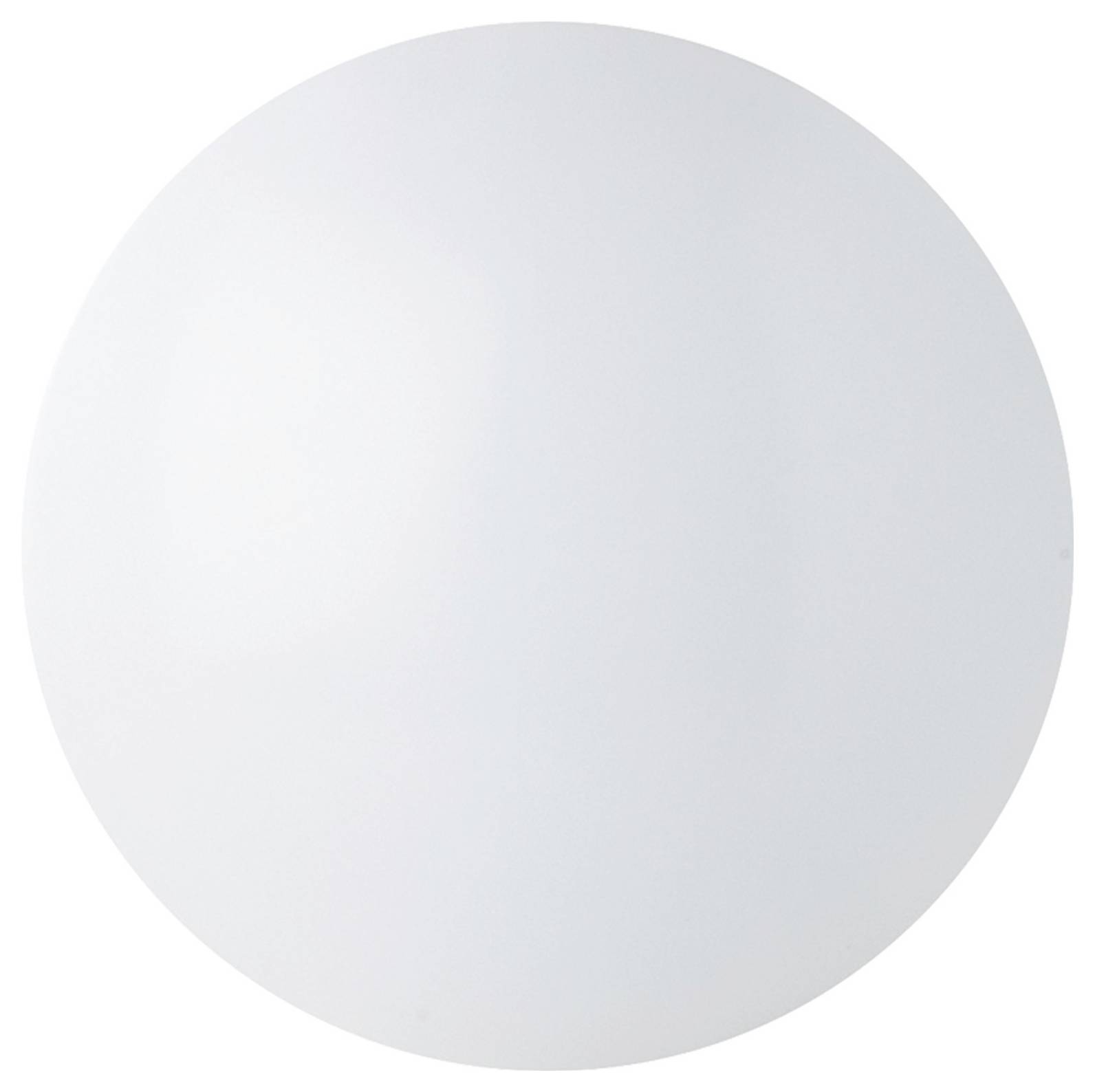

Megatron MT77136 MT77136 LED wall light, LED ceiling light LED (monochrome) Built-in LED 12 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Megatron LED ceiling/wall lamp 830/840, ML, sensor MT77136
- Power= 12 W
- Total luminous flux= 1600 lm
- Colour temperature= 4000 K
- White
Technical specifications
- Dim
(Ø x H) 300 mm x 89.00 mm
- Operating voltage
260 V
- Product type
LED wall light
- Bulb type
LED (monochrome)
- Height
89.00 mm
Built-in LED
- Rating per bulb
12 W
12 W
- (Ø)
300 mm
- Light features
Incl. sensor
- Protection class
I
IP54
- Material
Steel
n.rel.
- Colour rendering index
80-89
- Colour
White
- Light bulb included
Yes
4000 K
- Colour temperature (max.)
4000 K
- Colour temperature (min.)
3000 K
- Colour temperature range
3000 - 4000 K
- Total luminous flux
1600 lm
1600 lm
- Rated luminous flux
1600 lm
- Nominal voltage
260 V
- Number of pins
3
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3361589 Megatron MT77136 MT77136 LED wall light, LED ceiling light LED (monochrome) Built-in LED 12 W
User & Safety Instructions
User & Safety Instructions 3361589 Megatron MT77136 MT77136 LED wall light, LED ceiling light LED (monochrome) Built-in LED 12 W
Description
DECO HF-SEN LED ceiling light IP54/12W, multifunctional object lamp for indoor and outdoor with HF sensor and Master-slave functionality for up to 25 lights. Colour Select: Adjustable color temperature (3000 K, 4000 K). Lumen Select: Adjustable luminous flux (1200 lm, 1700 lm). New generation of multifunctional ceiling lamps for configuration at the mounting location as per customer's wishes. Subsequent changes and extensions to the functions are possible. Retrofit modules: MT77140 MT DECO emergency power module (with 300 lm, light duration up to 3 hours). Also suitable for 178 V DC voltage. Material: Plastic / steel.
