Megger 1003-430 Equipment tester VDE standard 0701-0702
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 962.18 / piece)
€ 962.18
plus VAT.
Only 3 Piece(s) available
Highlights & Details

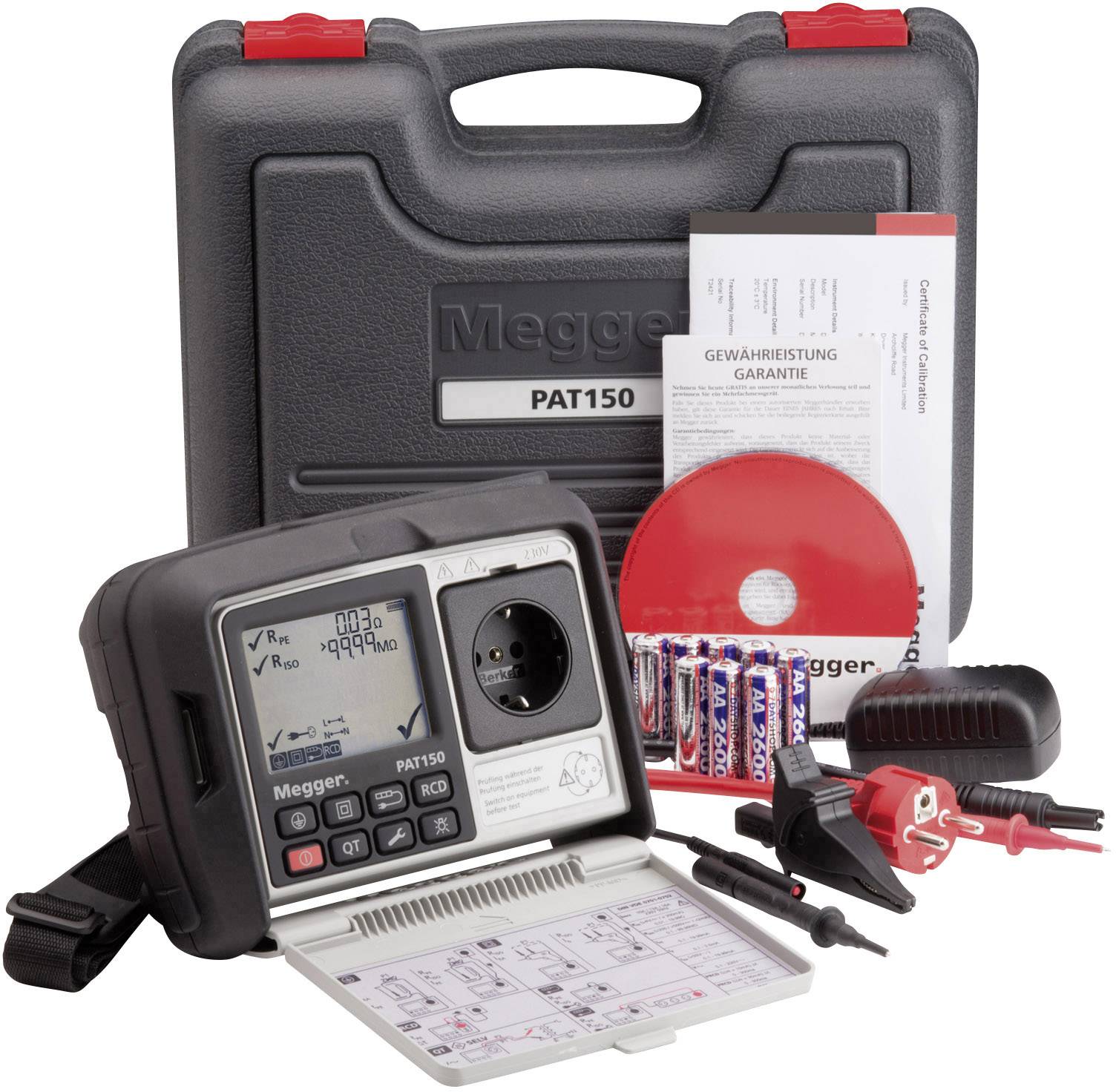

PAT150, device tester according to DIN VDE 0701-0702, BGV A3, EN 62638, with battery and charger
- Small and compact device testerBattery-operated, no mains connection requiredThe PAT150R device tester comes with rechargeable batteries and charger.Robust housing with rubber reinforcement and protective cover for display protectionPre-defined test sequences for SK I, SK II and extension cablesUnique pass/fail indicatorQuick-help card in the device coverMeasurements of the protective conductor current and the contact current are possible in operation with mains voltageBatteries and charger included
Technical specifications
- Measurement of earthing conductor resistance with ± 200 mA (DC)
- Insulation resistance measurement with 500 V and 250 V (DC)
- Measurement of leakage current with approx. 30 V (AC)
- Cable testing (short circuit and interruption-L/N)
- Measurement protective conductor current (residual current measurement)
- Measurement of the contact current (direct measurement)
- Testing of portable RCD (PRCD)
- Voltage measurement with SELV and PELV
- Product type
Equipment tester
Manufacturer's standards (no certificate)
- Reading category
CAT II 300 V
- Interfaces
none
- Dim
(L x W x H) 148 x 203 x 78 mm
- Weight
1.3 kg
IP40
- Reading range (VDE)
Earth leakage resistance
Earth leakage current
Insulation resistance
Leakage current
Touch voltage
Continuity
- DIN standard
DIN EN 62638
- Display type
Digital (LCD)
- Width
203 mm
- Height
78 mm
- Length
148 mm
- Test procedure
automated
- Voltage supply
Battery
230 V/AC
- Memory
No
- Type
1003-430
- VDE standard
0701-0702
- Features
RCD/FI testing
- Memory
-
- Display (details)
LC display with display lighting (Backlight), display of measurement values, limits, symbols for passed/not passed
- Interfaces
-
- Standards
DIN VDE 0701-0702, BGV A3, EN 62638 DGUV Rule 3
Documents & Downloads
Datasheet
Datasheet 1233910 Megger 1003-430 Equipment tester VDE standard 0701-0702
User & Safety Instructions
User & Safety Instructions 1233910 Megger 1003-430 Equipment tester VDE standard 0701-0702
Description
With this device tester you can carry out quick and comfortable independant tests according to DIN VDE 0701-0702 (DGUV regulation 3, BGV A3). With this battery-operated device tester, you can carry out the basic test, such as protective conductor resistance, insulation resistance and replacement leakage current, even without mains voltage. Pre-defined test sequences make it easier for the tester to select the test sequence, and this allows quick assignment of the test samples according to SK I or SK II. There is also a test procedure for extension cables and line rollers, so that these test pieces that occur very frequently in practice can be tested very quickly and easily.In addition, the device tester PAT150R can also carry out measurements of the earth conductor current and the contact current with mains voltage in order to be able to measure test samples with electronic switches safely. If the device tester PAT150 is supplied with mains voltage, instead of the replacement leakage current measurement, an automatic measurement of the protective conductor current (residual current measuring method) or the contact current (direct measuring method) is carried out. The device tester PAT150R can be operated with batteries as well as with rechargeable batteries, rechargeable batteries and charger are included in the delivery.
This text is machine translated.
This text is machine translated.
Features
- Automatic test sequence for SK I, SK II and extension cablesLC display with display illumination (backlight)Display of measured values, limit values, symbols for passed/failedOnly one probe connection for earth conductor, insulation resistance and contact currentPerforming individual tests (quick test)Setting options for limit values and measuring times using setup
Scope of delivery
- Hard caseShoulder strap2 test leads with test tip and alligator clipAdapter for extension cablesCalibration certificateQuick start guide (in the lid)User guide on CD.8 rechargeable batteries 1.2 V (NiMH, AA, IEC R6)Charger
