Megger 1010-516 MCC1010 Expansion module 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

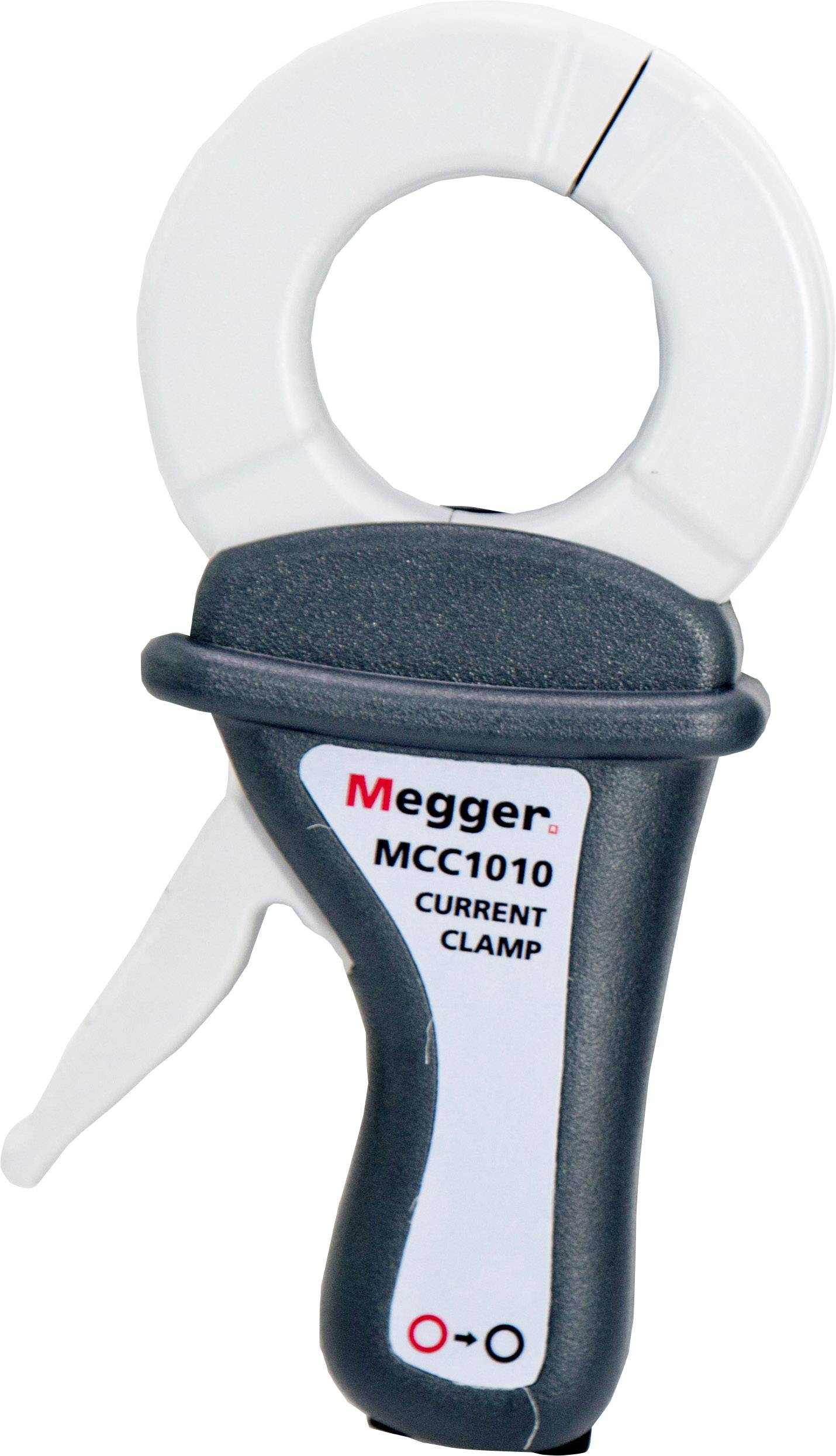

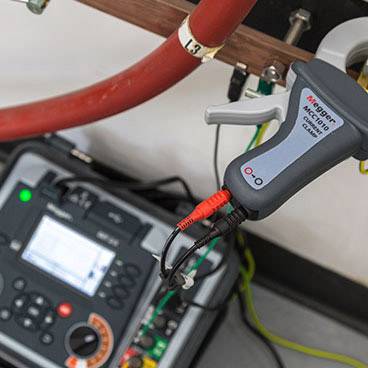

Current clamp MCC1010
- Cat IV 600 V current measurement up to 1000 A AC
- 1 mA / 1 A sensitivity at a rated load resistance of 1 Ω
- Large jaws for conductors up to 52 mm
- Overvoltage protection of the output terminals
- Suitable for leakage currents
Technical specifications
- Transformation ratio 1000:1
- Sensitivity 1 mA/A.
- Frequency bandwidth 15 Hz – 10 kHz
- Crest factor ≥ 6 for currents up to 2000 A / peak current (300 A rms)
- Influence of the crest factor ≤1% for CF≤4
- Nominal load impedance ≤1 Ω (load resistance)
- Maximum output voltage ≤28 V pointed (electronic limiter)
- Influence of frequency 30 Hz – 5 kHz ≤0.25%
- Influence of the conductor position in the clamping jaws ≤0.3% of the amplitude
- Operating voltage ≤600 V rms.
- Product type
Expansion module
- Compatible with
Megger
- Weight
700 g
- Reading category
CAT IV 600 V
- Width
110 mm
- Height
45 mm
- Length
218 mm
- Type
MCC1010
Documents & Downloads
Datasheet
Datasheet 2108094 Megger 1010-516 MCC1010 Expansion module 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2108094 Megger 1010-516 MCC1010 Expansion module 1 pc(s)
Description
The current clamp has a 1000:1 down control ratio and is designed for measuring alternating currents up to 1000 A. The clamp has an excellent accuracy (0.3% error, complete measuring range) and a small phase shift (0.7 °, complete measuring range) and can thus be used for measuring power, energy and performance quality applications. This high performance is achieved because the magnetic cores are made of high-permeable Feni alloy.
The nominal terminating resistor (load) of 1 Ω must be provided by the device connected to the MCC1010 and MVC1010.
The output terminals of the MCC1010 and MVC1010 are protected by a voltage limitation circuit, at which a safe contact voltage is applied under all evaluated conditions.
The MCC1010 and MVC1010 are evaluated according to the international standard IEC 61010 for CATIA 600 V.
This text is machine translated.
The nominal terminating resistor (load) of 1 Ω must be provided by the device connected to the MCC1010 and MVC1010.
The output terminals of the MCC1010 and MVC1010 are protected by a voltage limitation circuit, at which a safe contact voltage is applied under all evaluated conditions.
The MCC1010 and MVC1010 are evaluated according to the international standard IEC 61010 for CATIA 600 V.
This text is machine translated.
Features
- The MCC1010/MVC1010 is a non-contact current clamp that is easy to use and is used with the following instruments:
- Power quality analyzers
- Oscilloscopes
- Engine test equipment
- Clamp-on earth testers
- Attached Rod Technique (ART)
- Test procedure without grounding
- Data collector
- Digital multimeters
