Megger AVO215 Handheld multimeter Digital Continuity tester, Data Hold function, Screen back-lighting, Capacitance testi
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 121.84 / piece)
€ 121.84
plus VAT.
Only 4 Piece(s) available
Technical specifications
- Product type
Handheld multimeter
- Voltage DC reading range (max.)
600 V
- V AC reading range (max.)
600 V
- A DC reading range (max.)
10 A
- Amperage reading range AC (max.)
10 A
- Reading range - resistance
0-40 MΩ
- Reading range - capacity
0 to 4000 µF
- Frequency reading range
10 Hz to 10 kHz
- Measurement type (details)
True RMS
- Height
182 mm
- Width
59 mm
- Length
82 mm
- Weight
342 g
Manufacturer's standards (no certificate)
- Reading category
CAT III 600 V
- Voltage metering
AC/DC
- Current reading
AC/DC
- Type
AVO215
- Display
Digital
- Display (counts)
4000
- Dim
(L x W x H) 82 x 59 x 182 mm
- Features
Continuity tester
Data Hold function
Screen back-lighting
Capacitance testing
Documents & Downloads
Datasheet
Datasheet 3027886 Megger AVO215 Handheld multimeter Digital Continuity tester, Data Hold function, Screen back-lighting, Capacitance testi
User & Safety Instructions
User & Safety Instructions 3027886 Megger AVO215 Handheld multimeter Digital Continuity tester, Data Hold function, Screen back-lighting, Capacitance testi
Description

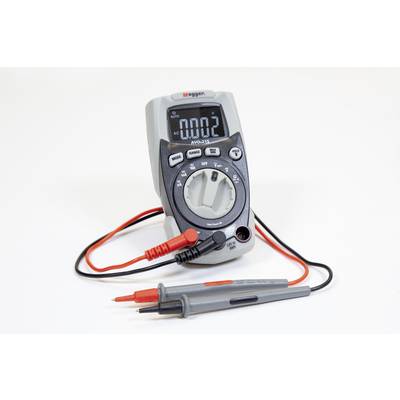

The AVO®215 is a pocket-sized multimeter that combines a variety of functions in a small, rugged housing. The negative display with Hohem contrast, 4000 dpi and background lighting offers the user easy to read results in all lighting conditions. Thanks to the size of the casing and the position of the function switch and the buttons, the device fits comfortably in the hand and can also be operated with one hand
This text is machine translated.
This text is machine translated.
Features
- Digital display with 4000 dpi
- AC/DC voltage up to 600 V.
- AC/DC-current up to 10 A
- Real effective value
- Resistance, capacitance, frequency ranges
- Cycle
- Automatic range determination
- Auto switch-off
- Freezing the measured value
- Max/Min
- Built-in flash light
- Inclinable stand on rear side
- CAT III protection class 600 V
