Megger DCM1500 Handheld multimeter, Clamp meter Digital Continuity tester CAT IV 600 V Display (counts): 4000
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Clamp multimeter DCM 1500
- CAT IV 600V
- True RMS
- 0.1 - 1500 A AC/DC
Technical specifications
- Voltage reading range DC (min.)
0.1 V
- Product type
Handheld multimeter
- Voltage DC reading range (max.)
1000 V
- V AC reading range (min.)
0.1 V
- V AC reading range (max.)
750 V
- Amperage reading range DC (min.)
0.1 A
- A DC reading range (max.)
1500 A
- A AC reading range (min.)
0.1 A
- Amperage reading range AC (max.)
1500 A
- Reading range - resistance
0 - 400 Ω
- Frequency reading range
20 - 400 Hz
- DC resistance
1 MΩ
- AC resistance
1 MΩ
- Basic accuracy
0.7 %
- Measurement type (details)
True RMS
- Frequency range
50 - 500 Hz
- Power supply (details)
9 V battery
- Height
275 mm
- Width
105 mm
- Length
48 mm
- Weight
524 g
Manufacturer's standards (no certificate)
- Reading category
CAT IV 600 V
- Voltage metering
AC/DC
- Current reading
AC/DC
- Type
DCM1500
- Display
Digital
- Display (counts)
4000
- Dim
(L x W x H) 48 x 105 x 275 mm
- Features
Continuity tester
- Opening range of current clamps
51 mm
Documents & Downloads
Datasheet
Datasheet 1707429 Megger DCM1500 Handheld multimeter, Clamp meter Digital Continuity tester CAT IV 600 V Display (counts): 4000
User & Safety Instructions
User & Safety Instructions 1707429 Megger DCM1500 Handheld multimeter, Clamp meter Digital Continuity tester CAT IV 600 V Display (counts): 4000
Description
The clamp-on ammeter DCM1500 for currents of up to 1,500 A with measurement category CAT IV and True RMS can be used for troubleshooting, installation, maintenance and periodic inspection especially for energy providers and in all industrial electrical systems. With the peak function with the fast sampling rate of 10 ms you can capture even the very brief inrush currents. The clamp-on ammeter measures resistances and frequencies as well as direct and alternating currents of up to 1500 A and voltages up to 750 V AC and 1000 V DC. A further advantage offers DCM 1500 when measuring direct currents with generators, photovoltaic systems, electric vehicles, lift systems, electroplating systems, electrical welding devices and uninterruptible power supply. The protruding knurled wheel enables you the comfortable setting with the right thumb and thus a complete one-handed operation.
This text is machine translated.
This text is machine translated.
Features
- Current measurement up to 1,500 A DC/AC
- Measuring voltage 750 V AC and 1000 V DC
- True-RMS measurements for higher accuracy
- Large clamp opening for reliable measurements with conductors which are not insulated
- Resistance, continuity and frequency measurements
- Peak, Min/max display and data hold function.

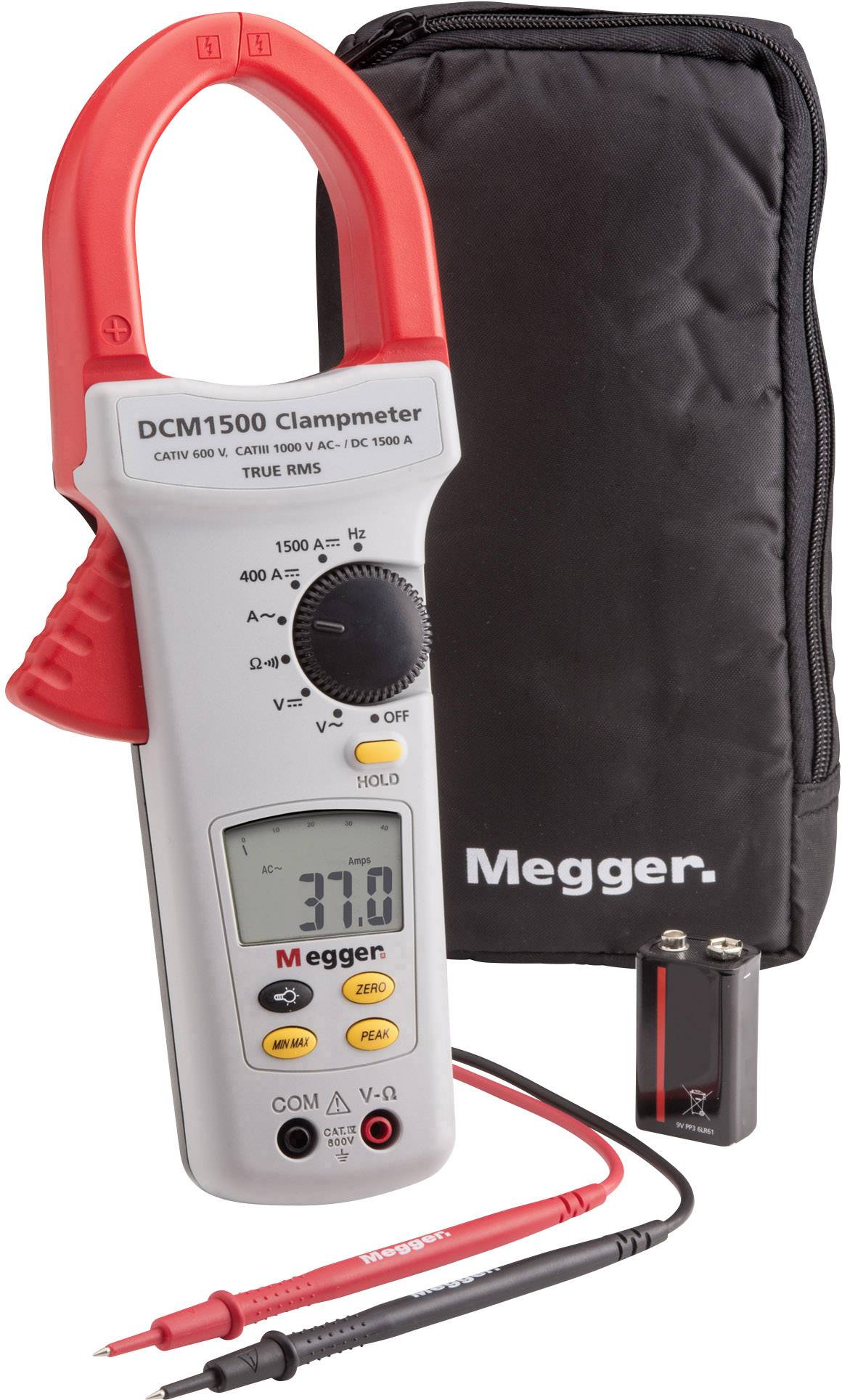

Scope of delivery
- Safety test leads
- Battery
- Bag
- User manual
