Buy Megger MIT1015-EU ESSENTIAL 10kV IRT 2024 PIP Insulation tester 5000 V, 10000 V 20 TΩ

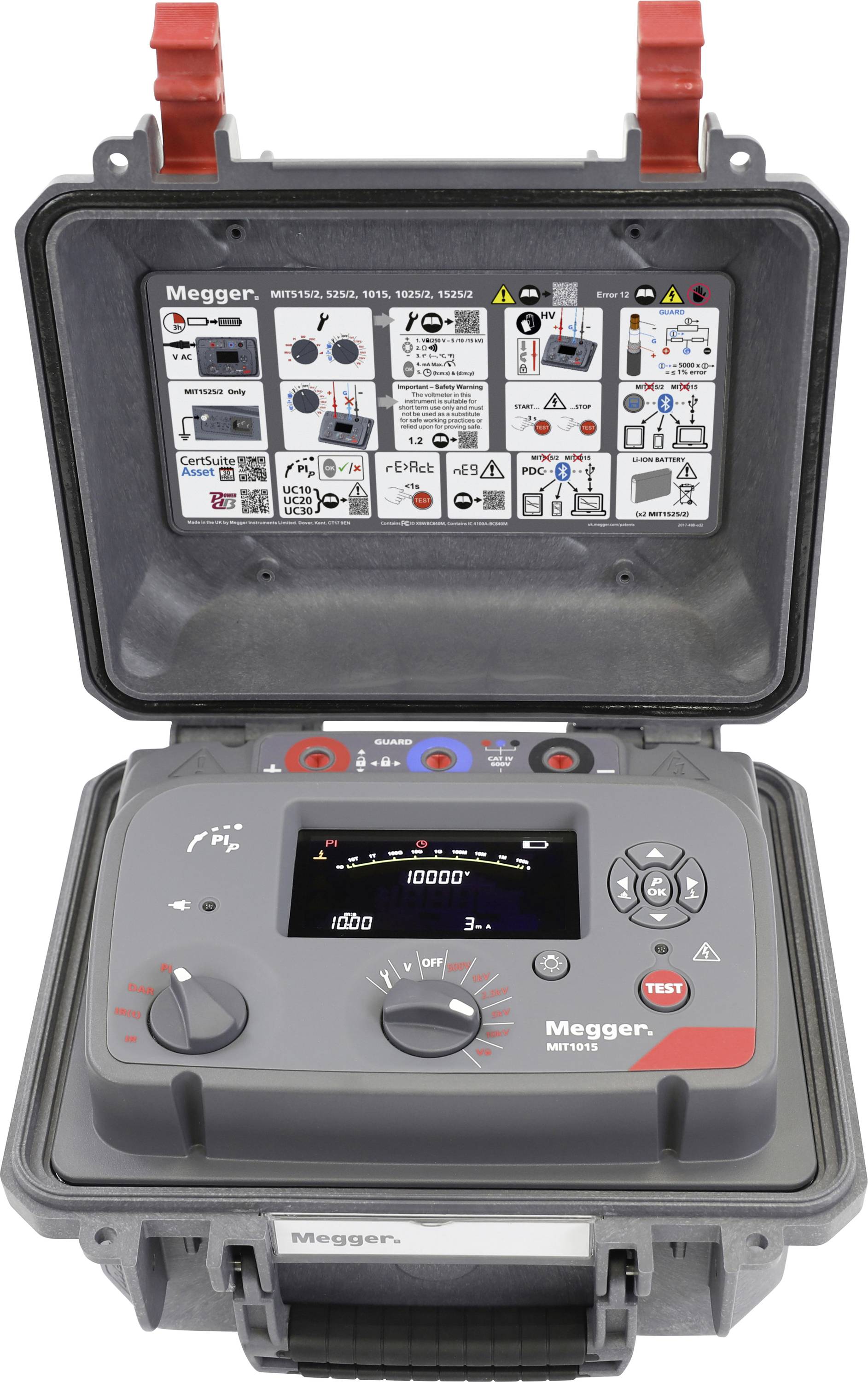

A digital insulation tester with an open protective case, displaying controls and a guide on the lid.

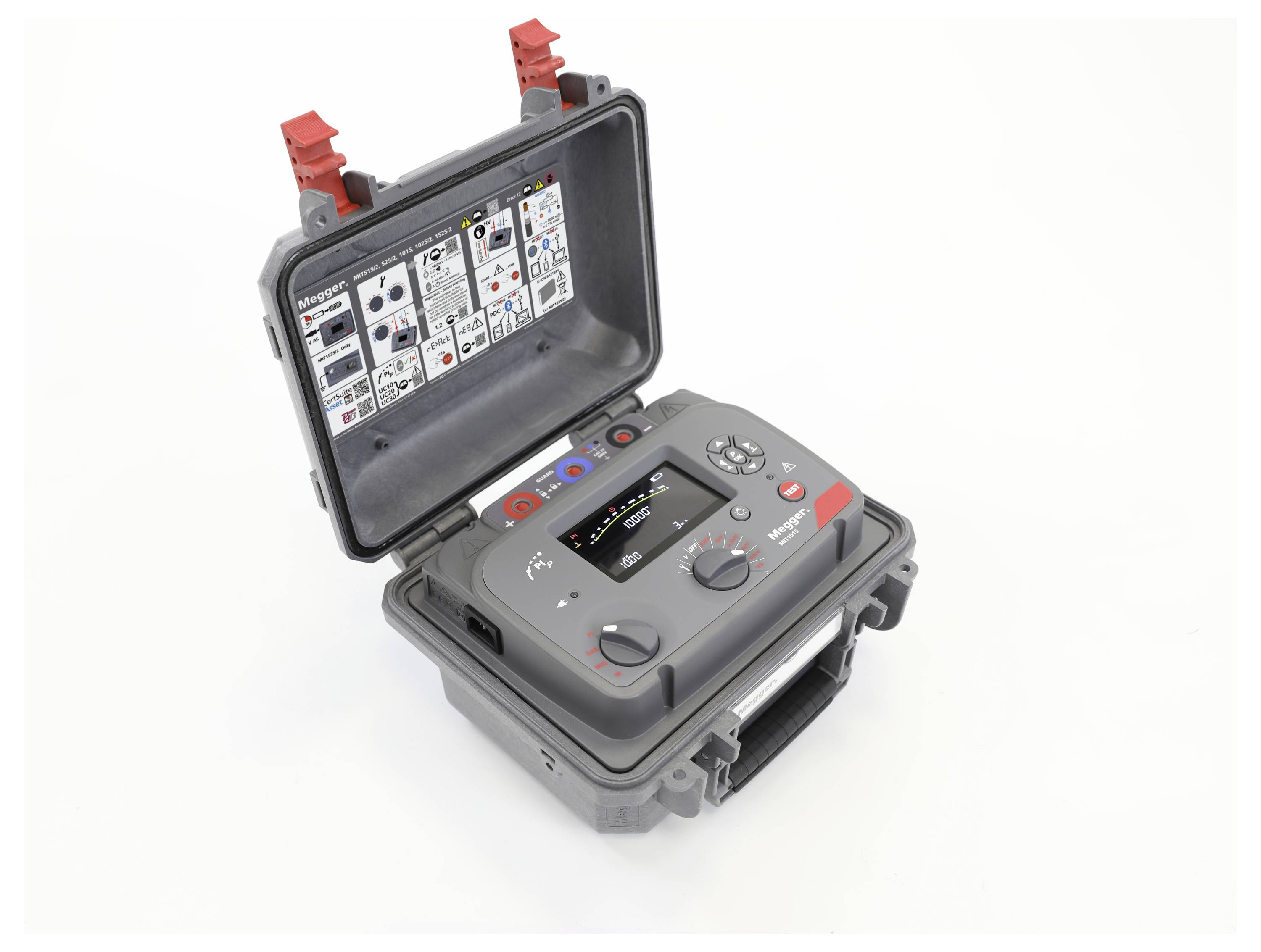

'Digital insulation tester in an open protective case displaying a control panel with buttons, a screen, and an instructional guide.'

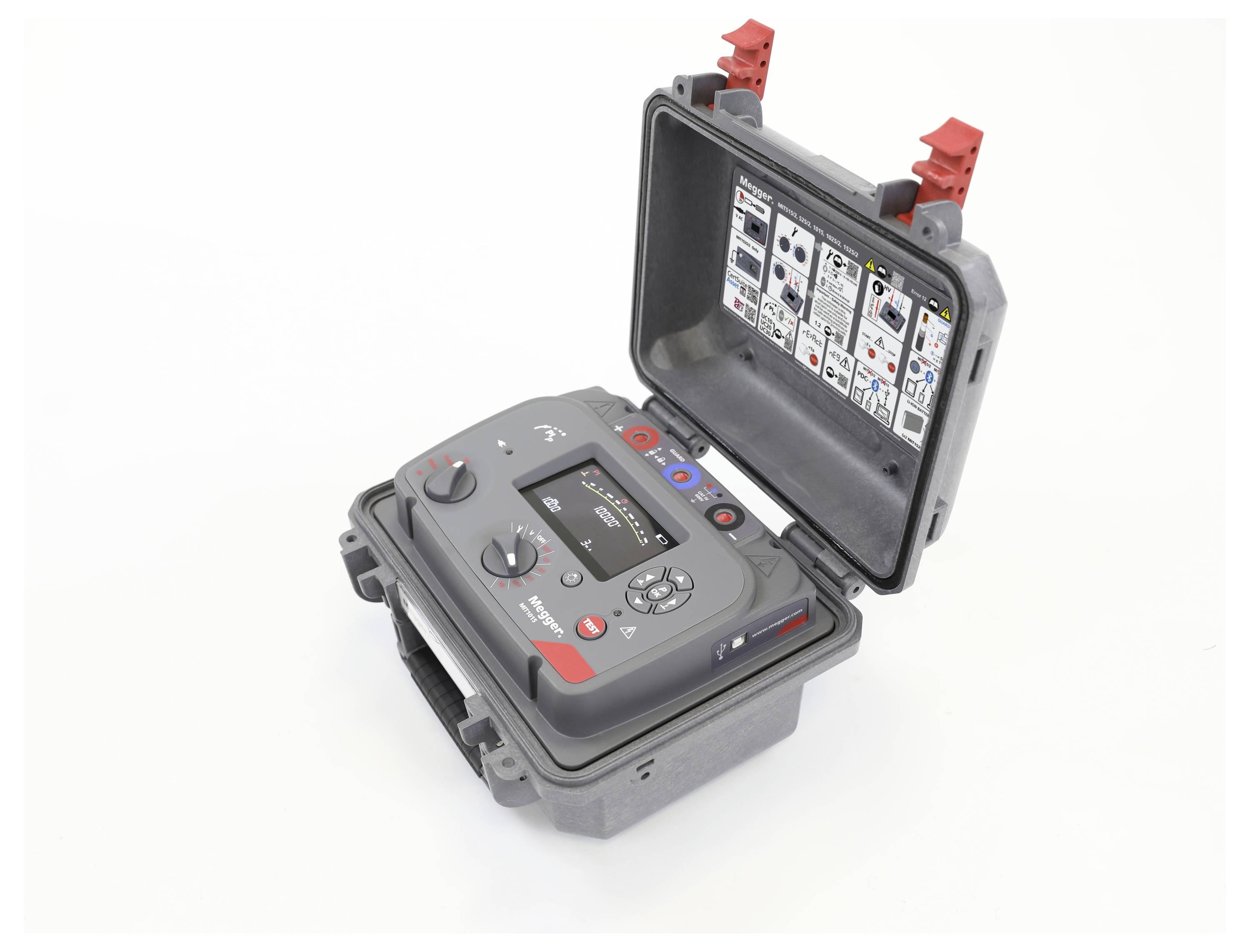

A portable electronic device in an open hard case, displaying a screen and buttons. Instruction labels are visible inside the lid.

1/3

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

MIT1015-EU ESSENTIAL 10KV IRT 2024 PIP

MIT1015-EU Essential 10 kV IR tester with DAR, PI and PI Predictor
Medium charging capacity (3 mA) and average noise capacity (3 mA).
Double case
Voltage warnings
Test Leads
The complete CertSuite Asset package
Non-removable test terminals
Pre-configured diagnostic tests

Technical specifications

High performance guard connection
IR
IR(t)
PI Polarisation index
PI Predictor
DIELECTRIC absorption ratio

Product type: Insulation tester

Test voltage: 5000 V
10000 V

Reading type: Insulation resistance

: Manufacturer's standards (no certificate)

Reading range - resistance: 10 kΩ to 20 TΩ

Interfaces: USB
Bluetooth®

: IP40
IP65 (closed)

Dim: (L x W x H) 31.5 x 28.5 x 18.1 cm

Weight: 4.5 kg

Display type: Digital

Max. frequency: 63 Hz

Min. frequency: 47 Hz

Frequency range: 47 Hz - 63 Hz

Insulation resistance (max.): 20 TΩ

Voltage reading range (max.): 660 V AC
660 V DC

Voltage reading range (min.): 30 V AC
30 V DC

Reading category: CAT IV 600 V

Width: 28.5 cm

Height: 18.1 cm

Length: 31.5 cm

Documents & Downloads

Datasheet

Datasheet 3451610 Megger MIT1015-EU ESSENTIAL 10kV IRT 2024 PIP Insulation tester 5000 V, 10000 V 20 TΩ

Security datasheet

Security datasheet 3451610 Megger MIT1015-EU ESSENTIAL 10kV IRT 2024 PIP Insulation tester 5000 V, 10000 V 20 TΩ

Description

Re-Act mode for improved accuracy and safety
PI-Precision function (PIP)
Measures up to 20 TΩ
Noise suppression up to 3 mA
Unique Dual casing design – extra protection for the user
Operates with batteries or mains current
Quick rechargeable Li-ion battery

This text is machine translated.
