Megger MIT2500 Insulation tester 50 V, 100 V, 250 V, 500 V, 1000 V, 2500 V 200 GΩ
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Insulation tester MIT2500
- Six test voltages from 50 - 2500 V
- Variable test voltages from 50 - 2500 V
- Measuring range up to 200 GΩ
- Highly developed guard technology.
- Analogue curve simulation
- Stable Insulation test voltage
- Faster single area continuity testing of 0.01 Ω to 1 MΩ
- Polarisation index (PI) and the dielectric absorption (DAR)
- CAT IV 600V
- Bluetooth
Technical specifications
- Product type
Insulation tester
- Test voltage
50 V
100 V
250 V
500 V
1000 V
2500 V
- Reading type
Insulation resistance
- Continuity testing
0.01 Ω - 1 M Ω
Manufacturer's standards (no certificate)
- Interfaces
Bluetooth®
IP54
- Power supply (details)
6 x AA
- Dim
(L x W x H) 6.3 x 10.8 x 22.8 cm
- Weight
815 g
- Display type
Digital
- Max. frequency
400 Hz
- Min. frequency
15 Hz
- Frequency range
15 Hz - 400 Hz
- Insulation resistance (max.)
200 GΩ
- Voltage reading range (max.)
600 V
- Voltage reading range (min.)
0.01 V
- Reading category
CAT IV 600 V
- Width
10.8 cm
- Height
22.8 cm
- Length
6.3 cm
Documents & Downloads
Datasheet
Datasheet 1666895 Megger MIT2500 Insulation tester 50 V, 100 V, 250 V, 500 V, 1000 V, 2500 V 200 GΩ
User & Safety Instructions
User & Safety Instructions 1666895 Megger MIT2500 Insulation tester 50 V, 100 V, 250 V, 500 V, 1000 V, 2500 V 200 GΩ
Description
The insulation resistance measuring device and continuity tester with 2500 is for insulation resistance measurements are used, which more than 1,000 V need. With 2500 offers, on the one hand, six fixed test voltages of 50 V, 100 V, 250 V, 500 V, 1000V and 2500V and, on the other hand, infinitely variable test voltages between 50V to 2500 V. The output test voltage during testing within 2%. With 2500 offers a battery compartment for 6 batteries and separate access to the fuses. For the first time offers a handy device also comes with the tried and tested Guard technology. This surface leakage currents are eliminated. This allows accurate measurements even with heavy soiling and moisture on the insulator. The robust rubber housing enstpricht IP54.
This text is machine translated.
This text is machine translated.
Features
- Variable test voltage
- Guard technology
- 2.5 kV silicone test leads
- 2% accuracy of the test voltage
- Stabilised test voltage
- Test voltage display
- Measuring range indicator
- Display of the measuring voltage
- Analogue curve simulation
- PI and DAR
- First-time testing
- 200-GΩ range
- Test lock
- Insulation buzzer
- Test fixing.

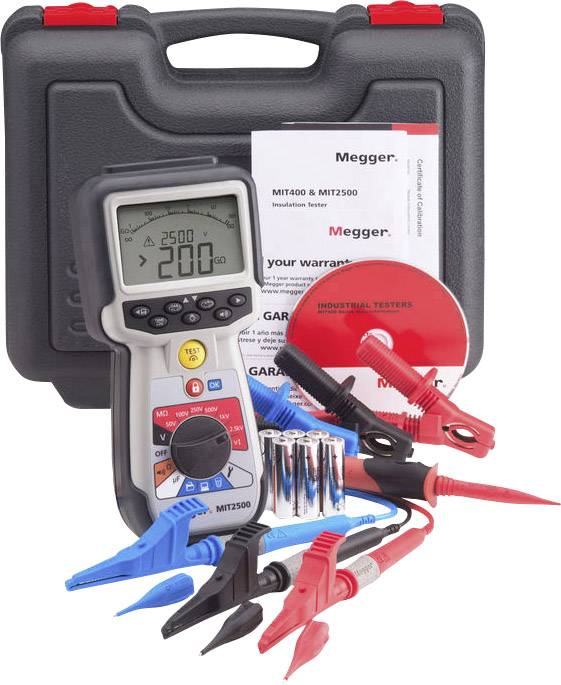

Scope of delivery
- Silicone test lead with 2.5 kV-Nennspanung with medium-sized terminals (1 x red, 1 x black, 1 x blue)
- Silicone test lead with probe tips and alligator clips (1 x red, 1 x black, 1 x blue)
- Hard case
- 6 batteries (AA)
- User manual
