Buy Megger MIT515/2-EU ESSENTIAL 5kV IRT 2024 PIP Insulation tester 5000 V, 10000 V 15 TΩ

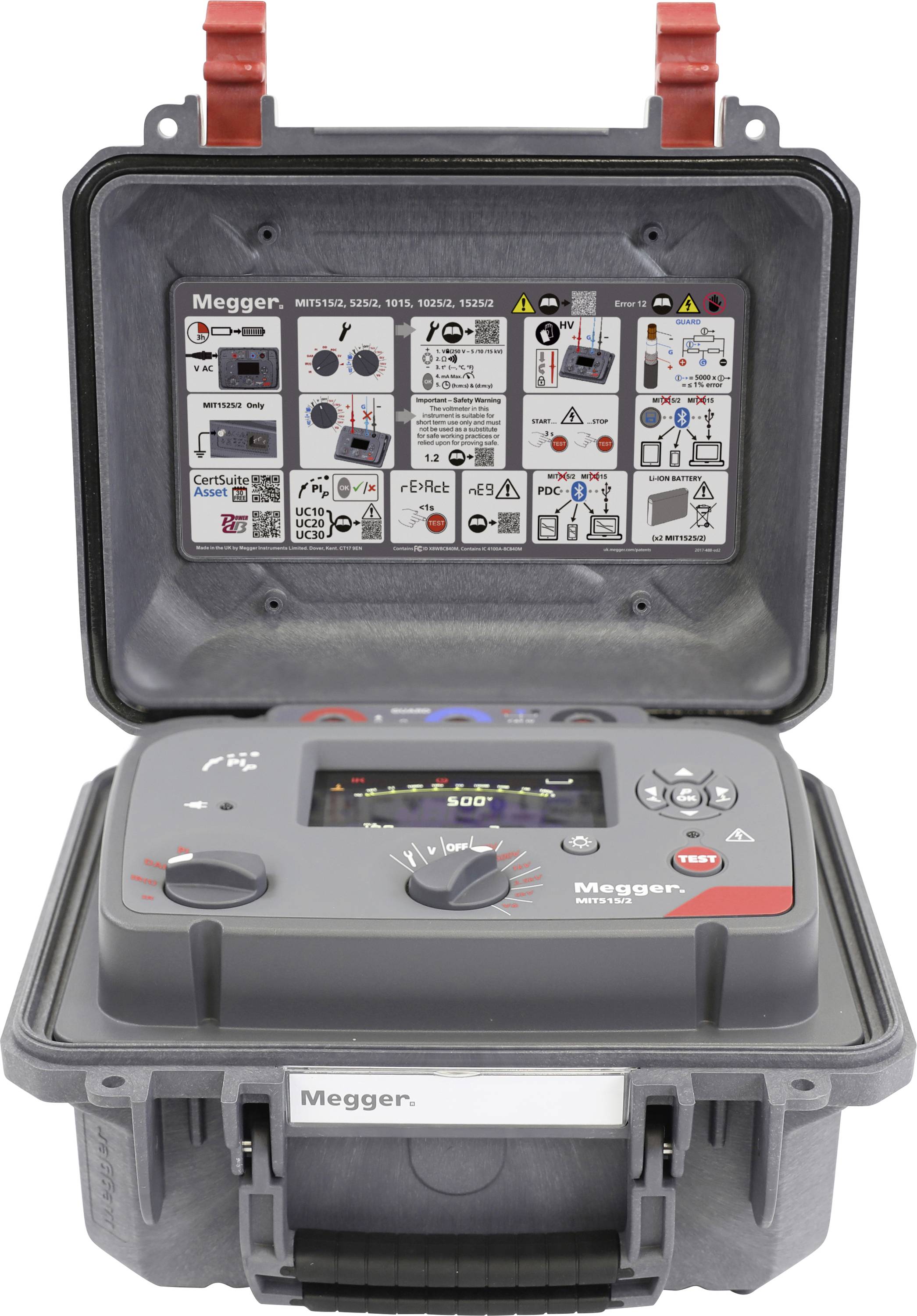

A digital insulation tester with a screen displaying measurements, enclosed in a protective case with illustrated instructions on the lid.

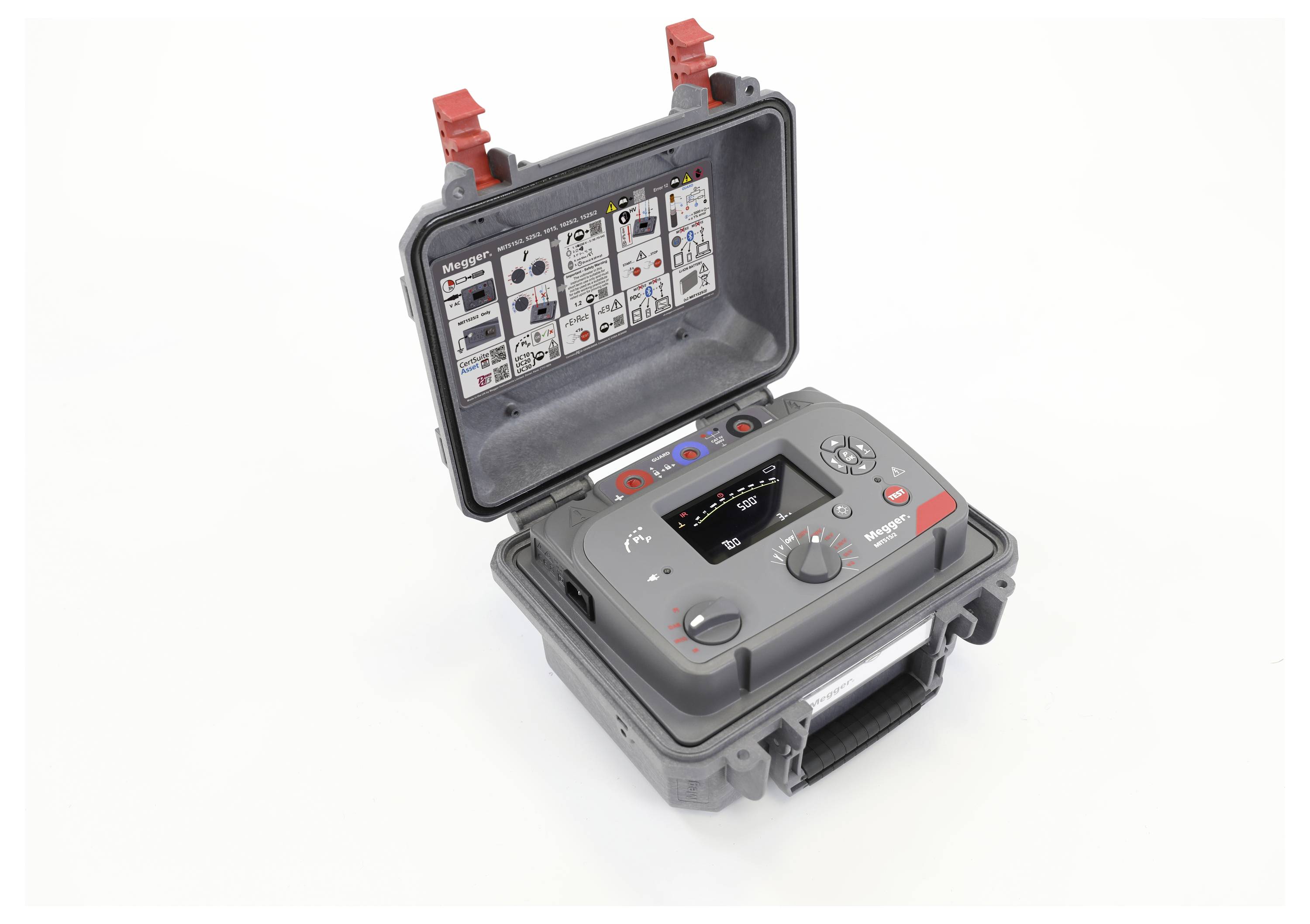

A portable electrical testing device with screen and control knobs inside a rugged case, displaying various measurement options for field diagnostics.

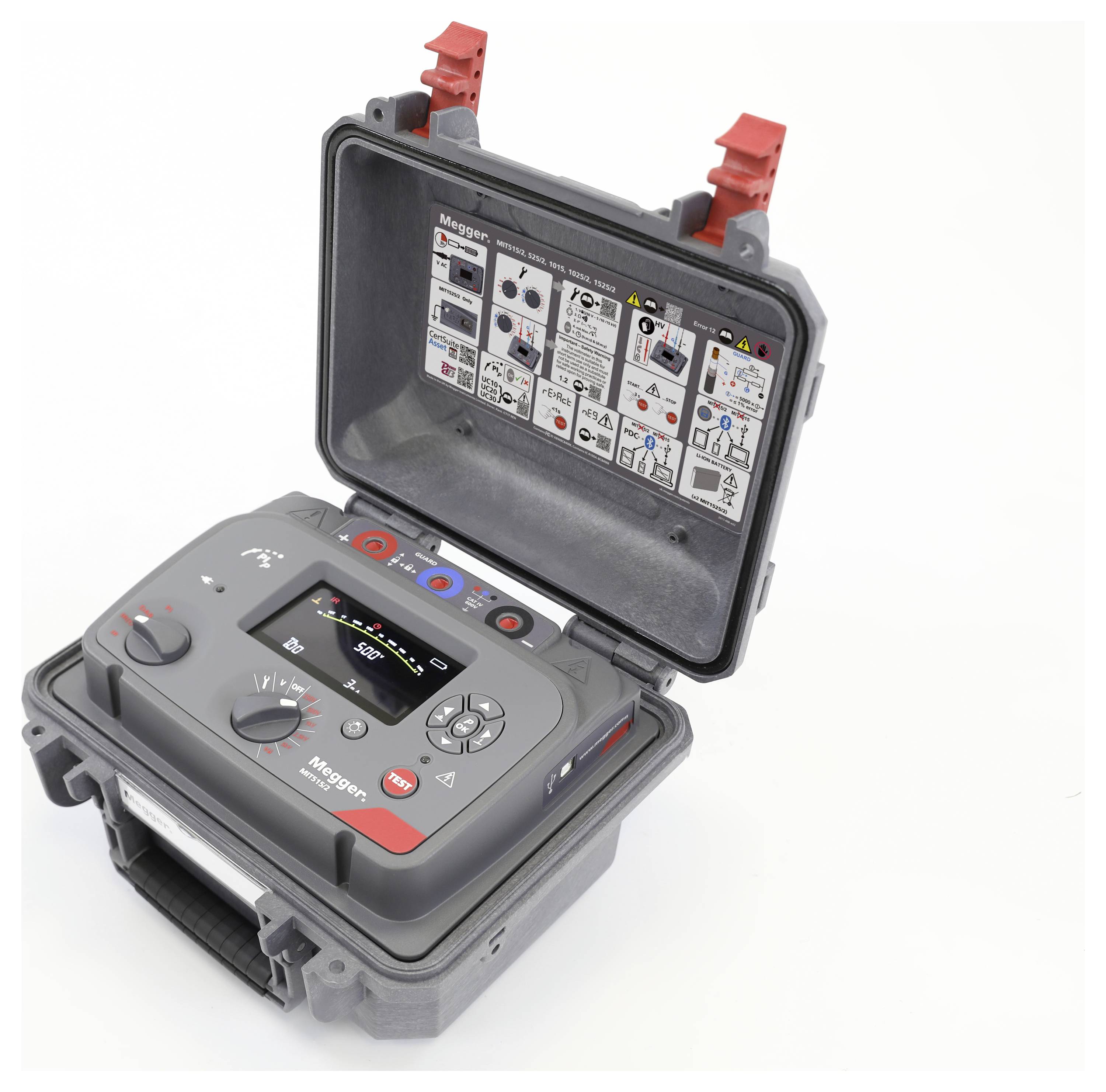

A portable electrical testing device with an open lid showing control dials, a digital display reading '500 V', and instruction labels inside.

1/3

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

MIT515/2-EU ESSENTIAL 5KV IRT 2024 PIP

Double case
Voltage warnings
Test Leads
The complete CertSuite Asset package
Non-removable test terminals
Pre-configured diagnostic tests

Technical specifications

High performance guard connection
IR
IR(t)
PI Polarisation index
PI Predictor
DIELECTRIC absorption ratio

Product type: Insulation tester

Test voltage: 5000 V
10000 V

Reading type: Insulation resistance

: Manufacturer's standards (no certificate)

Reading range - resistance: 10 kΩ to 15 TΩ

Interfaces: USB
Bluetooth®

: IP40
IP65 (closed)

Dim: (L x W x H) 31.5 x 28.5 x 18.1 cm

Weight: 4.5 kg

Display type: Digital

Max. frequency: 65 Hz

Min. frequency: 45 Hz

Frequency range: 45 Hz - 65 Hz

Insulation resistance (max.): 15 TΩ

Voltage reading range (max.): 660 V AC
660 V DC

Voltage reading range (min.): 30 V AC
30 V DC

Reading category: CAT IV 600 V

Width: 28.5 cm

Height: 18.1 cm

Length: 31.5 cm

Documents & Downloads

Datasheet

Datasheet 3451609 Megger MIT515/2-EU ESSENTIAL 5kV IRT 2024 PIP Insulation tester 5000 V, 10000 V 15 TΩ

Information

Test Summary Report 3451609 Megger MIT515/2-EU ESSENTIAL 5kV IRT 2024 PIP Insulation tester 5000 V, 10000 V 15 TΩ

Security datasheet

Security datasheet 3451609 Megger MIT515/2-EU ESSENTIAL 5kV IRT 2024 PIP Insulation tester 5000 V, 10000 V 15 TΩ

Description

RE-Act mode for improved accuracy and safety
PI-Precision function (PIP)
Measures up to 15 TΩ
Noise suppression up to 3 mA
Unique Dual casing design – extra protection for the user
Operates with batteries or mains current
Quick rechargeable Li-ion battery
