Buy Megger MPAC-TM384 Acoustic camera -20 - 550 °C Calibrated to Manufacturer's standards (no certificate)

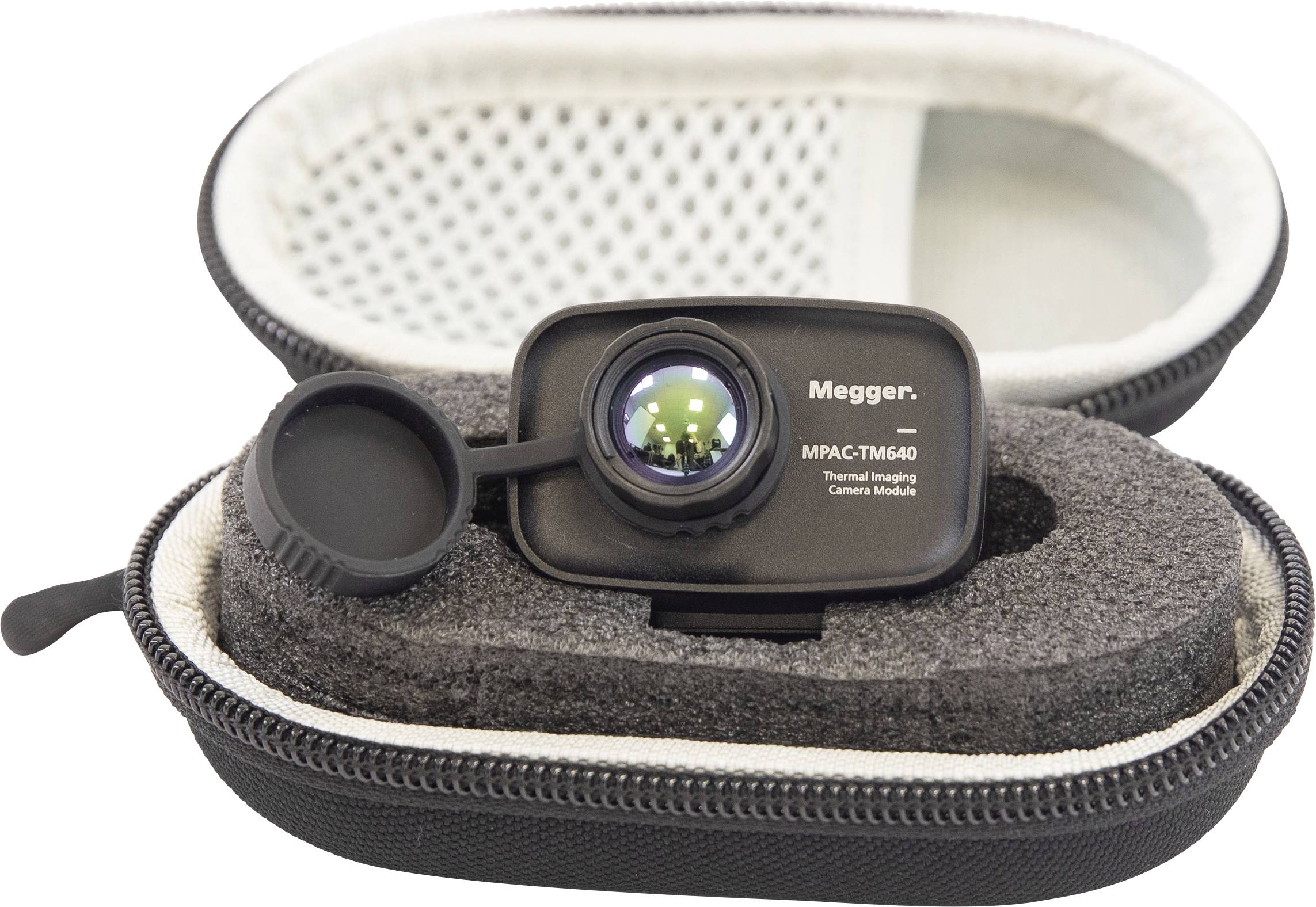

'Megger MPAC-TM640 Thermal Imaging Camera Module' displayed with its protective case, showcasing the lens and protective cap.

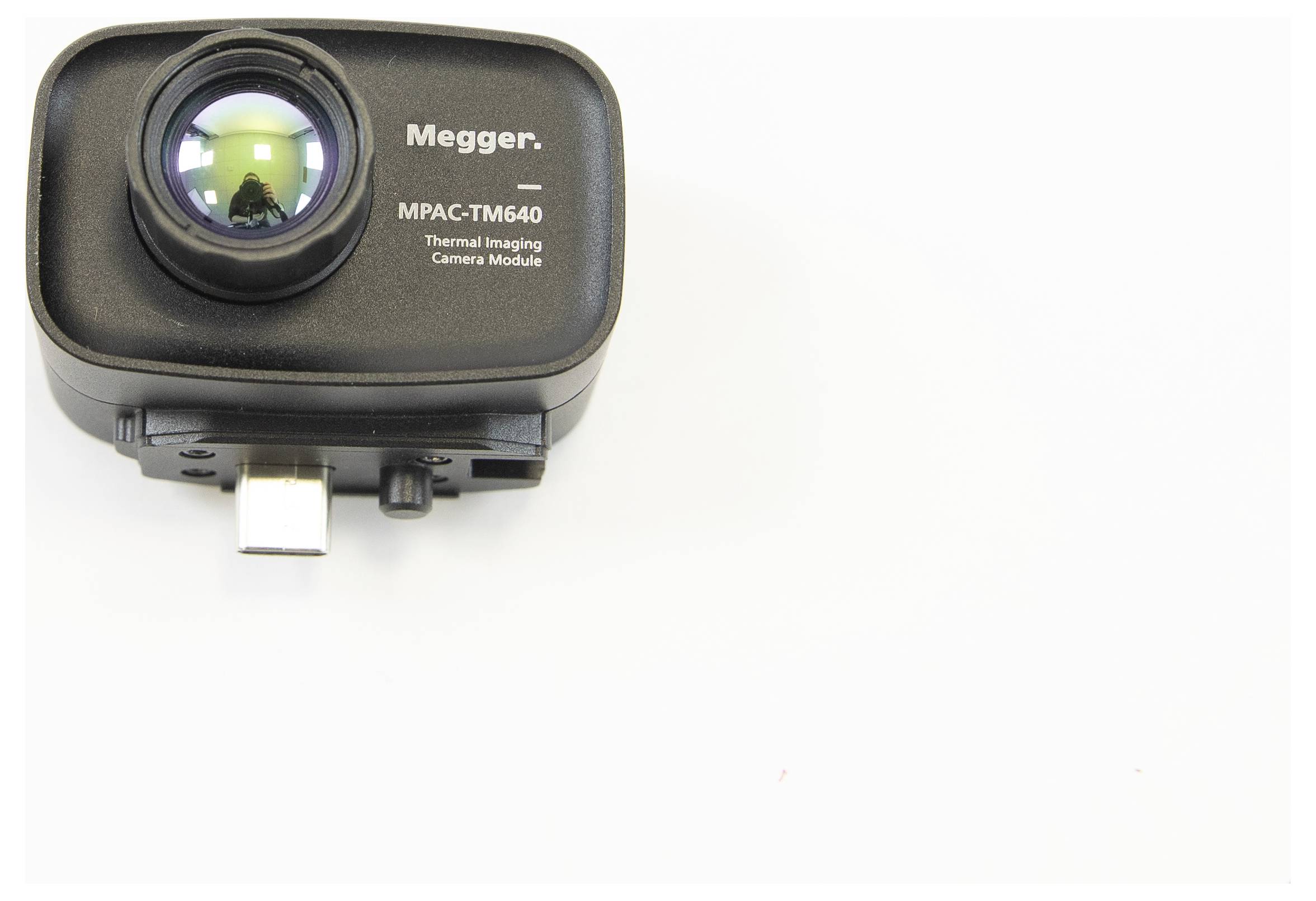

A close-up image of a Megger MPAC-TM640 thermal imaging camera module with a lens and USB connector, on a plain white background.

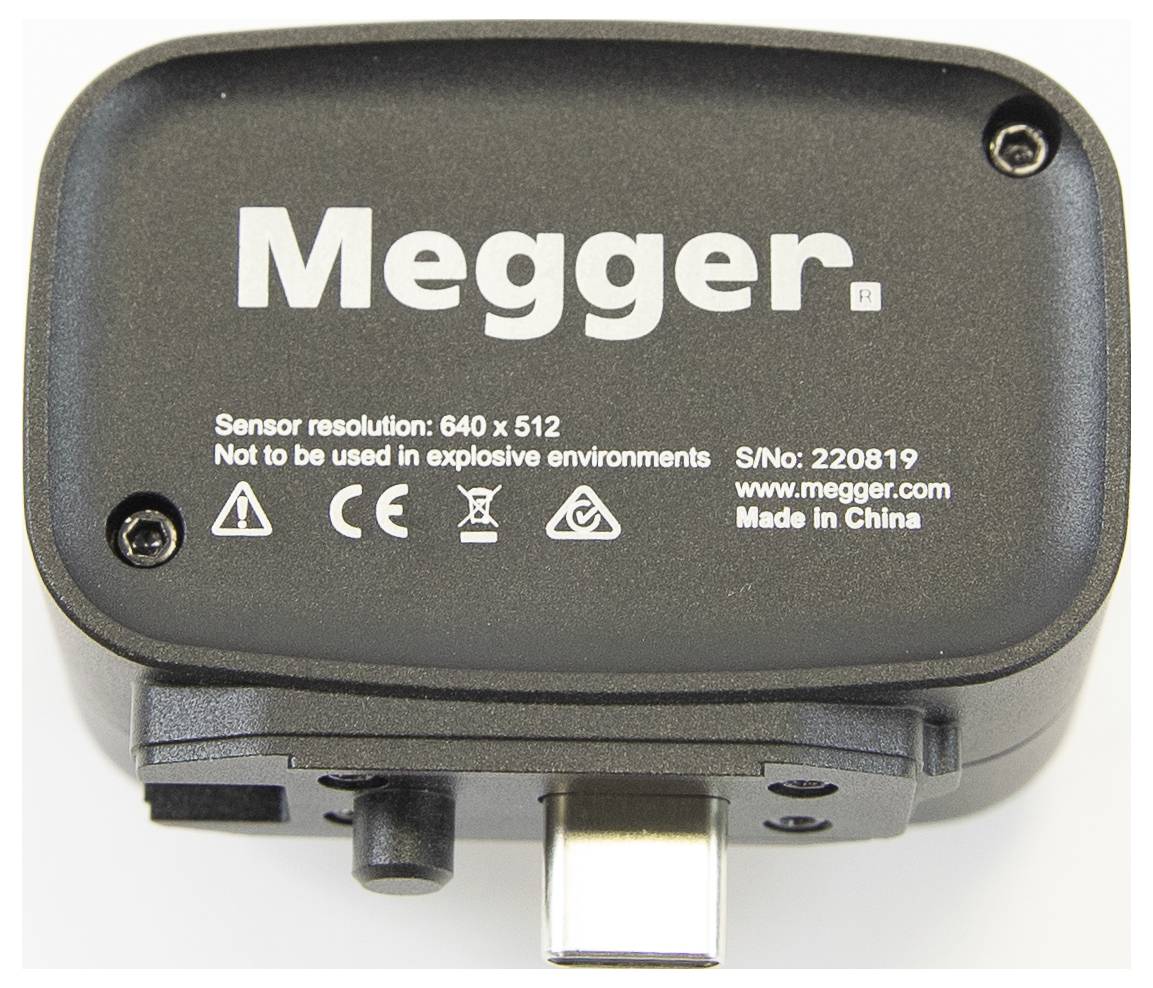

A black device labeled 'Megger' with sensor resolution 640 x 512. Warnings include 'Not to be used in explosive environments'; made in China.

1/3

Datasheet (PDF)

Available soon

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 1,987.39 / piece)

€ 1,987.39

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Thermo module for MPC208, 384 x 288 thermal resolution

384 x 288 thermal resolution
Plug-and-play integration with MPAC208
Simple USB-C key connection
Thermal reporting using Analyst software
Robust aluminium enclosure

Technical specifications

Adds thermal data to acoustic imaging
1x to 6x digital Zoom
Material: Aluminium

Reading range: -20 to 550 °C

Product type: Acoustic camera

Unit of measurement: Temperature

Reading range: -20 - 550 °C

Accuracy: 3 %

Dim: (L x W x H) 35 x 50 x 42 mm

Resolution: 384 x 288 p

Weight: 56 g

Reading range (max.): 550 °C

Reading range (min.): -20 °C

Width: 50 mm

Height: 42 mm

Length: 35 mm

: IP53

Power supply (details): 5 V

: Manufacturer's standards (no certificate)

Documents & Downloads

Datasheet

Datasheet 3639739 Megger MPAC-TM384 Acoustic camera -20 - 550 °C Calibrated to Manufacturer's standards (no certificate)

User & Safety Instructions

User & Safety Instructions 3639739 Megger MPAC-TM384 Acoustic camera -20 - 550 °C Calibrated to Manufacturer's standards (no certificate)

Description

The MPAC-TM384 and MPAC-TM640 thermal modules are designed for use with Megger's MPAC208 acoustic imaging camera. They enable the user to take thermal imaging as well as the existing acoustic imaging. The thermal modules are connected to the MPAC208 via a simple encoded USB-C connector on the top of the camera. The MPAC firmware already supports the use of both modules, so no further setup is required. The MPAC-TM384 includes a comprehensive 384 x 288 heat sensor. Both devices can generate high-resolution thermal images and capture all temperature data in the entire image. The MPAC208 user interface can be used to set relevant parameters to improve the accuracy of the measurements and to record important details about the measurement object. A x6 digital Zoom is also available to better locate problems.All thermal images and videos taken with the MPAC-TM modules can be imported into the Analyst software along with the acoustic data for further analysis and detailed reports.
