Buy Megger MPAC208 Acoustic camera 0.3 - 200 m Calibrated to Manufacturer's standards (no certificate)

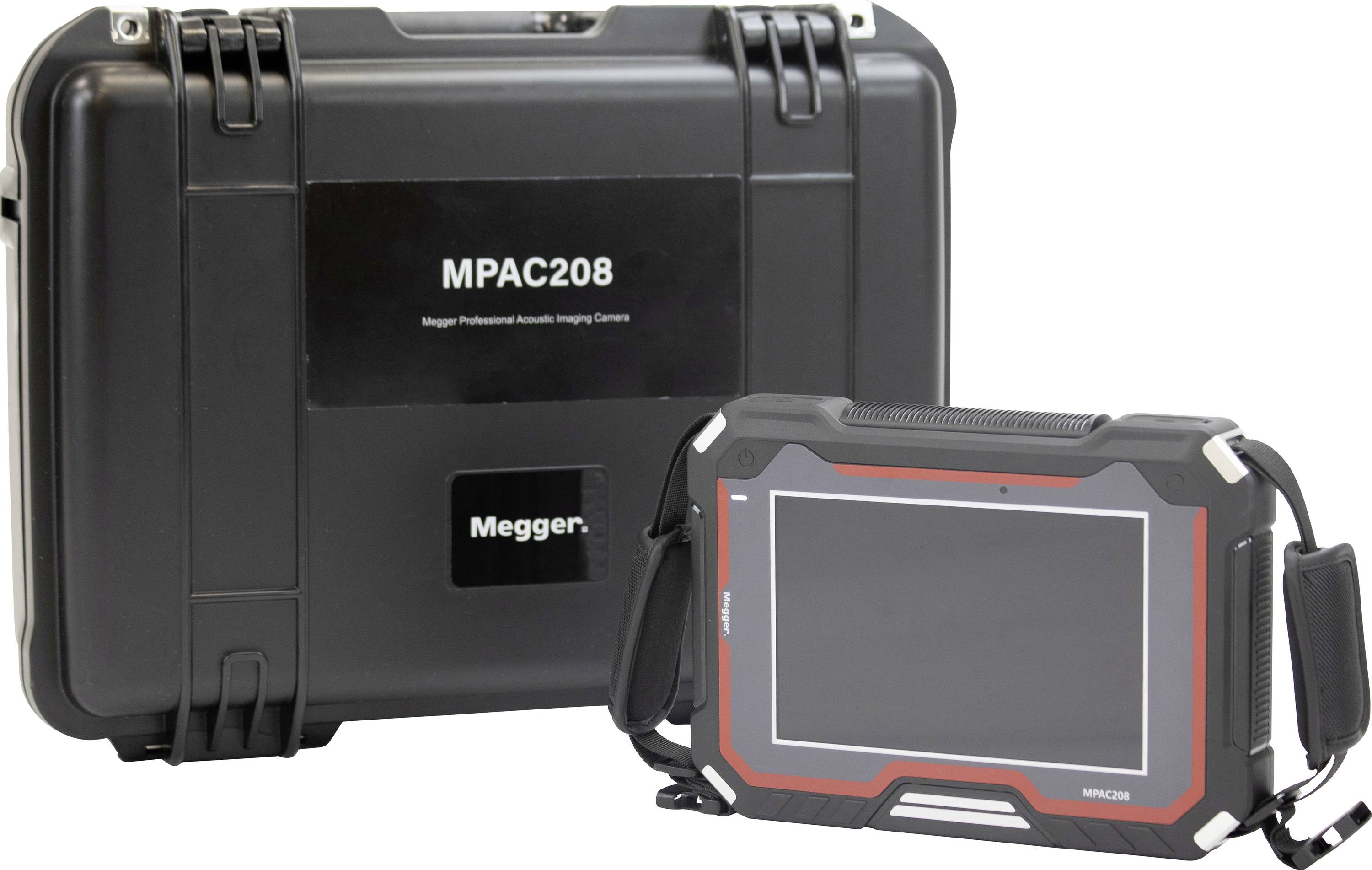

'MPAC208 Megger Professional Acoustic Imaging Camera' showing a black protective case and a handheld device with a screen and controls.

A rugged tablet with a robust frame, red accents, handle grips, and visible 'Master' branding on the side.

A handheld device with straps, displaying a graphical interface that includes charts, readings for leakage, current, and discharge capacity.

'MPAC208 digital device showing a display with measurements and graphs for test results; rugged design and sturdy handles.'

A rugged handheld electrical testing device with straps, touchscreen, and 'Megger' branding, used for testing and diagnostic purposes.

A handheld electronic device with a large screen and shoulder straps, branded 'Megger', possibly used for testing or diagnostics.

A rugged tablet with a thick protective casing and straps attached, suitable for industrial or outdoor use.

A handheld diagnostic device with a touchscreen interface displaying a menu for adjusting dynamic range settings, labeled from 0.5dB to 60dB.

A rugged tablet with protective casing and shoulder straps, designed for industrial or outdoor use.

Electrical equipment with a digital infrared interface on screen, showing graphs and heatmap data against a cloudy sky.

'Industrial facility with equipment; infrared camera detects energy leaks; shows decibel levels and leak rates. Date: 02/06/2023.'

Thermal image of a mechanical component showing a hotspot, indicating potential overheating, with a sound level meter reading '38.48 dB'.

A handheld device screen displays industrial equipment with data and charts, indicating monitoring or diagnostic activities in a factory setting.

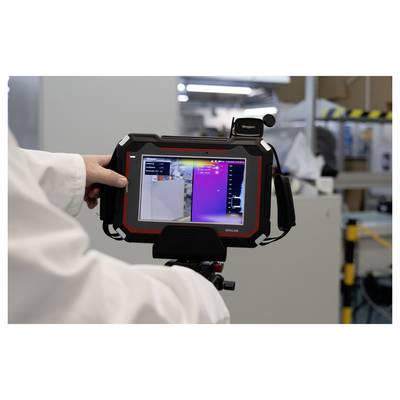

A person in a lab coat holds a thermal imaging device displaying temperature variations on a screen in an industrial setting.

A technician operates a black and red handheld device, possibly for measuring or assessing equipment, in a laboratory setting.

A person holds a handheld device displaying various data graphs and a camera feed in a tech environment.

A person in a lab coat holds a tablet displaying a factory scene, indicating use of augmented reality technology in a manufacturing environment.

A person holds a tablet in front of an industrial refinery, likely capturing data or using it as a guide for inspection purposes.

Person holding a handheld device with the screen displaying technical data and graphs, standing in front of industrial pipes and stairs.

1/19

Datasheet (PDF)

Available soon

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 17,368.91 / piece)

€ 17,368.91

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

MPAC208 Megger Professional Acoustic Camera

Precise leakage detection
Extended electrical inspection
Detection of mechanical faults
Leakage Rate Assessment with Quantification
Noise suppression with focus function
Optional thermography modules
Visualisation via acoustic spectrograms
Time range diagram
Software for acoustic analysis
Field upgradeable firmware
Guidance with SoundScan™
Conversion of ultrasound into audible tones

Technical specifications

Measured variable: Ultrasound pattern (sound waves), sound pressure level (dB), temperature (with optional thermo-module), leakage rate
Real-time estimation of leakage volume and economic losses
SoundScan™ technology for direction guidance to the noise source
Focus function for noise suppression
Battery life: 10 hours (by 2 x 5 hours battery sets)
Operating system: Android
Built-in memory with 64 GB memory, microSD (up to 256 GB)
Data transfer via WLAN, USB-C memory stick, Bluetooth®, USB-C cable,
MicroSD card (TF)

Reading range: 2000 to 100000 Hz

Product type: Acoustic camera

Unit of measurement: Temperature

Reading range: 0.3 - 200 m

Dim: (L x W x H) 51 x 270 x 190 mm

Resolution: 1920 x 1200 p

Weight: 1.4 kg

Weight, information: incl. rechargeable battery

Reading range (max.): 200 m

Reading range (min.): 0.3 m

Reading category: CAT II
CAT IV

Width: 270 mm

Height: 190 mm

Length: 51 mm

: IP54

Power supply (details): 7.2 V

: Manufacturer's standards (no certificate)

Documents & Downloads

Datasheet

Datasheet 3639736 Megger MPAC208 Acoustic camera 0.3 - 200 m Calibrated to Manufacturer's standards (no certificate)

User & Safety Instructions

User & Safety Instructions 3639736 Megger MPAC208 Acoustic camera 0.3 - 200 m Calibrated to Manufacturer's standards (no certificate)

Description

The Megger MPAC208 professional acoustic imaging camera is a state-of-the-art diagnostic tool for detecting and analyzing ultrasound patterns that enables fast and reliable identification of gas leaks, mechanical defects and electrical partial discharges in a variety of industrial environments. With advanced functions for localizing and processing noise, this device optimizes the work processes during maintenance and enhances the safety.
