Name: Megger PAT120-DE Calibrated to (ISO standards)
Brand: Megger
SKU: 1411735

A portable testing device for measuring the electrical safety of equipment. Displays measurement values on the screen. Includes test cables.

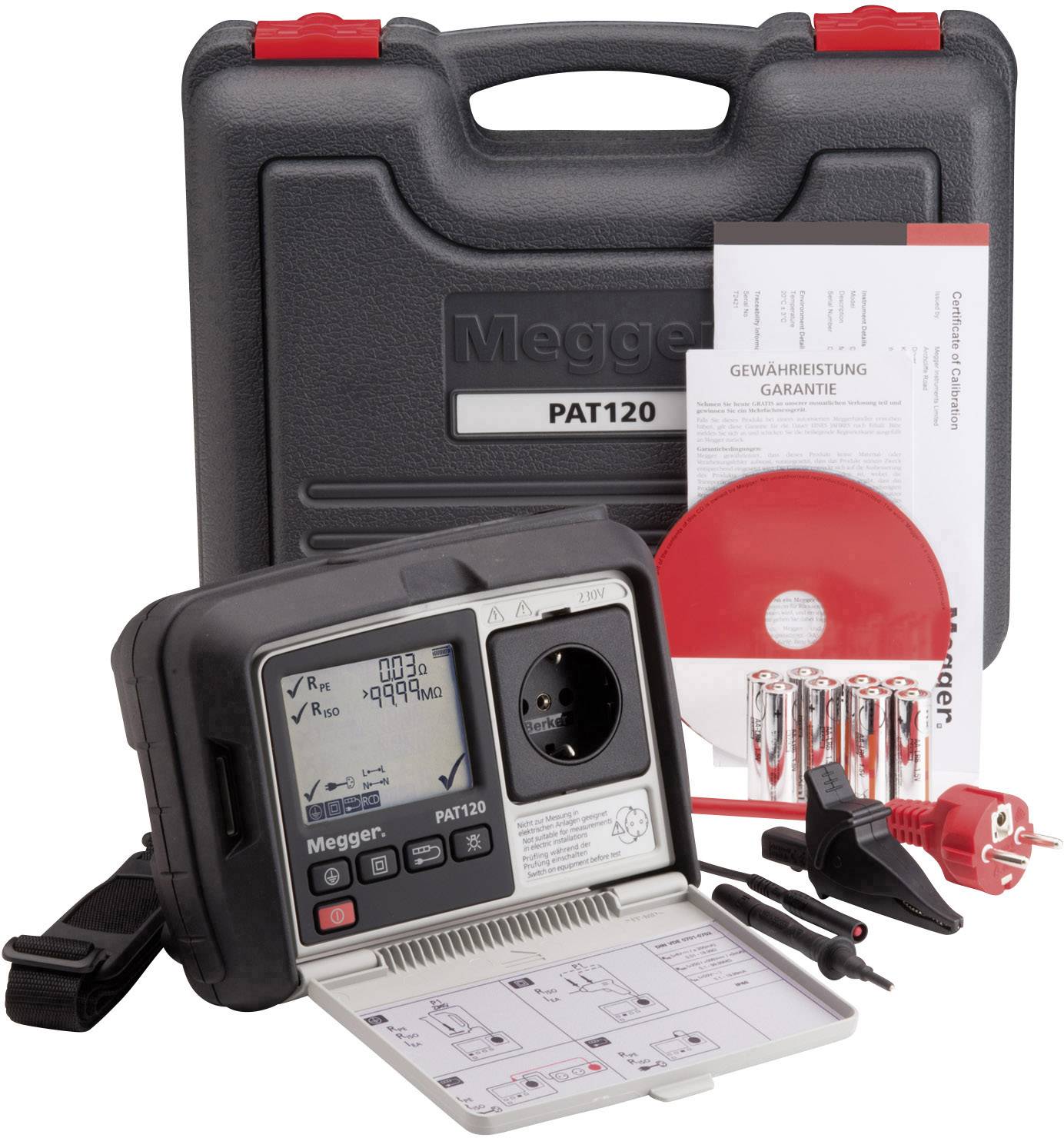

Portable testing device for electrical safety checks, with accessories including test leads, batteries, instructions, and red carrying case.

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

PAT120, DEVICE TESTER ACCORDING TO DIN VDE 0701-0702, BGV A3, EN 62638

Small and compact device testerBattery-operated, no mains connection requiredRobust housing with rubber reinforcement and protective cover for display protectionPre-defined test sequences for SK I, SK II and extension cablesUnique pass/fail indicatorQuick-help card in the device cover

Technical specifications

Measurement of earthing conductor resistance with ± 200 mA (DC)
Insulation resistance measurement with 500 V and 250 V (DC)
Measurement of leakage current with approx. 30 V (AC)
Cable testing (short circuit and interruption-L/N)

: ISO standards

Reading category: CAT II 300 V

Dim: (L x W x H) 148 x 203 x 78 mm

Weight: 1.15

Width: 203 mm

Height: 78 mm

Length: 148 mm

Type: PAT120-DE

Memory: -

Display (details): LC display with display lighting (Backlight), display of measurement values, limits, symbols for passed/not passed

Interfaces: -

Standards: DIN VDE 0701-0702, BGV A3, EN 62638 DGUV Rule 3

Documents & Downloads

Datasheet

Datasheet 1411735 Megger PAT120-DE Calibrated to (ISO standards)

User & Safety Instructions

User & Safety Instructions 1411735 Megger PAT120-DE Calibrated to (ISO standards)

Information

Information 1411735 Megger PAT120-DE Calibrated to (ISO standards)

Description

With this device tester you can carry out quick and comfortable independant tests according to DIN VDE 0701-0702 (DGUV regulation 3, BGV A3). With this battery-operated device tester, you can carry out the basic test, such as protective conductor resistance, insulation resistance and replacement leakage current, even without mains voltage. Pre-defined test sequences make it easier for the tester to select the test sequence, and this allows quick assignment of the test samples according to SK I or SK II. There is also a test procedure for extension cables and line rollers, so that these test pieces that occur very frequently in practice can be tested very quickly and easily. The device tester PAT120 can be operated with batteries as well as with rechargeable batteries.

This text is machine translated.

Features

Automatic test sequence for SK I, SK II and extension cablesLC display with display illumination (backlight)Display of measured values, limit values, symbols for passed/failedOnly one probe connection for protective conductor and insulation resistance

Scope of delivery

Hard caseShoulder strap1 piece test lead with test tip and alligator clipAdapter for extension cablesCalibration certificateQuick start guide (in the lid)User guide on CD.8 batteries 1.5 V (AA, IEC LR6)
