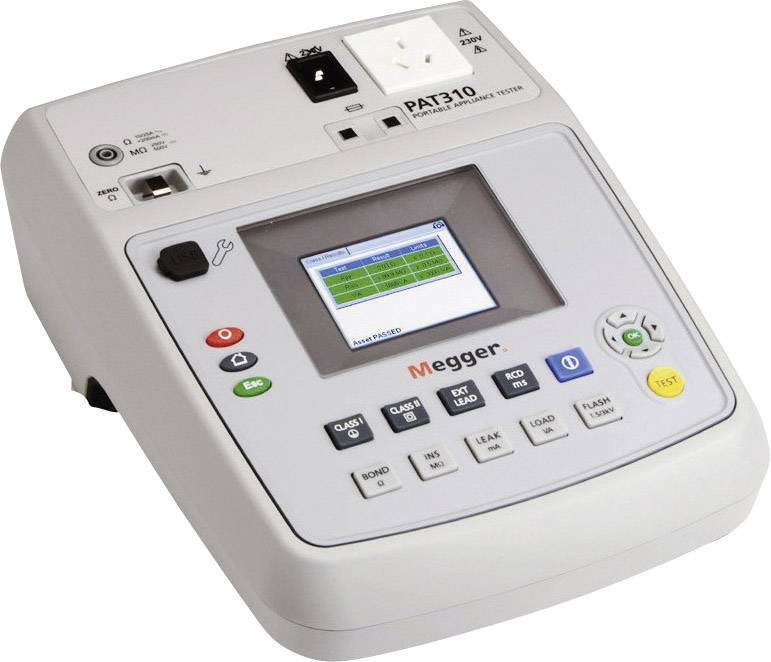

Megger PAT310-EU Equipment tester VDE standard 0701-0702
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 1,508.40 / piece)
€ 1,508.40
plus VAT.
Only 1 Piece(s) available
Highlights & Details
PAT 310, device tester according to DIN VDE 0701-0702, BGV A3, EN 62638
- Manual or automatic test sequence
- Pre-test sequences, simple user navigation
- High-resolution backlit color display
- Direct testing of PRCDs and Extension Brakeline
Technical specifications
- Earthing conductor test 200mA DC
- Test lead compensation
- Insulation test 250V and 500V
- Leakage current measurement method
- Protective conductor current measurement according to the differential current measurement method
- Contact current measurement after the direct measurement method
- Test with power measurement
- Testing of mains connection cables and extension cables
- Testing of mobile FI/RCD circuit breaker (GFCI) with 30 mA.
- Product type
Equipment tester
Manufacturer's standards (no certificate)
- Reading category
CAT II 300 V
- Interfaces
none
- Dim
(L x W x H) 320 x 255 x 120 mm
- Weight
2.7 kg
IP40
- Reading range (VDE)
Insulation resistance
Leakage current
Differential current
Touch voltage
Voltage
Frequency
Power
Continuity
- DIN standard
DIN EN 62638
- Display type
Digital (LCD)
- Width
255 mm
- Height
120 mm
- Length
320 mm
- Test procedure
automated
- Voltage supply
230 V/AC
- Memory
No
- Type
PAT310-EU
- VDE standard
0701-0702
- Features
RCD/FI testing
- Display (details)
Color display, beleuchtetet
- Reading category
CAT II 300 V
- Standards
DIN VDE 0701-0702, BGV A3, EN 62638
Documents & Downloads
Datasheet
Datasheet 556116 Megger PAT310-EU Equipment tester VDE standard 0701-0702
User & Safety Instructions
User & Safety Instructions 556116 Megger PAT310-EU Equipment tester VDE standard 0701-0702
Description
The PAT 300-series are compact and mobile test equipment for unit tests according to DIN VDE 0701-0702 with manual and automatic test sequence. Via Test buttons are pre-defined test sequences quickly and easily accessible, the device displays the test results clearly, the logging is done manually. Test sequences for SK I, SK II, extension cables and PRCDs, are available, the limit values can be adjusted. The PAT 300-series was developed for customers in the service, repair and maintenance, which all measurement function in the device testing and measured values manually to document it.
This text is machine translated.
This text is machine translated.
Features
- Automatic and manual test sequences
- Good/Bad evaluation for immediate identification faulty devices
- Buffer storage up to 5 min for quick-start function in case of relocation
- Only a probe connection for protective conductor, insulation resistance and contact current.
Scope of delivery
- Bag
- Test lead with probe tip and alligator clip
- Adapter for extension cables
- Calibration certificate
- Quick guide
- User guide on CD.
