Megger PVK350 PV tester set

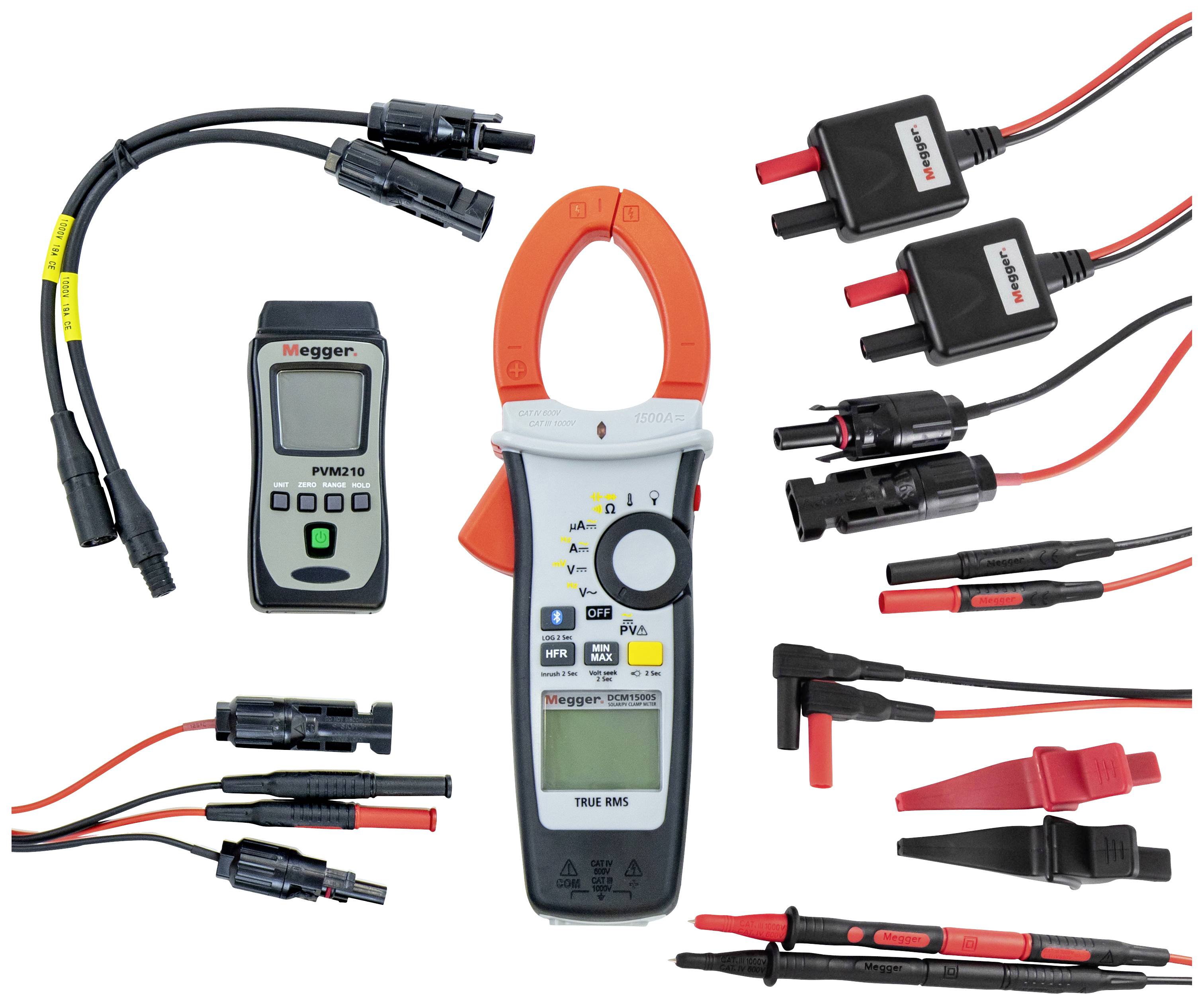

If a photovoltaic system is installed, tested and commissioned, additional equipment is required. This supplements the usual testing devices of electricians. The photovoltaic kit PVK350 contains this additional equipment in the form of the AC/DC solar measuring device with clamping jaws DCM1500S and the radiation strength measuring device PVM210. In addition, a number of special PV measuring leads are available. All this is delivered in a single hard-shell transport protective case.

Radiation measurement device PVM210
Display: 3¾-digit LCD
Ranges: 1999 W/m²/634 BTU/(ft²*h)
Accuracy: Usually within ± 10 W/m2/ ±3 BTU/(ft²*h)
Resolution: 0.1 W/m²/0.1 BTU/(ft²*h)
Dimensions (H x W x D) 134 x 48 x 27 mm
Weight (approx.) 90 g
Batteries 2x AAA

Solar-measuring device DCM1500S
Display: 6000 levels of quantization
Voltage (DC) 1000 V
Voltage (AC) 1000 V
PV voltage (DC): 2000 V (when using PVHV1 or PVHV2 line sets)
PV voltage (AC): 1500 V (when using PVHV1 or PVHV2 line sets)
DC mV 600.0 mV
AC/DC μA range 4000 μA
CURRENT (DC/AC) 1500 A.
Frequency 10.0 kHz
Resistance 600.0 kΩ
Diode 1.5 V
Capacity 1000 μF
Temperature -40 °C to +400 °C.

PV-Measuring leads
(4 mm-) PVHV1 lines 2000 V DC/1500 V AC
PVHV2-, (MC4PV-) LINES 2000 V DC/1500 V AC
Maximum current: 19 Ampere
Max voltage 1000 V
