Megger TC256 IR camera -20 up to 550 °C 256 x 192 Pixel
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 511.76 / piece)
€ 511.76
plus VAT.
Only 2 Piece(s) available
Highlights & Details

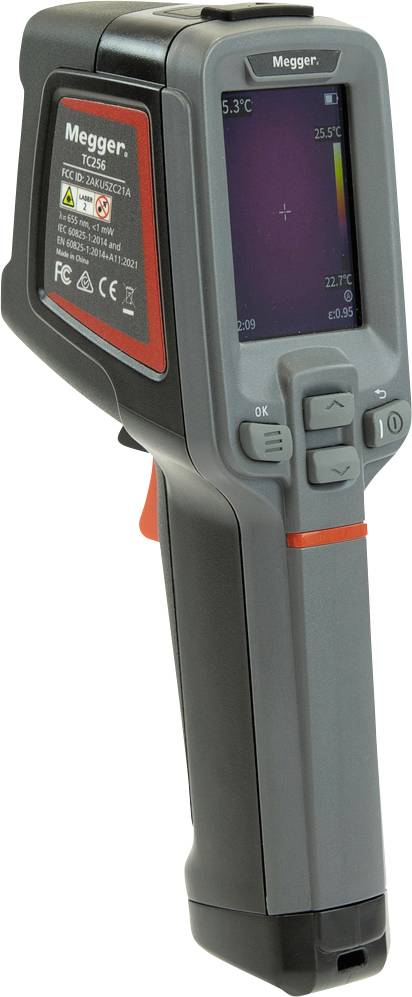

TC256 thermal image camera
- Thermal imaging camera
- Temperature reading range -20 up to 550 °C
- 256 x 192 Pixel Bolometer matrix
- Thermal sensitivity 45 mK
Technical specifications
- Type
TC256
- Product type
IR camera
- Bolometer array
256 x 192 Pixel
- Interfaces
USB C®
- Temperature reading range (max.)
550 °C
- Colour schemes
6
- Temperature reading range (min.)
-20 °C
IP54
- Thermal sensitivity
45 mK
- Dim
(L x W x H) 76 x 61.5 x 194 mm
- Weight
375 g
- Basic accuracy
2 %
- Accuracy ± °C
2 °C
- Temperature reading range
-20 up to 550 °C
- Width
61.5 mm
- Height
194 mm
- Length
76 mm
- Power supply (details)
Rechargeable lithium-ion battery (not removable), 11 hours operating time, charging via type C (90% in 2.5 hours, charging possible during operation)
Manufacturer's standards (with certificate)
Documents & Downloads
Datasheet
Datasheet 3805510 Megger TC256 IR camera -20 up to 550 °C 256 x 192 Pixel
User & Safety Instructions
User & Safety Instructions 3805510 Megger TC256 IR camera -20 up to 550 °C 256 x 192 Pixel
Description
The TC256 thermal imager has a resolution of $256\time192$ and uses the latest technology to improve image detail and reduce image noise, providing a clear picture in real time. The TC256 is a powerful and user-friendly infrared camera with professional functions such as a 2 MP camera for visible light, video streaming and recordings, WLAN and OTA upgrade.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Wrist strap
- Battery charger (with adapters for UK, EU, AU)
- Charging cable/data cable USB-C
- Calibration certificate
- Quick guide
- Hard case
