MENNEKES 13225 13225 CEE plug 125 A 5-pin 400 V 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

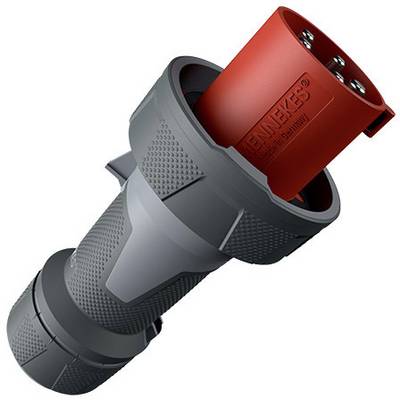

Mennekes PowerTOP Xtra 13225 CEE plug 5P 125 A 400 V IP67
- Screw contact
- Rubber gripping surfaces
- IP67
Technical specifications
- Product type
CEE plug
- Nominal voltage
400 V
- Nominal current
125 A
- Nominal current - rounded value
125 A
- Type A
Screws
- Type B
CEE plug (5-pin, 125 A)
- Adjustment range
Time Position 6 h
- Cores
5
IP67
- Standards
Voltage according to EN 60309-2
- Factory colour
Grey
Red
Black
- Dim
(L x W x H) 290 x 130 x 49 mm
- Length
290 mm
- Width
130 mm
- Height
49 mm
- Content
1 pc(s)
- Number of pins
5
- Weight
1.52
3013
Gland nut
5
Plastic
125 A
100
Screwed terminal
Straight
IP67
FALSE
6 h
Red
400 V (50+60 Hz) red
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1760775 MENNEKES 13225 13225 CEE plug 125 A 5-pin 400 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1760775 MENNEKES 13225 13225 CEE plug 125 A 5-pin 400 V 1 pc(s)
Description
CEE plug IP67 dust-proof and protected against temporary submersion in water. With Time Position 6 h.
This text is machine translated.
This text is machine translated.
Features
- Frame clamps
- Highly heat-resistant contact carrier
- Nickel-plated contacts
- Gland with sealing
- Strain relief and cable bend protection
- Casing with thread lock
- Fuse slider for housing and gland
