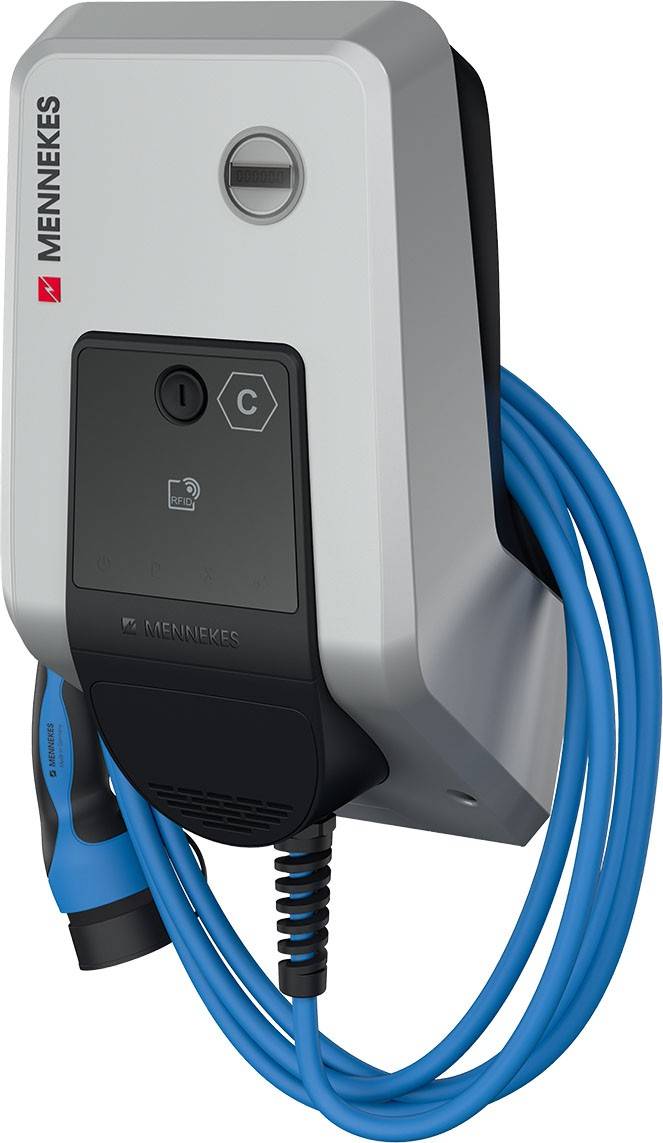

MENNEKES 1349201 Wallbox Type 2 No. of ports 1 x 11 kW RFID
EAN:
Part number:
Item no:
Technical specifications
- Design connection system side: 3-phase
- Number of loading points: 1
- Max. Power per charging point 11 kW
- Rated connection power 11 kW
- Width 259 mm
- Height: 475 mm
- Depth: 220 mm
- Mounting type: Wall mounting
- Number of charging couplings type 2: 1
- Length of charging cable 8 m
- With house connection box (HAK): No.
- With circuit breaker: No.
- With communication interface: Yes
- With energy meter: Yes
- Access control function: Yes
- With load management: Yes
- With display: No.
- Housing material: Plastic
- Protection type (IP) IP44
- Impact strength: IK10
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Product type
Wallbox
- Authorisation
RFID
- Charger connectors
Type 2
- No. of ports
1 x
- Charging capacity
11 kW
- No. of phases
3-phase
- Cable length
8 m
IP44
- Factory colour
Multicolour
Manufacturer's declaration
- Width
259.00 mm
- Height
475.00 mm
- Depth
220.00 mm
- Weight
0
- Material
Plastic
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3158698 MENNEKES 1349201 Wallbox Type 2 No. of ports 1 x 11 kW RFID
Description
The Wallbox AMTRON® Charge Control was specially developed for the comfortable, flexible solar charging at home and convinces with smart, future-proof technology. AMTRON® Charge Control can be intelligently networked with the home energy management system and the solar system. A later update to EEBus and the direct connection to a Smart meter gateway were also taken into account. Furthermore, pre-programmed RFID chips allow restricted access to the Wallbox. Alternatively, the AMTRON® Charge Control can also be started without authorization. Settings on the Wallbox are made simply via the web interface. Thus the charging process can be regulated, export statistics, set individual solar charging functions and create and manage different users. Company car drivers can identify their home loading operations in just a few steps and settle them with their employer. The consumption can also be read out on the outside of the device via the meter window.
