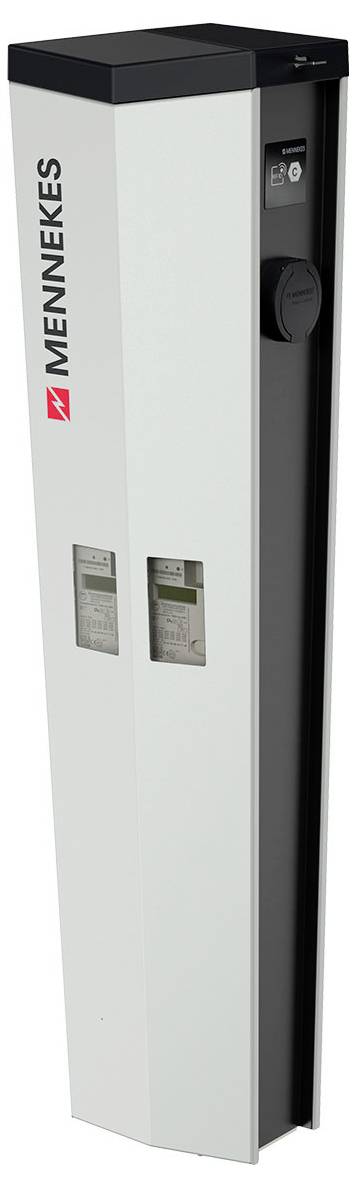

MENNEKES 140612422 Charging station
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Height: 1362 mm
- Width 352 mm
- Depth: 252 mm
- Mounting type: Floor mounting
- Protection class (IP) IP54
- Impact strength: IK10
- Material of housing: Steel
- Frequency: 50 Hz
- Input voltage 230 – .400 V
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- With display: No.
- Design connection system side: 3-phase
- Rated connection power 44 kW
- Number of loading points: 2
- Max. Power per charging point 22 kW
- Number of charging sockets type 2: 2
- With house connection box (HAK): No.
- Number of FI switches type A: 2
- Charging cable can be locked permanently at the charging station: Yes
- DC fault current detection: Yes
- Contactor contact welding detection: Yes
- With circuit breaker: Yes
- Network-compatible as Master: Yes
- Network-compatible as Extender: Yes
- Network connection via LAN: Yes
- Network-compatible via WLAN: No.
- LTE: No.
- Wireless standard 5G: No
- With energy meter: Yes
- With key switch: No.
- With integrated RFID card reader: Yes
- NFC (Near Field Communication): No.
- Static load management integrated: Yes
- Suitable for dynamic load management: Yes
- Open Charge Point Protocol (OCPP) Version: 1.6
- Plug and charge (ISO 15118): No.
- Operation and configuration via APP: No.
- Export of the load history: Yes
- Suitable for cable cross-sections of 50 mm²
- Backend included in delivery: No.
- With MID-compatible energy meter: Yes
- True-to-law: Yes
- Product type
Charging station
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3551767 MENNEKES 140612422 Charging station
User & Safety Instructions
User & Safety Instructions 3551767 MENNEKES 140612422 Charging station
Description
AMEDIO provides a strong complete package for the development of a future-ready charging infrastructure: High safety requirements, customer-friendly operation, networking capability for the implementation of requirement-oriented billing, system monitoring and load management combined in one quality solution. AMEDIO has been specially developed for companies and professionals who want to build up a charging infrastructure for employees and customers. The professional devices meet all legal requirements and are thus compliant with calibration law. The charging stations can be networked via LAN, in order thus to use the integrated MENNEKES load management. Through the integrated mobile phone modem in the Professional+ variants, a direct connection to back-end systems can be made for monitoring and billing.
