MENNEKES 14112 14112 CEE connector 63 A 400 V 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

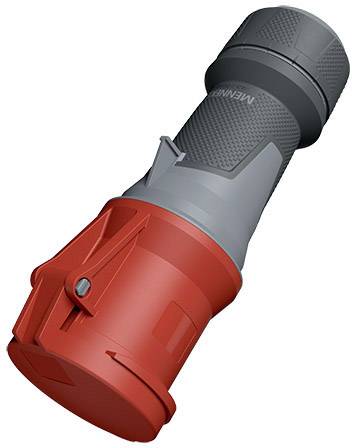

Mennekes PowerTOP Xtra 14112 CEE COUPLER 5 p 63A 400V IP44
- Screw contact
- Rubber gripping surfaces
- IP44
Technical specifications
- Product type
CEE connector
- Nominal voltage
400 V
- Nominal current
63 A
- Nominal current - rounded value
63 A
- Type A
Screws
- Type B
CEE connector (5-pin, 63 A)
- Adjustment range
Time Position 6 h
- Cores
5
IP44
- Standards
Voltage according to EN 60309-2
- Factory colour
Grey
Red
Black
- Dim
(L x W x H) 268 x 109 x 95 mm
- Length
268 mm
- Width
109 mm
- Height
95 mm
- Content
1 pc(s)
- Number of pins
5
- Weight
0
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1760787 MENNEKES 14112 14112 CEE connector 63 A 400 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1760787 MENNEKES 14112 14112 CEE connector 63 A 400 V 1 pc(s)
Description
CEE coupling. IP44 Protection against foreign objects and water splashes. With Time Position 6 h.
This text is machine translated.
This text is machine translated.
Features
- Frame clamps
- Soft Contact
- Highly heat-resistant contact carrier
- Gland with sealing
- Strain relief and cable bend protection
- Casing with thread lock
- Fuse slider for housing and gland
