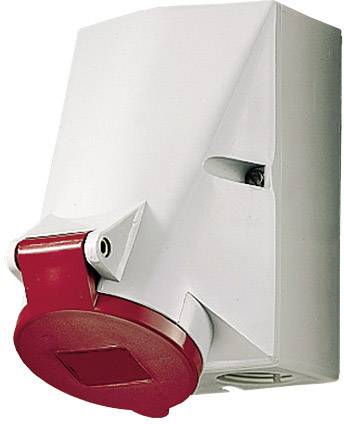

MENNEKES 20162A 20162A CEE wall socket 32 A 5-pin 400 V 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Mennekes CEE-socket 5p 32A 400V IP44
- Screw contact
- Highly heat-resistant contact carrier
- IP44 Protection against foreign objects and water splashes
Technical specifications
- Product type
CEE wall socket
- Nominal voltage
400 V
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Type A
Screws
- Type B
CEE connector (5-pin, 32 A)
- Adjustment range
Time Position 6 h
- Cores
5
IP44
- Standards
Voltage according to EN 60309-2
- Factory colour
White
- Dim
(L x W x H) 138 x 84 x 160 mm
- Length
138 mm
- Width
84 mm
- Height
160 mm
- Content
1 pc(s)
- Number of pins
5
- Weight
0
Surface mounted (plaster)
3013
5
FALSE
Plastic
Inner lying mounting
32 A
30
Screwed terminal
IP44
FALSE
6 h
Red
380-415 V (50+60 Hz) red
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1760833 MENNEKES 20162A 20162A CEE wall socket 32 A 5-pin 400 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1760833 MENNEKES 20162A 20162A CEE wall socket 32 A 5-pin 400 V 1 pc(s)
Description
CEE wall socket. IP44 Protection against foreign objects and water splashes. Screw contact. With Time Position 6 h.
This text is machine translated.
This text is machine translated.
Features
- Nickel-plated contacts
- Mounting from the inside.
- Housing bottom can be rotated 180°
