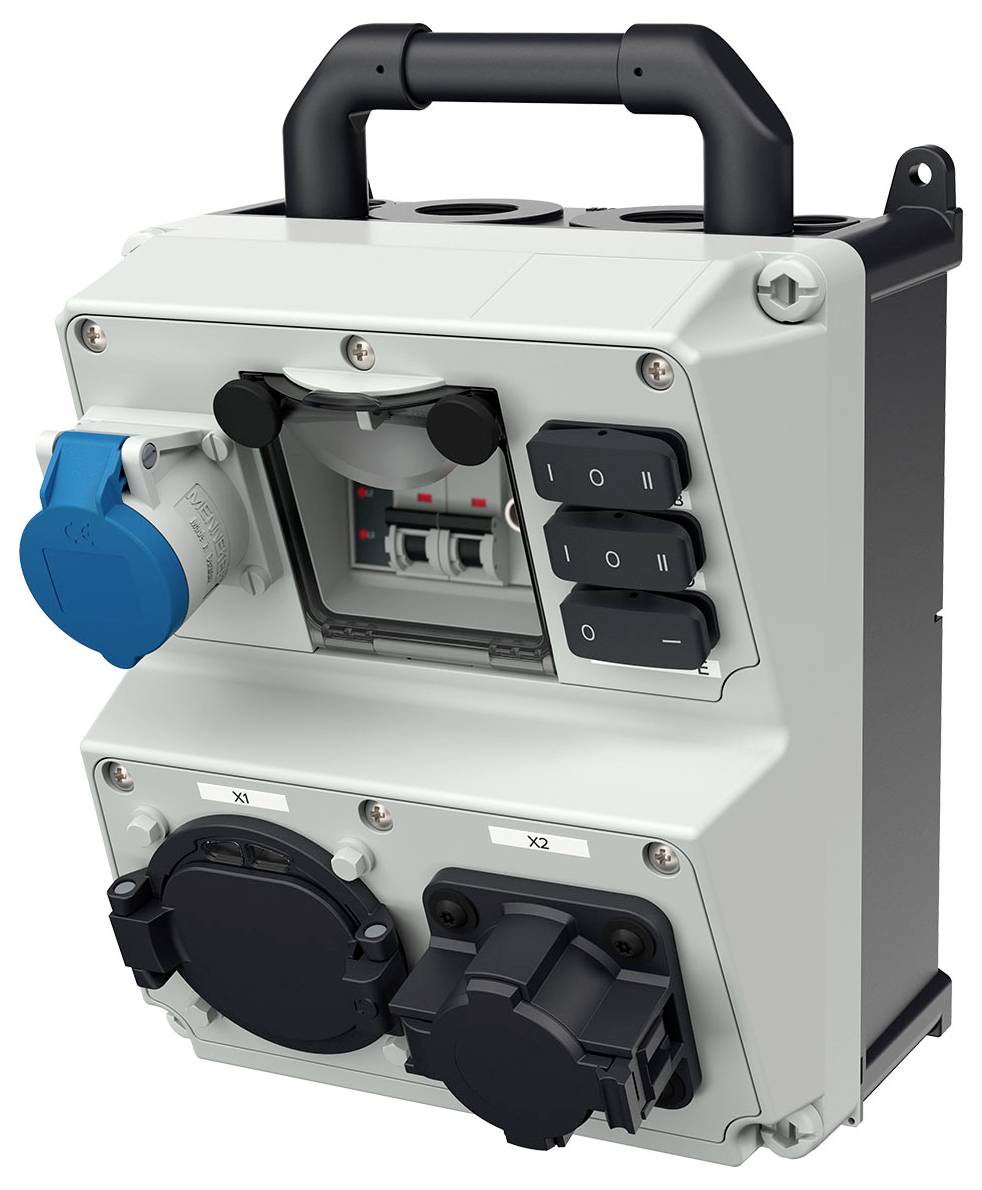

MENNEKES 320014 EMobility installation tester Type 1 & Type 2
EAN:
Part number:
Item no:
Technical specifications
- Height: 260 mm
- Width 225 mm
- Depth: 165 mm
- Design: Hand-held device
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Weight: 4000 g
- Vehicle status simulation: Yes
- Simulation conductor cross-section: No.
- Simulation residual current: No.
- Status display charging process: Yes
- Test PE connection: No.
- Measurement of resistors Charging plug device: No.
- Signal output: Yes
- Connection type 1: Yes
- Type 1 CCS connector: No.
- Connection type 2: Yes
- Type 2 CCS connector: No.
- Type 3 connection: No.
- GB connection: No.
- Connection CHADEMO: No.
- Product type
EMobility installation tester
- Charger connectors
Type 1 & Type 2
- Width
225 mm
- Height
260 mm
- Depth
165 mm
- Weight
4000 g
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3551014 MENNEKES 320014 EMobility installation tester Type 1 & Type 2
Description
The MENNEKES test box can be used to check the functionality of electronic charging stations and identify possible faults. The test box can be connected to the charging station and serves for simulation of the charging states of the electric car. In addition, the connection of the phases and the rotary field can be checked. At the integrated socket a measurement device and test device can be connected for commissioning testing and periodic testing according to the standard. This product is suitable for service personnel who are responsible for maintaining the load infrastructure.
