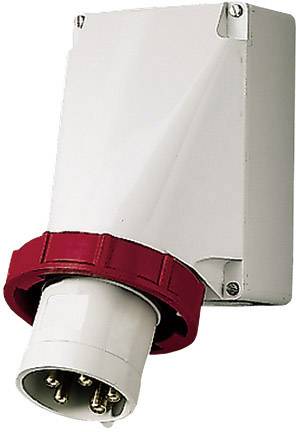

MENNEKES 361 361 CEE wall plug 63 A 5-pin 400 V 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Mennekes 361 CEE wall plug 5P 63A 400V IP67
- IP67
- Screw contact
Technical specifications
- Product type
CEE wall plug
- Nominal voltage
400 V
- Nominal current
63 A
- Nominal current - rounded value
63 A
- Type A
Screws
- Type B
CEE plug (5-pin, 63 A)
- Adjustment range
Time Position 6 h
- Cores
5
IP67
- Standards
Voltage according to EN 60309-2
- Factory colour
White
- Dim
(L x W x H) 171 x 118 x 250 mm
- Length
171 mm
- Width
118 mm
- Height
250 mm
- Content
1 pc(s)
- Number of pins
5
- Weight
4950 g
Surface mounted plug
5
Plastic
63 A
60
Screwed terminal
Right-angled
399-400 V
IP67
6 h
Red
400 V (50+60 Hz) red
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1760776 MENNEKES 361 361 CEE wall plug 63 A 5-pin 400 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1760776 MENNEKES 361 361 CEE wall plug 63 A 5-pin 400 V 1 pc(s)
Description
CEE wall plug. IP67 dust-proof and protected against temporary submersion in water. With Time Position 6 h.
