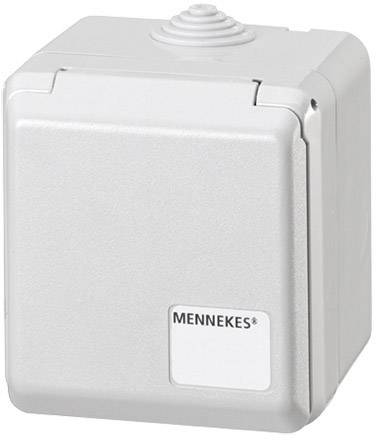

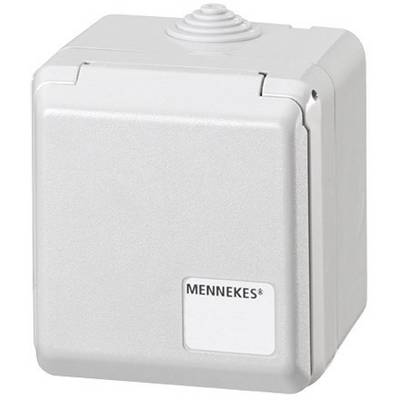

MENNEKES 4105 4105 CEE wall socket 16 A 5-pin 400 V 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Mennekes CEE-Wall Socket Cepex 5p 16A 400V IP44
- Screw contact
- Ball throwing-proof according to DIN 18032
- IP44
Technical specifications
- Product type
CEE wall socket
- Features
Suitable for sports facilities
- Nominal voltage
400 V
- Nominal current
16 A
- Nominal current - rounded value
16 A
- Type A
Screws
- Type B
CEE connector (5-pin, 16 A)
- Adjustment range
Time Position 6 h
- Cores
5
IP44
- Standards
Voltage according to EN 60309-2
- Factory colour
Grey
- Dim
(L x W x H) 87 x 90 x 93 mm
- Length
87 mm
- Width
90 mm
- Height
93 mm
- Content
1 pc(s)
- Number of pins
5
- Weight
0
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1760793 MENNEKES 4105 4105 CEE wall socket 16 A 5-pin 400 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1760793 MENNEKES 4105 4105 CEE wall socket 16 A 5-pin 400 V 1 pc(s)
Description
CEE Wall socket Cepex. IP44 Protection against foreign bodies and water. With screw contact. With Time Position 6 h.
