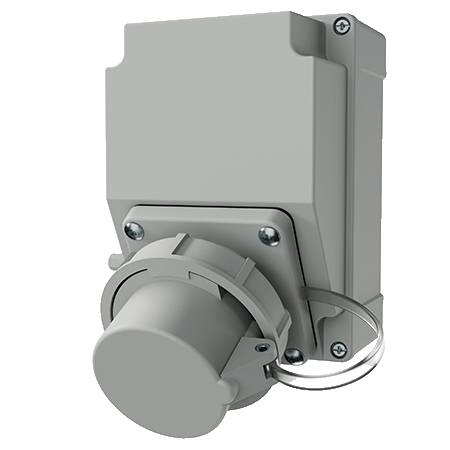

MENNEKES 8109251 8109251 CEE socket combo 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
CEE socket combo
- Cores
5
IP67
- Factory colour
Multicolour
- Dim
(L x W x H) 175 x 130 x 200 mm
- Length
175 mm
- Width
130 mm
- Height
200 mm
- Content
1 pc(s)
- Number of pins
5
- Weight
780 g
Grey
130 mm
200 mm
175 mm
0
Other
Plastic
Other
Other
None
None
None
None
0
Feeder cable with plug
Wall mounting
IP67
FALSE
0
0
0
0
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3118126 MENNEKES 8109251 8109251 CEE socket combo 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3118126 MENNEKES 8109251 8109251 CEE socket combo 1 pc(s)
Description
MENNEKES wall plug connector wired ready for connection Protection class IP 67 Housing: 1 AMAPLAST housing 170x118 mm (BxH) electrical gray RAL 7035 Mounting/protection: 1 CEE mounted devices plugs 16A 5p 1h >50V (IP 67) - incl. Protective cap- cable entry/connection option: 1 M 32 top (closed) 1 M 32 bottom (open) terminal for 1 cable up to 5 x 6mm²
