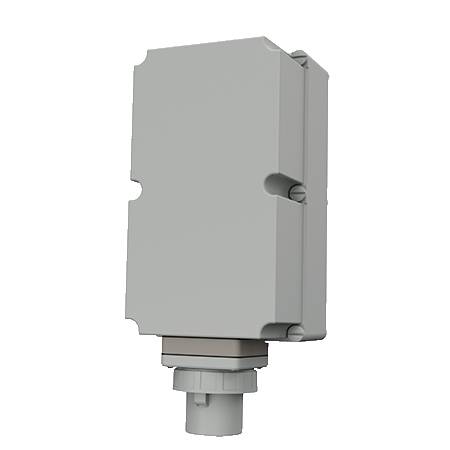

MENNEKES 8617073 8617073 CEE socket combo 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
CEE socket combo
- Cores
5
IP67

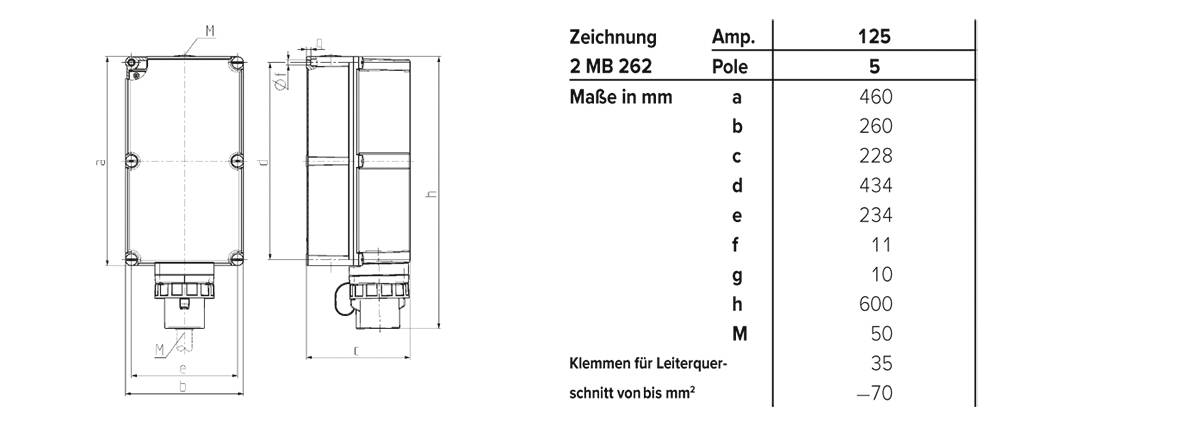

- Dim
(L x W x H) 240 x 260 x 620 mm
- Length
240 mm
- Width
260 mm
- Height
620 mm
- Content
1 pc(s)
- Number of pins
5
Grey
260 mm
620 mm
240 mm
0
Other
Plastic
Other
Other
None
None
None
None
0
Feeder cable with plug
Wall mounting
IP67
FALSE
0
0
0
0
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3118151 MENNEKES 8617073 8617073 CEE socket combo 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3118151 MENNEKES 8617073 8617073 CEE socket combo 1 pc(s)
Description
MENNEKES wall plug connector wired ready for connection Protection class IP 67 Housing: 1 polycarbonate housing 460x260 mm (HxB) electro >-gray RAL 7035 Mounting: 1 CEE-attachment plug 125A 5p 1h 50V (IP 67) - incl. Protective cap- insertion/connection possibility: 1 M 63 top (closed) 1 M 63 bottom (open) terminal for 1 cable up to 5 x 70 mm²
