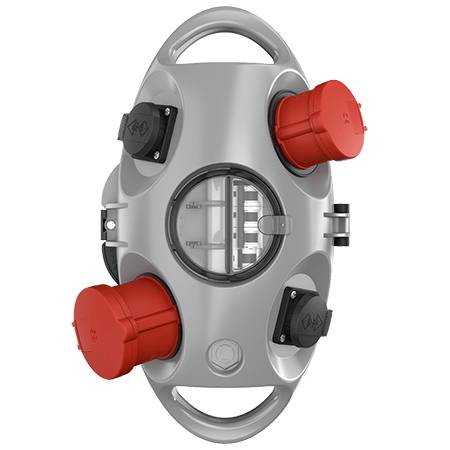

MENNEKES 94564SI 94564SI CEE socket combo 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
CEE socket combo
IP44
- Factory colour
Silver
- Dim
(L x W x H) 275 x 240 x 420 mm
- Length
275 mm
- Width
240 mm
- Height
420 mm
- No. of PG sockets
2
- Content
1 pc(s)
- Number of pins
5
Silver
240
420 mm
275 mm
2
Over current switch
Plastic
Untreated
Other
Other
1x16A5p400V
1x32A5p400V
None
None
0
1 cable (branch line)
Hangable
CuSn
IP44
FALSE
0
0
0
0
0
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3118157 MENNEKES 94564SI 94564SI CEE socket combo 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3118157 MENNEKES 94564SI 94564SI CEE socket combo 1 pc(s)
Description
MENNEKES AIRKRAFT Ready wired for connection Protection type IP 44 Housing: 1 black AMAPLASTIC housing (similar to RAL 9005) and hinged device cover (silver) Security under transparent operating flap (4TE) Mounting:/Security: Pos. 01 1 CEE socket 32A 5p 400V Rapido Pos. 02 1 CEE socket 16A 5p 400V Rapido 1 LS-switch 16A 3p C Pos. 03 2 Schuko sockets 16A 2p+E 230V 1 LS-switch 16A 1p B Feed/connection option: Cable entries: at the top, for breaking off 1x M32, 1x M25, 2x M20 1x feedthrough for compressed air connection sideways locked for breaking off 1x M25 including Mounting eye set (102070)
