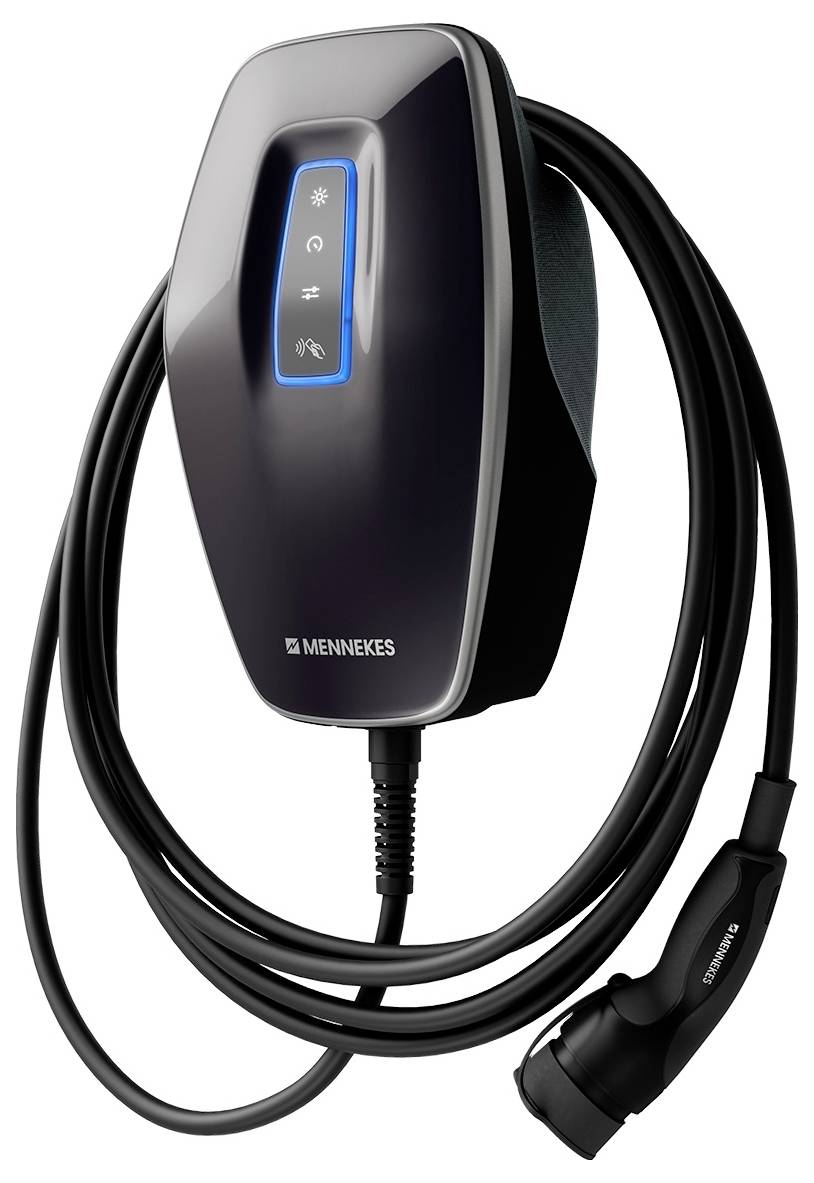

MENNEKES AMTRON 4You31011C2BK Wallbox
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Height: 226 mm
- Width 168 mm
- Depth: 402 mm
- Mounting type: Wall mounting
- Protection class (IP) IP54
- Impact strength: IK10
- Housing material: Plastic
- Frequency: 50 Hz
- Input voltage 230 – .400 V
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- With display: No.
- Design connection system side: 3-phase
- Rated connection power 11 kW
- Number of loading points: 1
- Max. Power per charging point 11 kW
- With house connection box (HAK): No.
- Charging cable permanently lockable on the charging station: No.
- DC fault current detection: Yes
- Contactor contact welding detection: Yes
- With circuit breaker: No.
- Network-compatible as Master: No.
- Network-compatible as Extender: No.
- Network-compatible via LAN: No.
- Network-compatible via WLAN: No.
- LTE: No.
- Wireless standard 5G: No
- With energy meter: No.
- With key switch: No.
- With integrated RFID card reader: Yes
- NFC (Near Field Communication): No.
- Static load management integrated: No.
- Suitable for dynamic load management: No.
- Plug and charge (ISO 15118): No.
- Operation and configuration via APP: No.
- Export of the load history: No.
- Suitable for cable cross-sections of 10 mm²
- Backend included in delivery: No.
- With MID-compatible energy counter: No.
- True-to-law: No.
- Number of charging couplings type 2: 1
- Length of charging cable 8 m
- Product type
Wallbox
- Factory colour
Multicolour
- Weight
6.448
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3548413 MENNEKES AMTRON 4You31011C2BK Wallbox
User & Safety Instructions
User & Safety Instructions 3548413 MENNEKES AMTRON 4You31011C2BK Wallbox
User & Safety Instructions 3548413 MENNEKES AMTRON 4You31011C2BK Wallbox
Information
Information 3548413 MENNEKES AMTRON 4You31011C2BK Wallbox
Description
AMTRON® 4You 310 - the wall box for easy charging at home with access protection and PV-charging with external counter. By the RFID access protection the Wallbox offers security against unauthorized use by third parties. It enables manufacturer-independent PV charging by recording the excess of the PV system via an external counter. AMTRON® 4You 310 is future-proof and compatible with any PV system. The Wallbox can be designed individually by means of the exchangeable front cover. The direct use at the device and the LED-status display make the charging simple. In the 11 kW variant, the charging station supports both 1- as well as 3-phase solar charging, including dynamic phase switching and maximizes the use of excess solar energy. With the fixed mounted charging cable type 2, with a length of 7.5 meters, and the integrated cable management, the Wallbox offers additional comfort.
