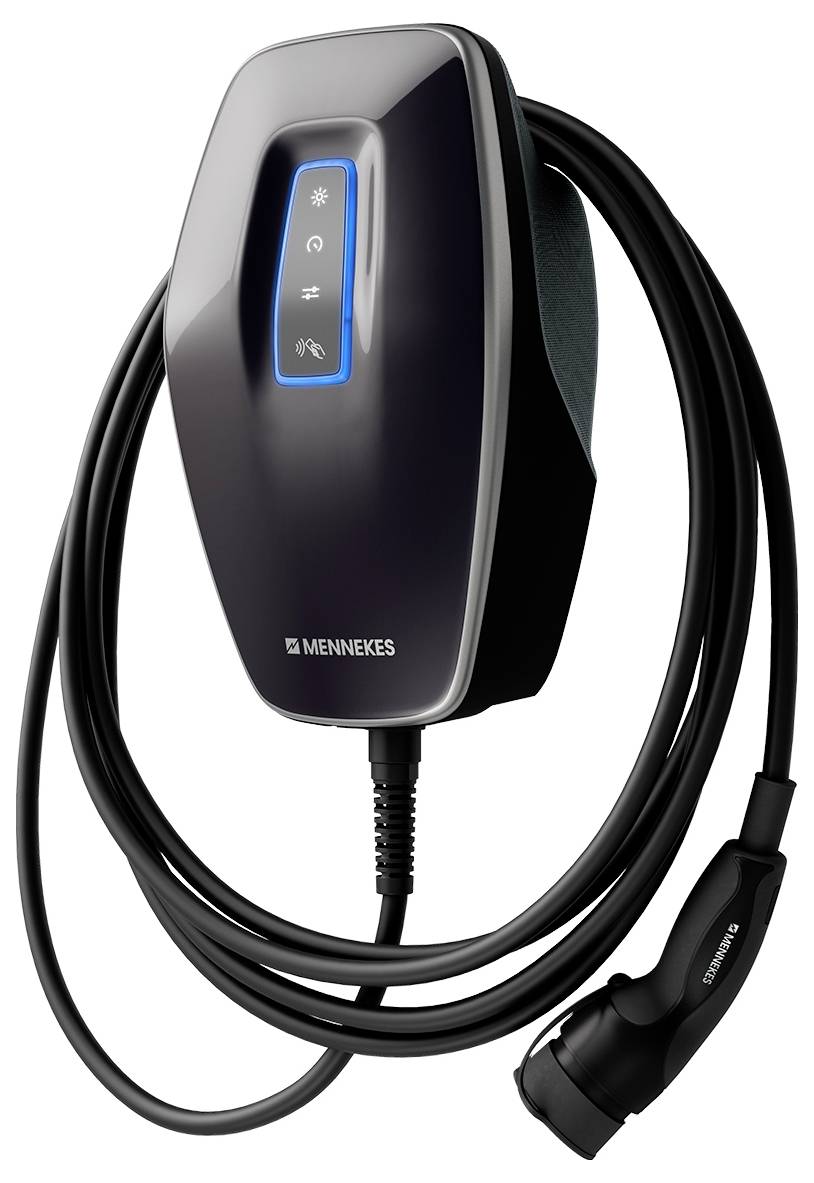

MENNEKES AMTRON 4You51011C2BK Wallbox
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Height: 226 mm
- Width 168 mm
- Depth: 402 mm
- Mounting type: Wall mounting
- Protection class (IP) IP54
- Impact strength: IK10
- Housing material: Plastic
- Frequency: 50 Hz
- Input voltage 230 – .400 V
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- With display: No.
- Design connection system side: 3-phase
- Rated connection power 11 kW
- Number of loading points: 1
- Max. Power per charging point 11 kW
- With house connection box (HAK): No.
- Charging cable permanently lockable on the charging station: No.
- DC fault current detection: Yes
- Contactor contact welding detection: Yes
- With circuit breaker: No.
- Network-compatible as Master: Yes
- Network-compatible as Extender: Yes
- Network connection via LAN: Yes
- Network connection via WLAN: Yes
- LTE: No.
- Wireless standard 5G: No
- With energy meter: No.
- With key switch: No.
- With integrated RFID card reader: Yes
- NFC (Near Field Communication): No.
- Static load management integrated: Yes
- Suitable for dynamic load management: Yes
- Open Charge Point Protocol (OCPP) Version: 1.6
- Plug and charge (ISO 15118): Yes
- Operation and configuration via APP: YES
- Export of the load history: Yes
- Suitable for cable cross-sections of 10 mm²
- Backend included in delivery: No.
- With MID-compatible energy counter: No.
- True-to-law: No.
- Number of charging couplings type 2: 1
- Length of charging cable 8 m
- Product type
Wallbox
- Factory colour
Multicolour
- Weight
6.871
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3550108 MENNEKES AMTRON 4You51011C2BK Wallbox
User & Safety Instructions
User & Safety Instructions 3550108 MENNEKES AMTRON 4You51011C2BK Wallbox
User & Safety Instructions 3550108 MENNEKES AMTRON 4You51011C2BK Wallbox
Information
Information 3550108 MENNEKES AMTRON 4You51011C2BK Wallbox
Description
AMTRON® 4You 510 - the smart Wallbox with APP and intelligent PV-function. Compatible with the leading energy management systems, AMTRON® 4You 510 is particularly suitable for PV-optimized charging. As an alternative, PV-optimized charging can also be implemented independent of the manufacturer via an external counter. The Wallbox supports 1 and 3-phase solar charging for dynamic charging capacities from 1.4 to 11 kW. The solar charging mode is selected comfortably in the APP or directly at the device. With access protection by RFID the Wallbox is protected against unauthorized access. Smart features such as APP operation, Coming Home function with ground lighting and proximity sensor, changeable front cover in desired colors and load management make charging convenient. The Wallbox is WLAN/LAN-enabled, thanks to the ISO 15118 and a future software update for the V2G (Vehicle to Grid) and V2H (Vehicle to Home) communication (bi-directional loading) and displays the load status at any time by LEDs. Further features are the securely mounted charging cable type 2 with a length of 7.5 meters and the integrated cable management. The AMTRON® 4Installers APP makes it easy for installers to configure, set up and manage the loading point. Note: Service car statements are only possible with the Wallbox version AMTRON® 4You 560.
