MENNEKES AMTRON Professional 22 Wallbox Type 2 Mode 3 22 kW RFID
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

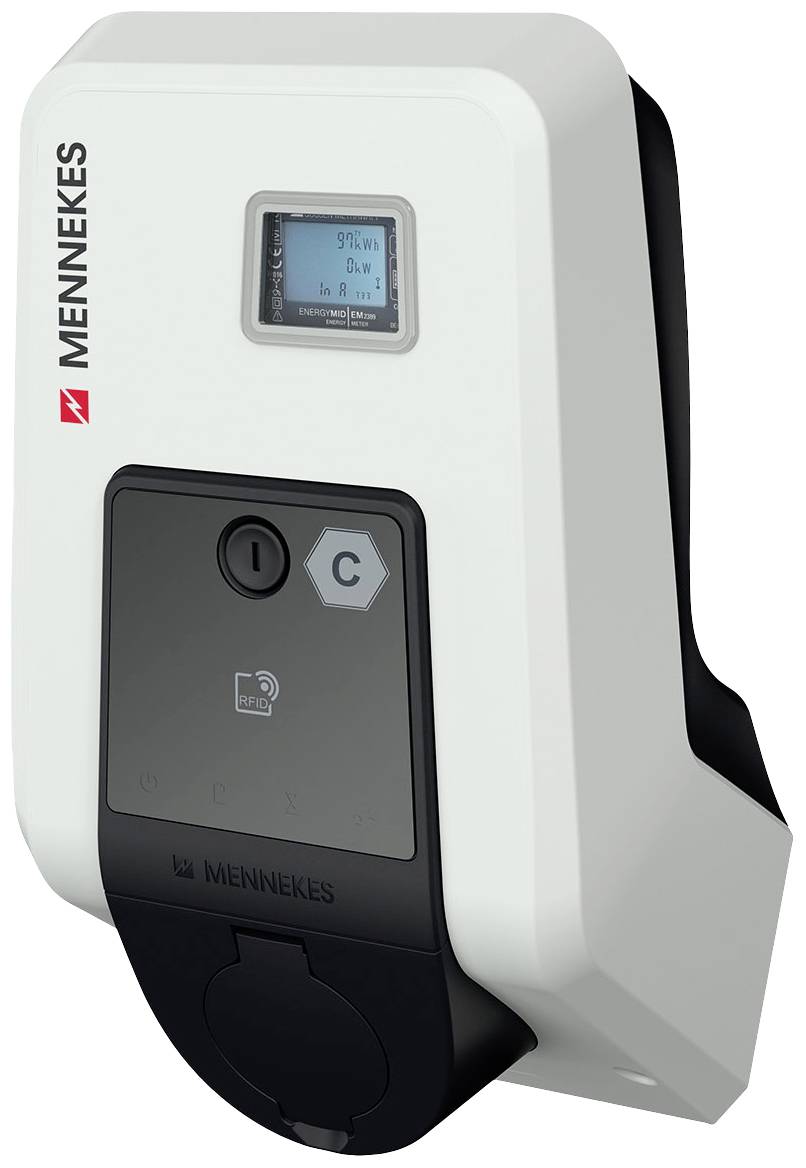

MENNEKES Wallbox AMTRON Professional 22
- Access with RFID charging card
- Load management
- Energy management
- Calibration compliance
- Can be funded BMVI
- Direct jaw connection
- Backend
Technical specifications
- Number of loading points: 1
- Mounting type: Wall mounting
- Number of FI switches type A: 1
- Housing material: Plastic - AMELAN®
- Conforms to calibration law
- Conforms to calibration law: According to type-examination certificate DE-20-M-PTB-0021
- Backend communication protocol: OCPP 1.5 and OCPP 1.6
- Vehicle communication: IEC 61851-1 mode 3
- Personal protection: 40/ 0.03A, 4p, type A
- Circuit protection C-32A, 3p + N, 10kA
- Product type
Wallbox
- Authorisation
RFID
- Charger connectors
Type 2
- Charging mode
Mode 3
- Charging capacity
22 kW
- No. of phases
3-phase
- Nominal voltage
230 V
400 V
IK10
IP54
- Factory colour
Grey-white (RAL 7035)
Manufacturer's declaration

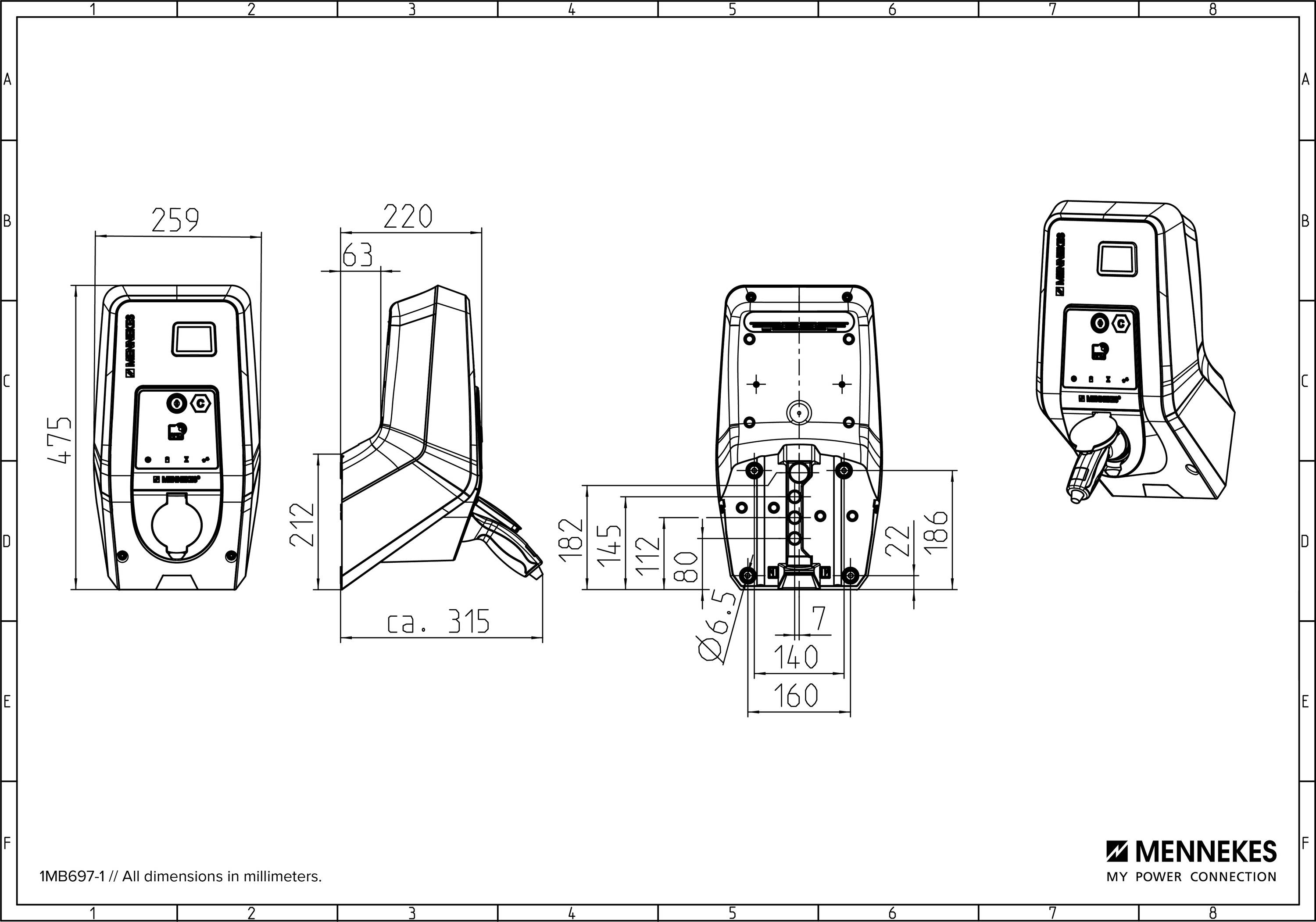

- Width
259 mm
- Height
475 mm
- Depth
220 mm
- Weight
8336 g
- Max. temperature
40 °C
- Min. temperature
-25 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3028544 MENNEKES AMTRON Professional 22 Wallbox Type 2 Mode 3 22 kW RFID
User & Safety Instructions
User & Safety Instructions 3028544 MENNEKES AMTRON Professional 22 Wallbox Type 2 Mode 3 22 kW RFID
User & Safety Instructions 3028544 MENNEKES AMTRON Professional 22 Wallbox Type 2 Mode 3 22 kW RFID
User & Safety Instructions 3028544 MENNEKES AMTRON Professional 22 Wallbox Type 2 Mode 3 22 kW RFID
User & Safety Instructions 3028544 MENNEKES AMTRON Professional 22 Wallbox Type 2 Mode 3 22 kW RFID
Description
AMTRON® Professional Wallboxes are perfectly suited to the requirements of the semi-public sector, such as your company car park or a customer parking lot. A strong overall package for the development of a future-ready charging infrastructure: High security requirements, customer-friendly operation, networking capability for the implementation of requirement-oriented billing, system monitoring and load management combined in one solution. The professional devices meet all legal requirements and are thus compliant with calibration law. The charging stations can be networked via LAN, in order thus to use the integrated MENNEKES load management. Through the integrated mobile phone modem in the Professional+ variants, a direct connection to back-end systems can be made for monitoring and billing.
This text is machine translated.
This text is machine translated.
Features
- With circuit breaker
- With communications interface
- With energy meter
- Access control function
- With load management: Static load management, dynamic load management, connection to external energy management
- Impact strength: IK10
- Authorization: Autostart (without authorization), RFID, backend
- Networking via: LAN to external energy management system, LAN to professional charging system
- Controls: Multifunction button, LED info panel
Scope of delivery
- Wallbox
- 3 x RFID-card (In the delivery state, the RFID-cards are already registered in the local whitelist)
- Allen key
- Bag with fastening material (screws, plugs, sealing plugs)
- USB cable
- Operating and installation instructions.
Hints
This article is eligible nationwide according to the bmvi funding program: Public charging infrastructure.
Charging cable is not included in the delivery.
