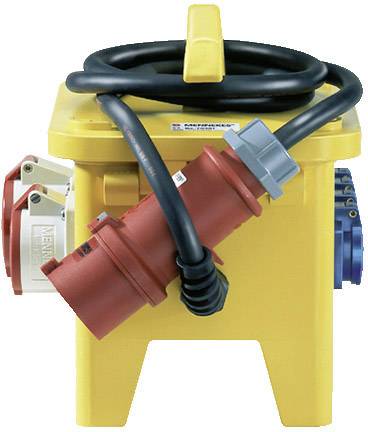

MENNEKES CEE power distributor 70351 70351 400 V 32 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Mennekes socket combo EverGUM ® Portable 70351
- High dimensional stability and accuracy
- Acid and alkali resistance
- High Durchschlags and creep resistance
Technical specifications
- Product type
CEE power distributor
- No. of CEE connectors
2
- Type A
CEE plug (5-pin, 32 A)
- Type B
CEE connector (5-pin, 16 A)
CEE connector (5-pin, 32 A)
PG socket
- No. of PG sockets
4
- Inputs
1
- Outputs
6
- Nominal input voltage
400 V
- Nominal output voltage
400 V
- Nominal input current
32 A
IP44
- Cable length
2.00 m
- Cable standard
H07RN-F 5G 4 mm²
- Protection
1 x FI 40 A, 4P, 0.03 A
1 x LS 16A, 3P, C
2 x LS 16 A, 1 p, B
- Factory colour
Yellow
- Weight
7.74 kg
- Dim
(W x H x D) 330 x 410 x 310 mm
- Width
330 mm
- Height
410 mm
- Inputs (CEE power distributor)
CEE plug (5-pin, 32 A)
- Outputs (CEE power distributors)
CEE connector (5-pin, 16 A)
CEE connector (5-pin, 32 A)
PG connector
- Content
1 pc(s)
- Number of pins
5
- Depth
310 mm
Yellow
330
410 mm
310 mm
Rubber
IP44
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1760812 MENNEKES CEE power distributor 70351 70351 400 V 32 A
User & Safety Instructions
User & Safety Instructions 1760812 MENNEKES CEE power distributor 70351 70351 400 V 32 A
Description
The portable MENNEKES EverGum ® Power Distribution is perfectly suitable for mobile use in industry, trade and industry. The decisive advantage: the high dimensional stability and accuracy protects even in strong shocks against deformation. The good, acid and alkali resistance can be used even where aggressive cleaning agents in orbit. High Durchschlags and creep resistance. Also protects the closed lower part of the housing with 77 mm ground clearance of water entry. Thus, the power distributor against the effects of weather. To change the mounting sockets is also possible at any time without problem. LS-and the RCD are after opening the lid immediately accessible. For additional security, the possibility of a padlock to attach.
This text is machine translated.
This text is machine translated.
Features
- Stackable
