MENNEKES CEE power distributor 920003 920003 230 V 16 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

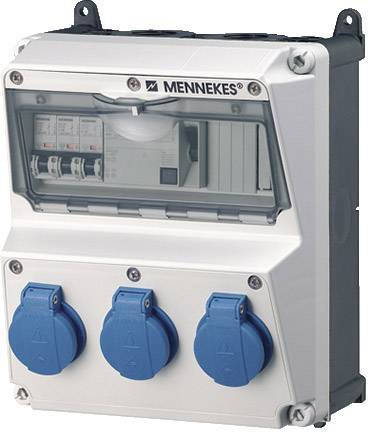

Mennekes AMAXX socket combo 920003
- Wired ready for connection
- On the side of feeder urinary buch
- IP44 Protection against foreign objects and water splashes
Technical specifications
- Product type
CEE power distributor
- Type B
PG socket
- No. of PG sockets
3
- Inputs
1
- Outputs
3
- Nominal input voltage
230 V
- Nominal output voltage
230 V
- Nominal input current
16 A
IP44
- Cable length
0 m
- Protection
1 x FI 40 A, 4P, 0.03 A
3 x LS 16 A, 1 P, C
- Factory colour
Grey
Black
- Weight
2940 g
- Dim
(L x W x H) 150 cm x 225 mm x 320 mm
- Length
150 cm
- Width
225 mm
- Height
320 mm
- Outputs (CEE power distributors)
PG connector
- Content
1 pc(s)
- Depth
260 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1760814 MENNEKES CEE power distributor 920003 920003 230 V 16 A
User & Safety Instructions
User & Safety Instructions 1760814 MENNEKES CEE power distributor 920003 920003 230 V 16 A
Description
With AMAXX combine clever and thus save valuable installation time. Only one cable, less drill holes, less cable and pipe clamps and only a housing, whose outer fixing the one-man mounting. The Hinged Ruder, side-opening lid as well as the vorziehbaren top hat rails and the large connection space facilitate the connection work. AMAXX is ready to connect pre-wired and tested for electrical safety and quality according to IEC 61439.
This text is machine translated.
This text is machine translated.
Features
- Housing and box insert from AMAPLAST ®
- Security under transparent control flap
