Buy MENNEKES CEE power distributor 930007 930007 400 V 32 A

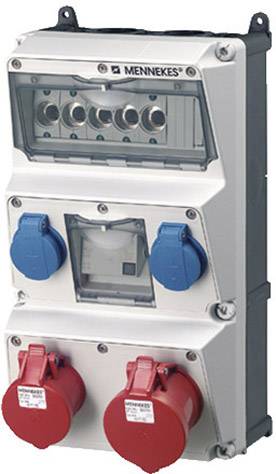

Industrial distribution box with multiple socket connections in blue and red, suitable for electrical equipment connections at events.

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Mennekes AMAXX socket combo 930007

Wired ready for connection
On the side of feeder urinary buch
IP44 Protection against foreign objects and water splashes

Technical specifications

Product type: CEE power distributor

No. of CEE connectors: 2

Type B: PG socket
CEE connector (5-pin, 16 A)
CEE connector (5-pin, 32 A)

No. of PG sockets: 3

Inputs: 2

Outputs: 5

Nominal input voltage: 400 V

Nominal output voltage: 400 V

Nominal input current: 32 A

: IP44

Cable length: 0 m

Protection: 1 x FI 40 A, 4P, 0.03 A
1 x NEOZED D01, 3P
2 x NEOZED D01, 1P

Factory colour: Grey
Black

Weight: 4525 g

Dim: (W x H x D) 225 x 390 x 260 mm

Width: 225 mm

Height: 390 mm

Outputs (CEE power distributors): PG connector
CEE connector (5-pin, 16 A)
CEE connector (5-pin, 32 A)

Content: 1 pc(s)

Number of pins: 5

Depth: 260 mm

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 1760825 MENNEKES CEE power distributor 930007 930007 400 V 32 A

User & Safety Instructions

User & Safety Instructions 1760825 MENNEKES CEE power distributor 930007 930007 400 V 32 A

Description

With AMAXX combine clever and thus save valuable installation time. Only one cable, less drill holes, less cable and pipe clamps and only a housing, whose outer fixing the one-man mounting. The Hinged Ruder, side-opening lid as well as the vorziehbaren top hat rails and the large connection space facilitate the connection work. AMAXX is ready to connect pre-wired and tested for electrical safety and quality according to IEC 61439.

This text is machine translated.
