Buy MENNEKES CEE power distributor 930010 930010 400 V 32 A

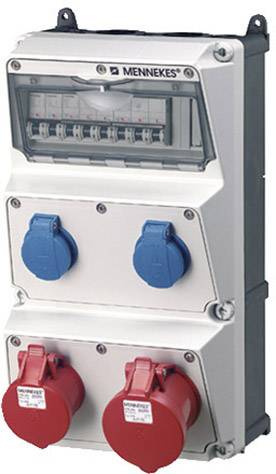

A white electric distribution enclosure with multiple blue and red sockets and a transparent compartment for switches.

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Mennekes AMAXX socket combo 930010

Wired ready for connection
On the side of feeder urinary buch
IP44 Protection against foreign objects and water splashes

Technical specifications

Product type: CEE power distributor

No. of CEE connectors: 2

Type B: PG socket
CEE connector (5-pin, 16 A)
CEE connector (5-pin, 32 A)

No. of PG sockets: 2

Inputs: 2

Outputs: 4

Nominal input voltage: 400 V

Nominal output voltage: 400 V

Nominal input current: 32 A

: IP44

Protection: 1 x LS 32 A, 3 P, C
1 x LS 16A, 3P, C
2 x LS 16 A, 1 P, C

Factory colour: Grey
Black

Weight: 5100 g

Dim: (W x H x D) 225 x 390 x 260 mm

Width: 225 mm

Height: 390 mm

Outputs (CEE power distributors): PG connector
CEE connector (5-pin, 16 A)
CEE connector (5-pin, 32 A)

Content: 1 pc(s)

Number of pins: 5

Depth: 260 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1760808 MENNEKES CEE power distributor 930010 930010 400 V 32 A

User & Safety Instructions

User & Safety Instructions 1760808 MENNEKES CEE power distributor 930010 930010 400 V 32 A

Description

With AMAXX combine clever and thus save valuable installation time. Only one cable, less drill holes, less cable and pipe clamps and only a housing, whose outer fixing the one-man mounting. The Hinged Ruder, side-opening lid as well as the vorziehbaren top hat rails and the large connection space facilitate the connection work. AMAXX is ready to connect pre-wired and tested for electrical safety and quality according to IEC 61439.

This text is machine translated.
