Buy MENNEKES X-CONTACT® 5113A CEE wall socket 63 A 400 V AC 1 pc(s)

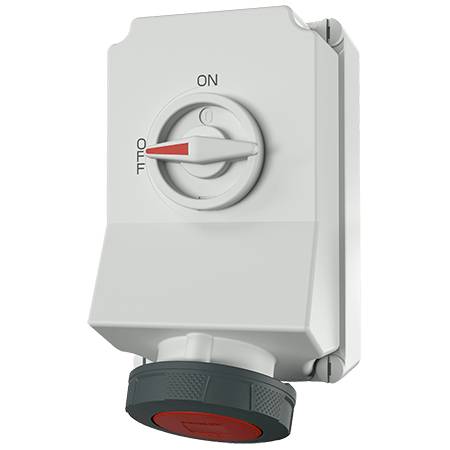

A white control panel with a rotary switch positioned between 'ON' and 'OFF'. The switch is currently set to 'OFF'.

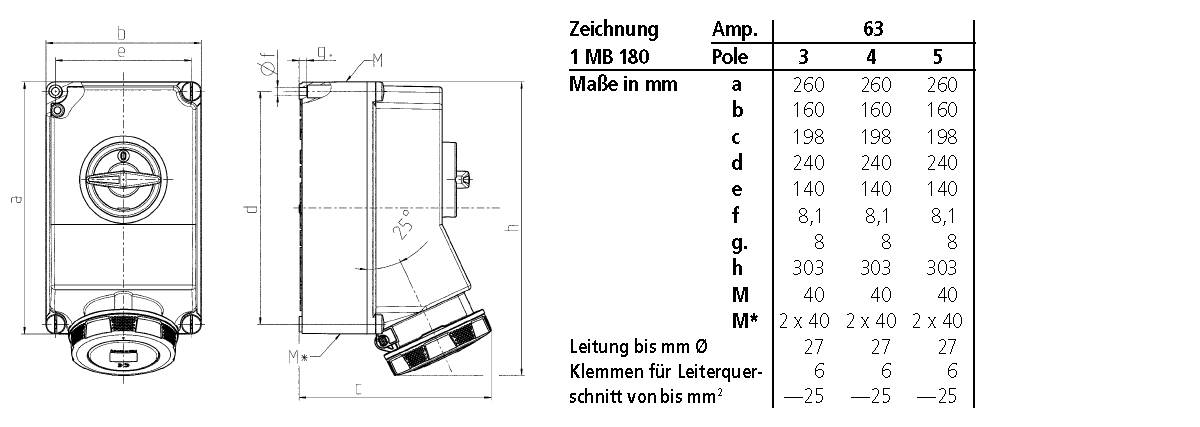

A technical diagram shows the side and front view of an electrical component with dimensions in mm. Alongside this is a table with details about amperes, poles, and various measurement units from a to M.

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Product type: CEE wall socket

Features: Mechanical locking mechanism

Nominal voltage: 400 V AC

Nominal current: 63 A

Nominal current - rounded value: 63 A

Type: Lower and upper part

: IP67

Dim: (L x W x H) 322 x 207 x 163 cm

Length: 322 cm

Width: 207 cm

Height: 163 cm

Content: 1 pc(s)

Number of pins: 5

: Base unit and cover

: Mechanical locking

: Mixed

: 5

: Plastic

: Untreated

: 63 A

: 60

: FALSE

: CuZn

: FALSE

: IP67

: FALSE

: 6 h

: Red

: 400 V (50+60 Hz) red

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3118128 MENNEKES X-CONTACT® 5113A CEE wall socket 63 A 400 V AC 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3118128 MENNEKES X-CONTACT® 5113A CEE wall socket 63 A 400 V AC 1 pc(s)

Description

63A5P 6H400V Wall socket DUO WD with frame terminal and X-CONTACT
