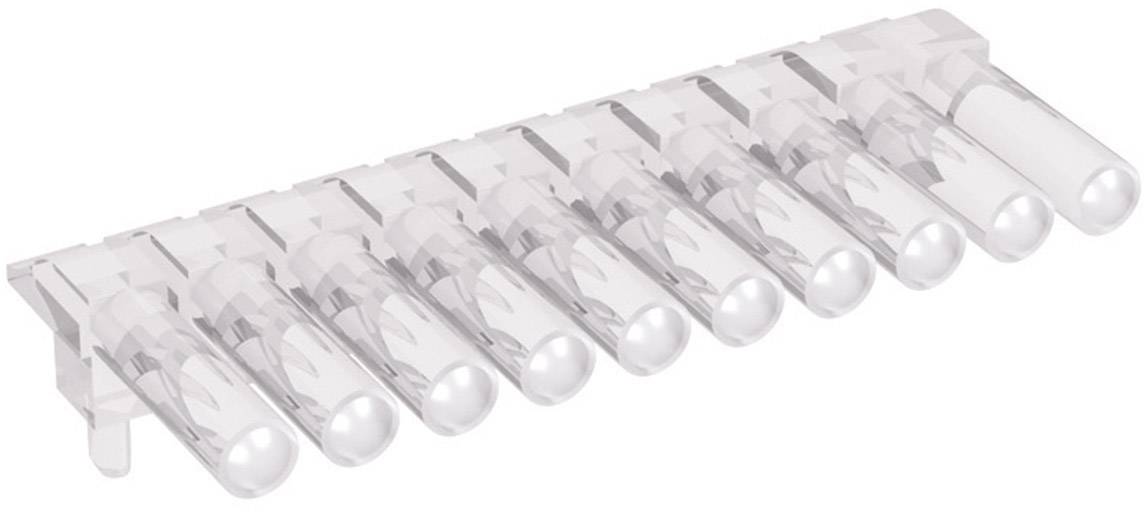

Mentor 1271.2002 Light pipe Rigid Panel-fit, Snap-in
EAN:
Part number:
Item no:
Datasheet (PDF)
14 Piece(s) (Only while stocks last)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
10
-
€ 0.25
30
8% = € 0.02
€ 0.23
50
12% = € 0.03
€ 0.22
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 10
Total (€ 0.25 / piece)
€
Highlights & Details
Miniature light conductor, horizontal
- Radiating surface Ø 2 mm
Technical specifications
- Type
1271.2002
- Mounting type
Panel-fit
Snap-in
- Manufacturer
Mentor
- Configuration
1 x 2
- Type
Rigid
- Lens shape
Dome
- Factory colour
Transparent
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
+85 °C
- Lens size (Ø)
2 mm
- Width
5.64 mm
- Height
4.54 mm
- Length
11.55 mm
- Dim

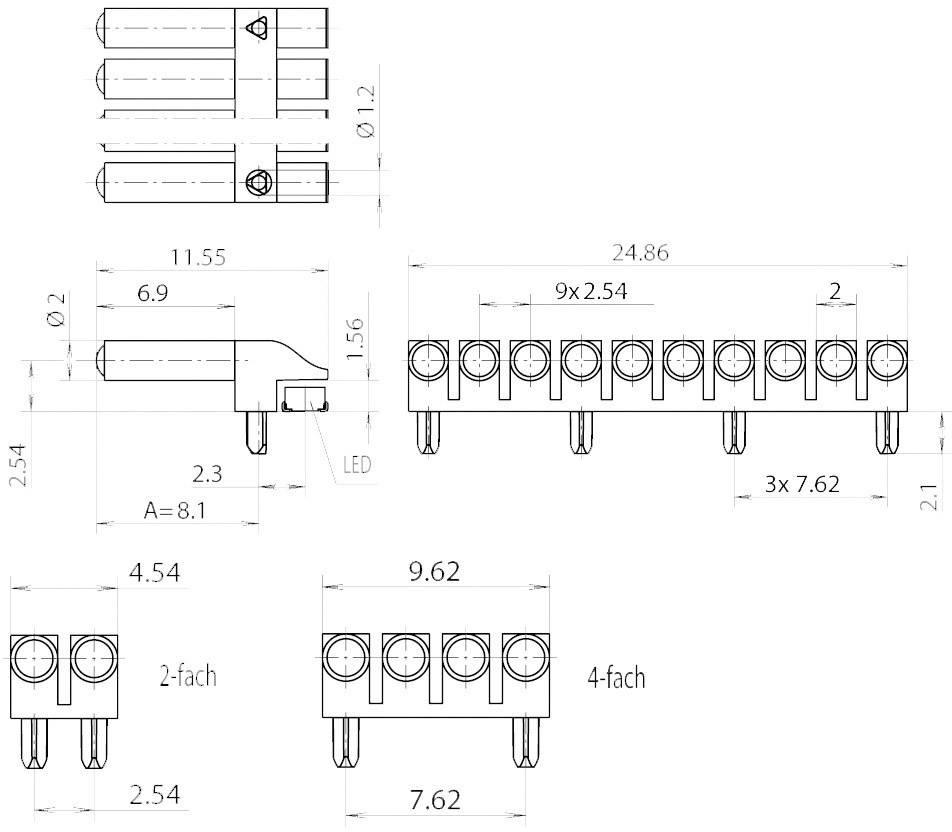

(L x W x H) 11.55 x 5.64 x 4.54 mm
- RoHS-compliant
Yes
- Product type
Light pipe
Documents & Downloads
Datasheet
Datasheet 556582 Mentor 1271.2002 Light pipe Rigid Panel-fit, Snap-in
User & Safety Instructions
User & Safety Instructions 556582 Mentor 1271.2002 Light pipe Rigid Panel-fit, Snap-in
Description
The single-row fiber optic cable system in a 2.54 mm via fixing pins in the circuit board. Fiber optic cables are used in conjunction with SMD MiniTOPLEDs. The light is in the form of a fiber optic cable of diameter 2 mm parallel to the circuit board to the front panel.
This text is machine translated.
This text is machine translated.
Hints
Supplied without LEDs.
