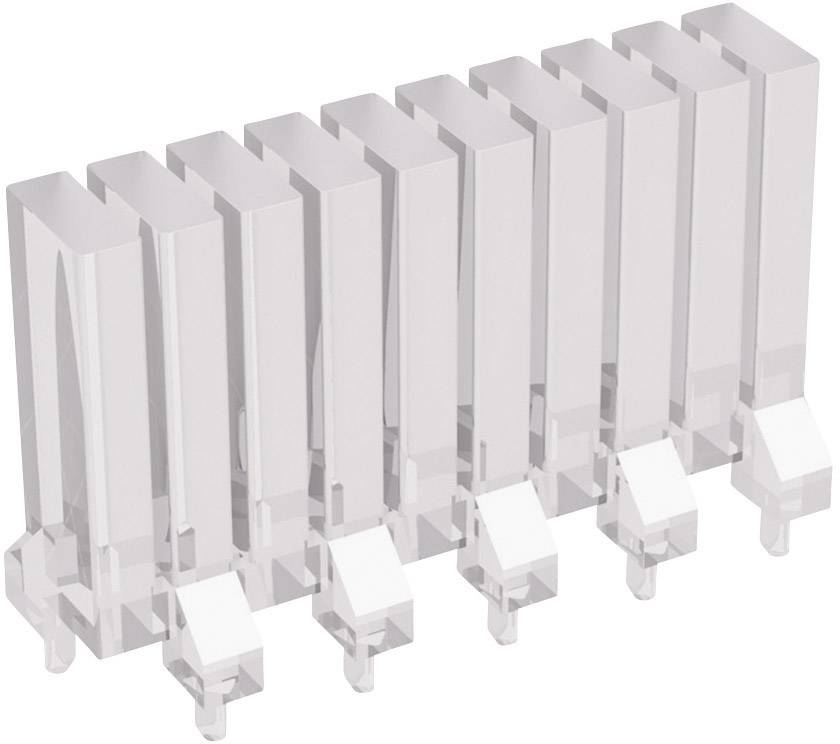

Mentor 1274.2010 Light pipe Rigid Panel-fit, Press-fit
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
3
-
€ 1.25
9
8% = € 0.10
€ 1.15
15
11% = € 0.14
€ 1.11
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 3
Total (€ 1.25 / piece)
€ 3.75
plus VAT.
Highlights & Details
Miniature light conductor, standing
- Radiating surface 2 x 5 mm
Technical specifications
- Type
1274.2010
- Mounting type
Panel-fit
Press-fit
- Manufacturer
Mentor
- Configuration
1 x 10
- Type
Rigid
- Lens shape
Square
- Factory colour
Transparent
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
+85 °C
- Lens size (Ø)
2 mm
- Width
17.1 mm
- Height
8.4 mm
- Length
24.86 mm

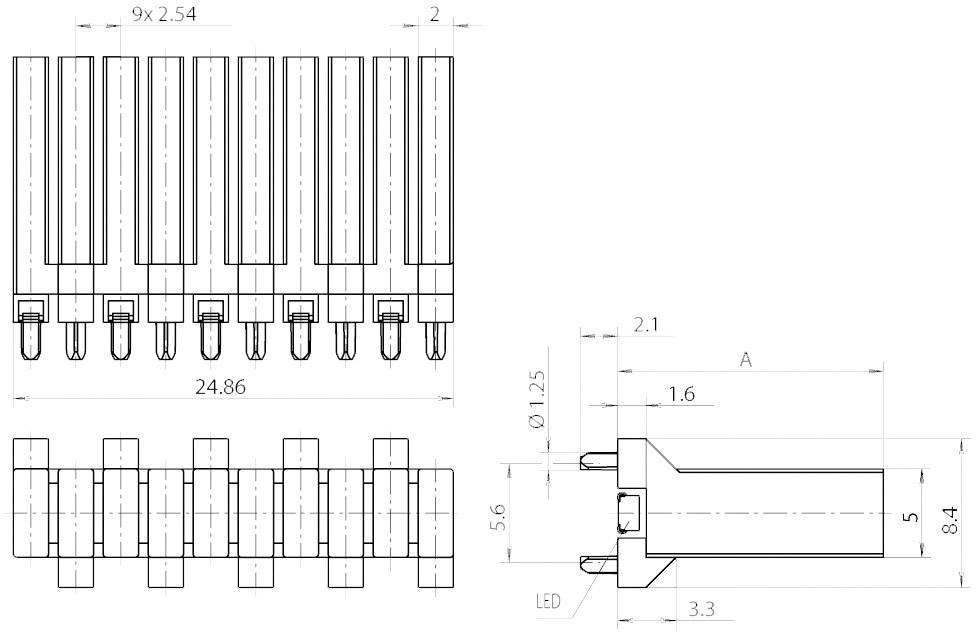

- Dim
(L x W x H) 24.86 x 17.1 x 8.4 mm
- RoHS-compliant
Yes
- Product type
Light pipe
Documents & Downloads
Datasheet
Datasheet 556585 Mentor 1274.2010 Light pipe Rigid Panel-fit, Press-fit
User & Safety Instructions
User & Safety Instructions 556585 Mentor 1274.2010 Light pipe Rigid Panel-fit, Press-fit
Description
This vertical fiber optic cable system in 2.54er raster dimension brings light in the form of a 2 x 5 mm LED on the front panel. Through the base plate, the light conductor in the circuit board. The use of the light conductor is carried out in connection with SMD MiniTOPLEDs. The system can be used, for example, as a bar graph display.
This text is machine translated.
This text is machine translated.
Hints
Supplied without LEDs.
