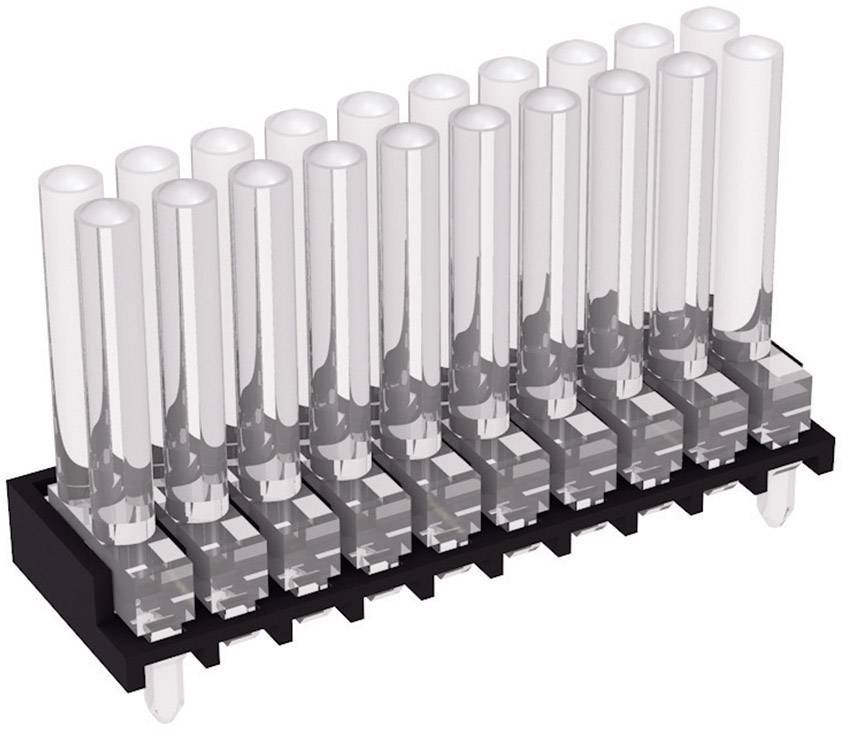

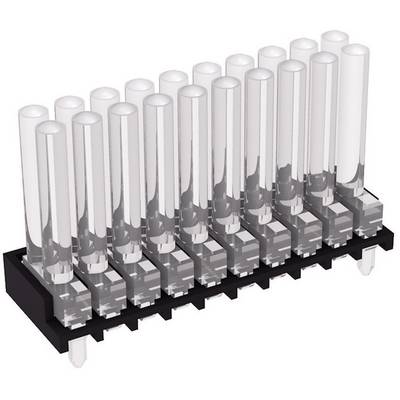

Mentor 1296.7022 Light pipe Rigid Panel-fit, Snap-in
EAN:
Part number:
Item no:
Product type
Light pipe
Mounting type
Panel-fit
Snap-in
Width
8.6 mm
Height
5.7 mm
Length
17.1 mm
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 1.25
10
8% = € 0.10
€ 1.15
25
11% = € 0.14
€ 1.11
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 1.25 / piece)
€ 1.25
plus VAT.
14-day return policy included
Highlights & Details
Miniature multiple light conductor, standing
- Radiating surface Ø 2 mm
Our service for you
Technical specifications
- Type
1296.7022
- Product type
Light pipe
- Mounting type
Panel-fit
Snap-in
- Manufacturer
Mentor
- Configuration
2 x 2
- Type
Rigid
- Lens shape
Dome
- Factory colour
Transparent
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
+85 °C
- Lens size (Ø)
2 mm
- Width
8.6 mm
- Height
5.7 mm
- Length
17.1 mm
- Dim
(L x W x H) 17.1 x 8.6 x 5.7 mm
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 556608 Mentor 1296.7022 Light pipe Rigid Panel-fit, Snap-in
User & Safety Instructions
User & Safety Instructions 556608 Mentor 1296.7022 Light pipe Rigid Panel-fit, Snap-in
Description
This multiple fiber optic cable system is designed for use of chip leds of the design 0603 or smaller designs, where it is in the 2.54 mm grid dimension. The component is provided with a screen, in order to prevent irradiation, so that even mixed colors are possible. The aperture ensures the fixed seat of the fiber optic cable and fixed to the fixing pins in the circuit board.
This text is machine translated.
This text is machine translated.
Hints
Supplied without LEDs.
