Mentor LED component Red 3 mm 4 mcd 60 ° 20 mA 2.25 V
Part number:
Item no:
Product type
LED component
Forward voltage U(F)
2.25 V
Forward current I(F)
20 mA
Casing
3 mm
Type
THT
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 5.03
5
6% = € 0.32
€ 4.71
10
9% = € 0.46
€ 4.57
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 5.03 / piece)
€ 5.03
plus VAT.
14-day return policy included
Highlights & Details

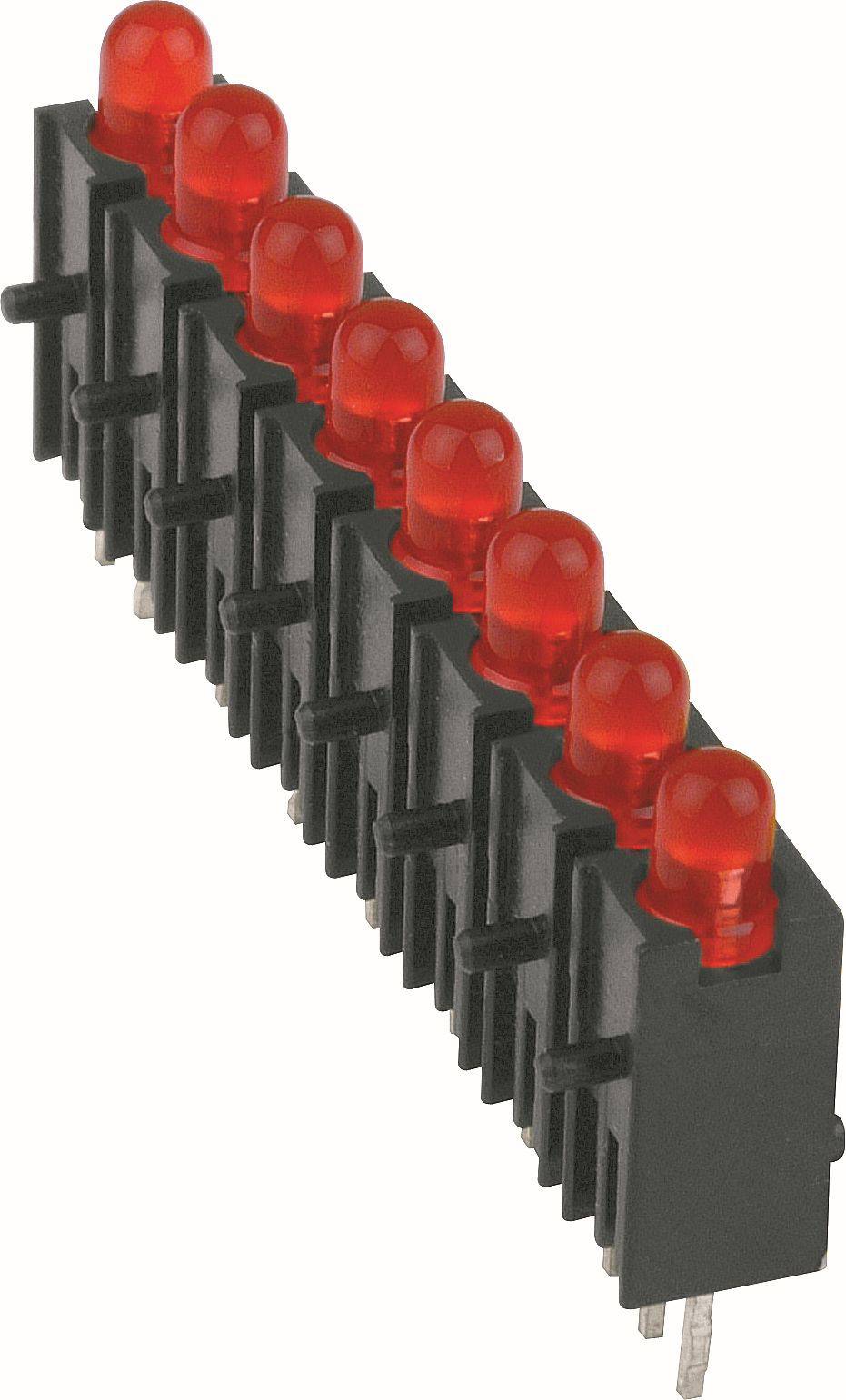

Multiple LED display
- THT
- 3mm
- Connection wire
- Vertical alignment
Technical specifications
- S=8-way, RM=5.08
- Product type
LED component
- Type
Multiple LED display
- Factory colour
Red
- Forward voltage U(F)
2.25 V
- Forward current I(F)
20 mA
- Operating voltage
2.25 V
- Operating current
20 mA
- Casing
3 mm
- Type
THT
- Light intensity I(V)
4 mcd
- Wavelength
625 nm
- Radiation angle
60°
- LED features
stackable
- Dim
(Ø x H) 3 mm x 13.3 mm
- Min. temperature
-40 °C
- Max. temperature
85 °C
- Length
39.56 mm
- Width
5.08 mm
- Height
13.3 mm
- (Ø)
3 mm
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3788288 Mentor LED component Red 3 mm 4 mcd 60 ° 20 mA 2.25 V
User & Safety Instructions
User & Safety Instructions 3788288 Mentor LED component Red 3 mm 4 mcd 60 ° 20 mA 2.25 V
Description
In the development of these components, the know-how of MENTOR which has been acquired over decades was used as a developer and supplier of components for industrial electronics. They can be used anywhere where light signals are and must attract attention to functions or operating conditions. The variety of components ranges from single and multiple displays and strips in various designs to lamp holders.
This text is machine translated.
This text is machine translated.
Hints
All standard LED chips require a current-limiting resistor/constant current power source.
