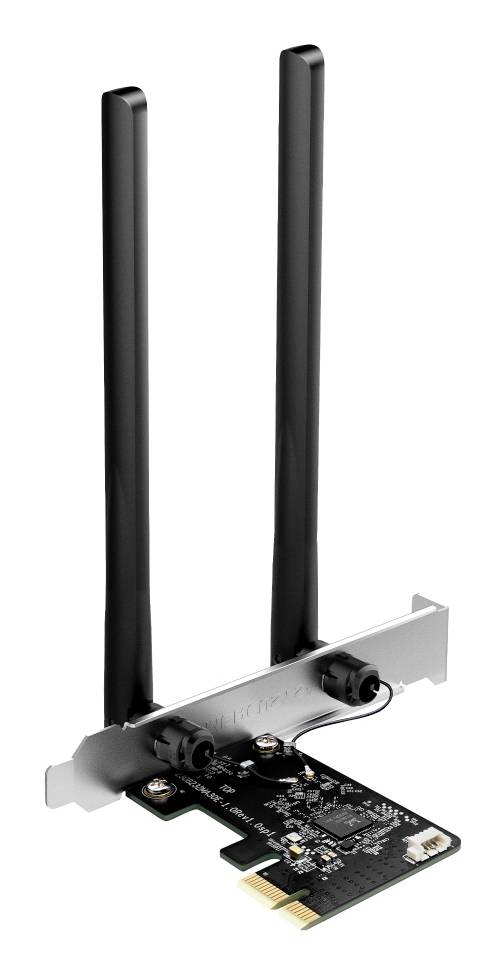

Mercusys MA30E V1 Network adapter 1200 MBit/s PCI-Express, Wi-Fi, Bluetooth
EAN:
Part number:
Item no:
Highlights & Details
Mercusys AC1200 Wi-Fi Bluetooth PCIe adapter
- Cordless
- PCI Express WLAN / Bluetooth
- 1200 Mbit/s
- Wi-Fi Dual band (2.4 GHz/5 GHz)
- Built-in component for: PC
Technical specifications
- Host Interface: PCI Express
- Interface WLAN/Bluetooth
- Maximum data transfer rate of 1200 Mbit/s.
- Wi-Fi band Dual (2.4 GHz/5 GHz)
- WLAN standards: 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac)
- Product type
Network adapter
- Interfaces
PCI-Express
Wi-Fi
Bluetooth
- Transfer rate
1200 MBit/s
- Factory colour
Black
- Depth
120.8 mm
- Height
21.5 mm
- Width
226.3 mm
- Safety
WPA-PSK
WPA2-PSK
WPA2-SAE
- Transfer type
Wireless
- Range of use
PC
- Wi-Fi
Yes
- Operating temperature (T-T)
0 - 40 °C
- Storage relative humidity (H-H)
5 - 90 %
- Resource CD
yes
- Internal
yes
- Quick installation guide
yes
- Operating relative humidity (H-H)
10 - 90 %
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3799802 Mercusys MA30E V1 Network adapter 1200 MBit/s PCI-Express, Wi-Fi, Bluetooth
Description
Unlock the wireless potential of your PC and enjoy your game time
AC1200 Wi-Fi Bluetooth PCIe Adapter
Strong AC1200 WLAN for your PC
The 802.11ac dual band WLAN PCIe adapter (MA30E) works on 5 GHz and 2.4 GHz bands and achieves speeds of up to 1167 Mbps. The MA30E provides WLAN signals on two separate bands for all your online needs. Select the 2.4-GHz band (300 Mbps) for surfing, writing e-mails and for social media or change to the 5-GHz band (867 Mbps) for gaming, streaming and large file downloads.
Super quick WLAN reception
The combination of OFDMA and MU-MIMO brings the MA30E wireless reception to the next level on your PC. This ensures that more devices can communicate with your router at the same time, rather than waiting for data one after the other.
Bluetooth 5.0 - Connect everything
The MA30E makes your PC Bluetooth-enabled with Bluetooth 5.0, which offers more stable connections, larger range and faster transfer speeds than Bluetooth 4.2. Simply connect your Bluetooth devices with your computer and enjoy it with ease.
High-power antenna for larger coverage
Two strong signal amplifier high-performance antennas considerably increase the range of the current WLAN and offer a fast, seamless online experience from a great distance.
The latest WPA2 protects your personal network
The latest security standard WPA2 offers improved, comprehensive WLAN security, in order to protect your devices and private information from brute-force attacks.
Compatible with Windows operating system
The MA30E fully supports the latest Windows 11. Upgrade your PC easily with the powerful WLAN from MA30E.
This text is machine translated.
Features
- Strong dual band Wi-Fi speed - speeds of up to 867 Mbps (5 GHz) + 300 Mbps (2.4 GHz)
- Larger signal coverage - two high-power antennas
- Bluetooth 5.0 – Bluetooth 5.0 technology takes care of higher speeds and a wider range of coverage
- MU-MIMO - Simultaneous supply of multiple devices without latency or bandwidth overload
- Improved security - The latest security enhancement, WPA2, offers improved protection for the security of personal passwords 4
- Backward compatibility - Full support for the standards 802.11ac/a/b/g/n.
- Windows compatible - Supported operating systems: Windows 10, 11 (64 bit)
