Merten 536400 Indoor thermostat Flush mount 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

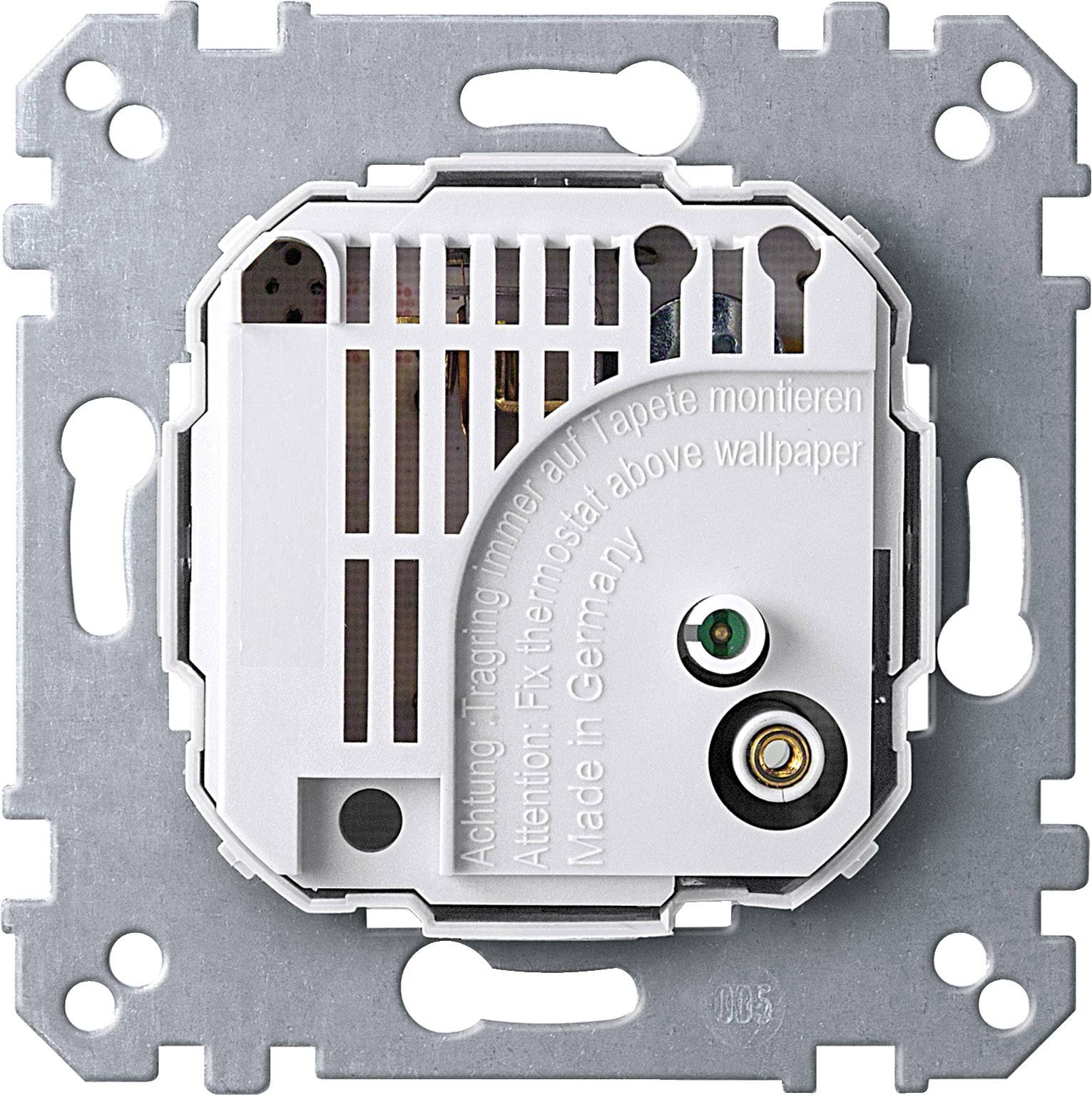

MERTEN room temperature controller insert 536400 change-over contact AC 230V
- For electrical floor heating, when the additional heater needs to be locked, air conditioning (cooling), actuators (open or closed without voltage)
- With thermal feedback
- Rated current heating 10 (4) A
- Nominal current cooling 5 (2) A.
- Contact changer
- To complete with central panel for use with room temperature controller insert with changeover contact system M 5347xx, 5362xx, system surface 5374xx scope of supply Room temperature controller insert, plaster guard and screws
- Version AC 230 V
Technical specifications
- Product type
Indoor thermostat
- Operation type
thermal
- Max. temperature setting
30 °C
- Temperature settings
5 up to 30 °C
- Compatible with
Underfloor heating control
- Mounting type
Flush mount
- Operating voltage
230 V AC
- Contact current
10 A
- Width
71 mm
- Height
26 mm
- Length
71 mm
- Dim
(L x W x H) 71 x 71 x 26 mm
- Contact type
1 change-over
- Min. temperature setting
5 °C
Documents & Downloads
Datasheet
Datasheet 3413901 Merten 536400 Indoor thermostat Flush mount 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3413901 Merten 536400 Indoor thermostat Flush mount 1 pc(s)
Description
For electrical floor heating, when the additional heater needs to be locked, air conditioning (cooling), actuators (open or closed without voltage). With thermal feedback Rated current heating 10 (4) A. Rated current cooling 5 (2) A. Contact changer. To complete with central panel for use with room temperature controller insert with changeover contact system M 5347xx, 5362xx, system surface 5374xx scope of supply Room temperature controller insert, plaster guard and screws. Design AC 230 V.
