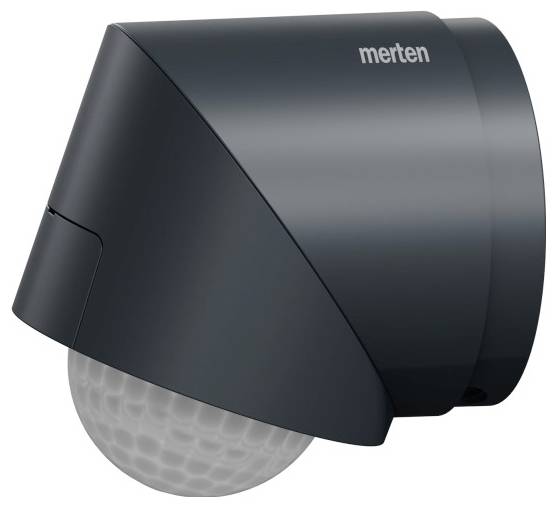

Merten Accessories Motion detector MEG5641-3114 1 pc(s)

Argus 220-360 motion detector for outdoor use for wall and ceiling mounting with 360 degree surface surveillance. The rotatable casing architecture and the optionally available mounting bracket enable mounting options for all common usage cases. Mounting on external/internal corners and fixed pipes with an installation angle. The supplied lens cover that can be cut out enables the fading-out of individual zones. The detection range is up to 32 m in diameter (16 m radius) at an installation height of 2.5 m. Quick Home Connect on board: An integrated Zigbee radio link enables wireless networking with WISER. The large connector space and the plug-in terminals also allow looping through. LED function display for quick alignment and adjustment at the mounting location. The operating elements for setting the switch-on time, brightness threshold and sensitivity are protected under a cover plate together with the programming button for the Quick Home Connect radio connection. In addition to automatic operation there are 2 additional manual modes that can be activated via an NC key: ONE for preset time and ONE for 4?h (Party mode). The timer range is from 1s to 60min. Max. Load capacity: LED lights 300W (max. 15 lamps), light bulbs (resistive load) 2400W and capacitive load up to 140µF. The power consumption in standby mode is less than 750 mW. This motion sensor uses passive infrared technology (PIR sensor). Operating temperature: -20°C to +45°C, storage temperature 0°C to +55°C, protection class IP56. Dimensions: 82.4 mm x 107 mm (diameter x H), 82.4 mm x 131 mm incl. installation angle (diameter x H), weight 230 g. Accessories: Mounting bracket CCT566119. Included in delivery: With lens cover to restrict the detection range, screws and plugs. Colour: Anthracite The device conforms AS/NZS 60669.1 2020, AS/NZS 60669.2.1 2013, AS/NZS 4268 2017, AMD 1 2021, AS/NZS 2772.2 2016, Amdt 1 2018.
