Merten Accessories System M Polar white MEG2335-0419 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Halogen-free
- Type

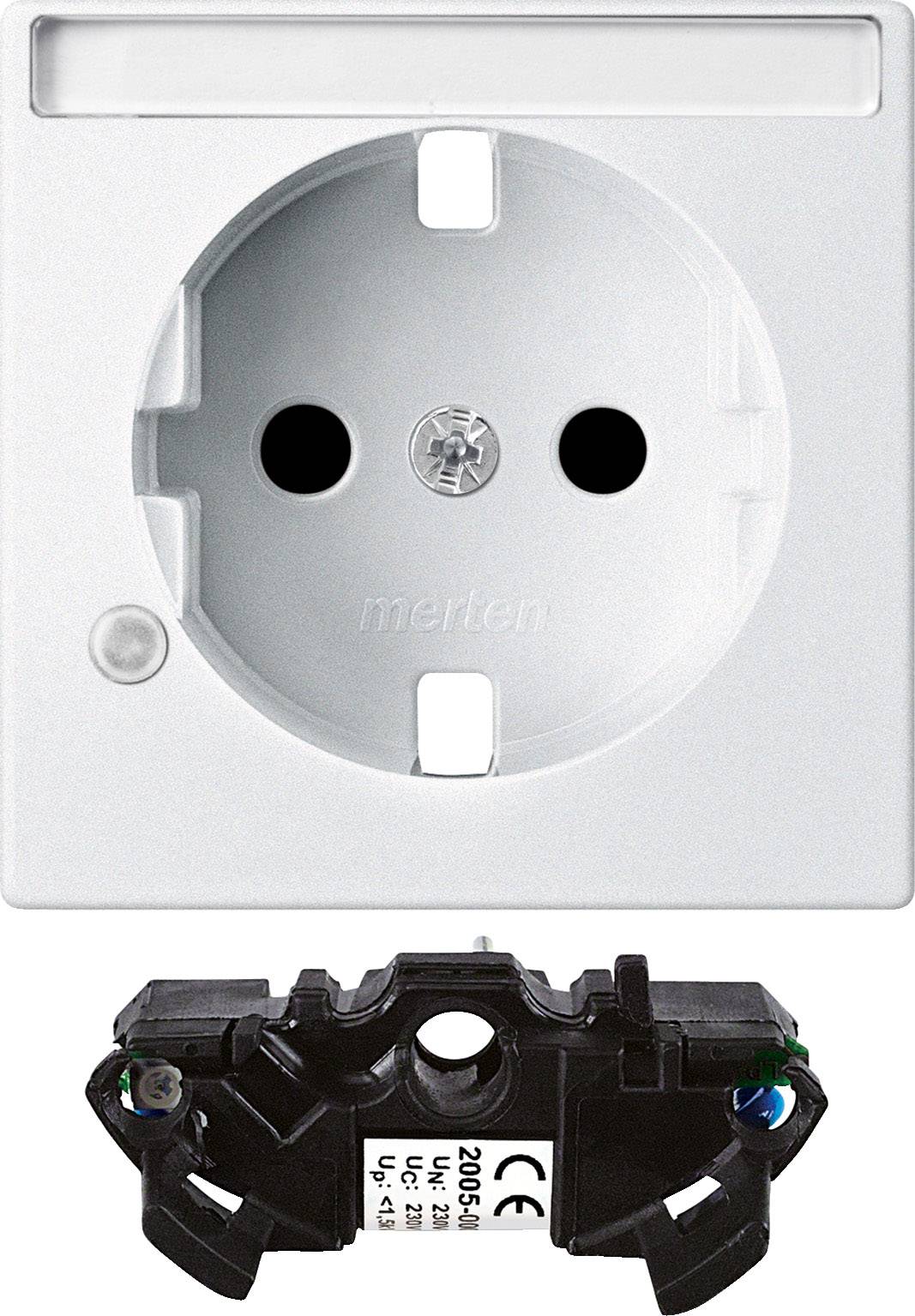

MT central plate MEG23350419 overvoltage protection polar white
- Product type
Switch product range
- Switch type component
Accessories
- Type series
System M
- Factory colour
Polar white
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3414020 Merten Accessories System M Polar white MEG2335-0419 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3414020 Merten Accessories System M Polar white MEG2335-0419 1 pc(s)
Description
Integrated enhanced contact protection according to VDE 0620 Part 1. For expanding the QuickFlex sockets. The overvoltage protection module protects devices connected to the socket against voltage peaks in the network. Sockets that are within a radius of 5 m on the same circuit are also secured by the module. With visual and acoustic defect indicator: After overvoltage the green control LED goes out and when a plug is inserted a signal sounds. Overvoltage protection device (SPD) according to EN61643-11 type 3. Nominal voltage Un: AC 230 V. High-continuous voltage UC: AC 255 V. Combined shock Uoc: 6 kV. Protection level Up (L-N):
