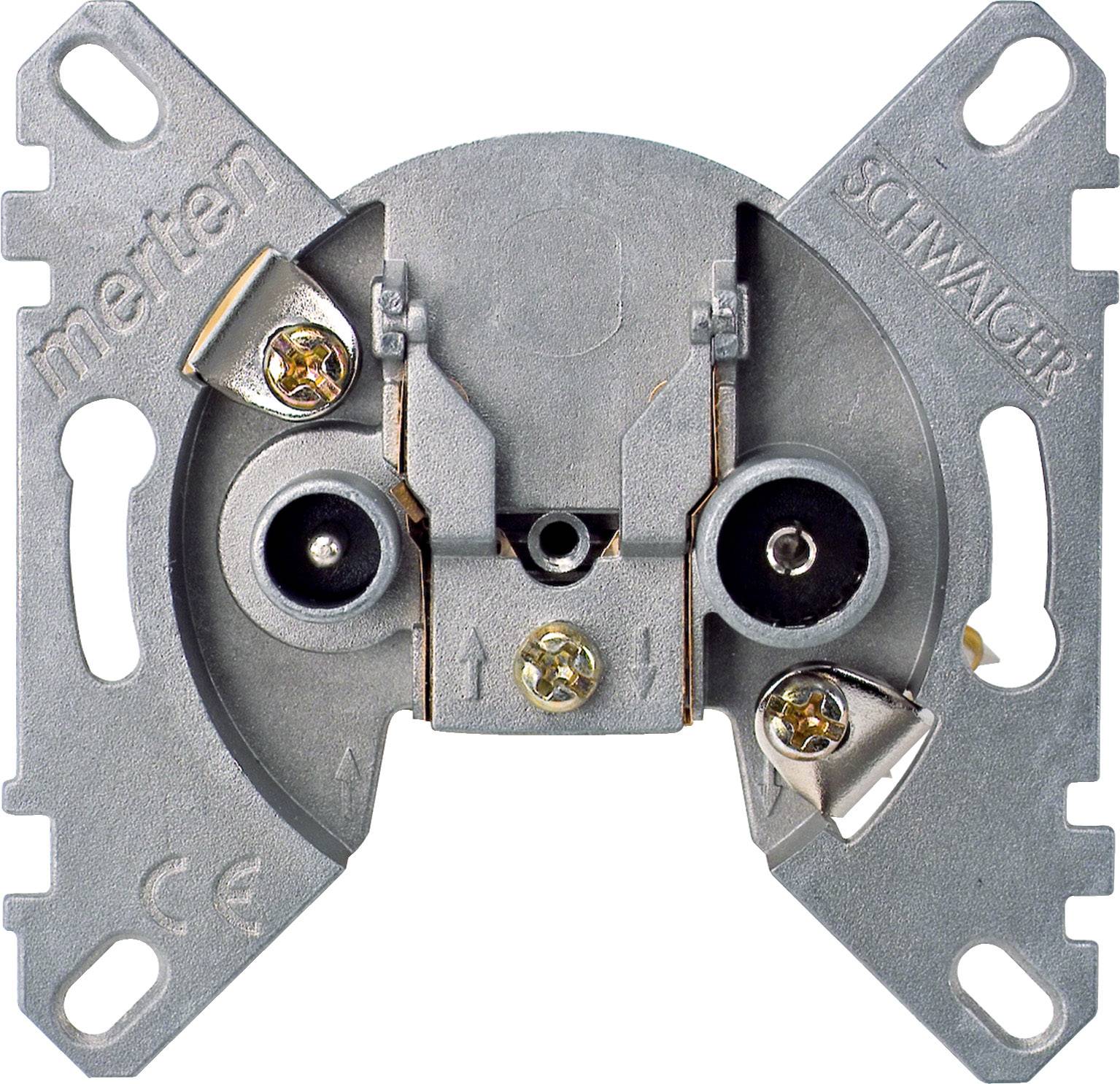

Merten Antenna socket SAT Screw fastening Terminated
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Type
Terminated
- Product type
Antenna socket
- Suitable for
SAT
- Mounting type
Screw fastening
- Features
Reverse channel
- SAT frequency (min.)
0.004 MHz
- SAT frequency (max.)
2.4 MHz
- No. of TVs
1 x
- No. of SATs
1 x
- DC outlet
Yes
Documents & Downloads
Datasheet
Datasheet 3413958 Merten Antenna socket SAT Screw fastening Terminated
User & Safety Instructions
User & Safety Instructions 3413958 Merten Antenna socket SAT Screw fastening Terminated
Description
Broadband single connection socket for branch line and star distribution systems in BK, GA and SAT house distribution systems. With direct-voltage passage via the TV-connection. Suitable for UP-socket diam. 55-65 mm. With claw and screw fixing. Direct-voltage passage max. 24 V/400 mA. Signal 22 kHz and DiSEqC. To be completed with central plate for antenna sockets system M 2967xx, 2975xx, system M MEG4122-03xx /-04xx, system design MEG4123-60xx, system surface 2941xx.
