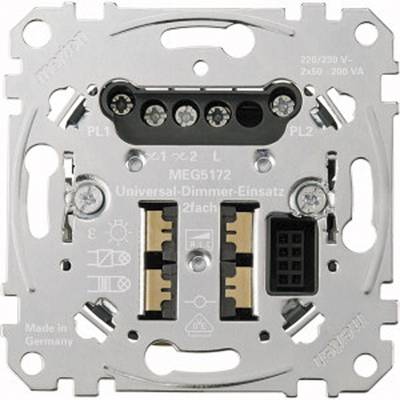

Merten Insert Dimmer System M, System Area, Aquadesign MEG5172-0000 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
Universal dimmer insert, 2-way
- Switching programme Merten
Technical specifications
- Type
Universal dimmer insert, 2-way
- Switch type function
Dimmer
- Product type
Dimmer
- Switch type component
Insert
- Type series
System M
System Area
Aquadesign
- Nominal voltage
230 V AC
- Switching capacity
50 - 220 W
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 456020 Merten Insert Dimmer System M, System Area, Aquadesign MEG5172-0000 1 pc(s)
Description
For resistive, inductive or capacitive loads, such as Bulbs, dimmable wound transformers or electronic transformers. The universal dimmer automatically detects the connected load. No mixed loads. With claw and screw fixing. With screw terminals.
This text is machine translated.
This text is machine translated.
Features
- Switching and dimming of two outputs
- It is caused by the module the way to define how the function of the insert is used
- External control via two plus link inputs
- Overvoltage and short circuit protection
- Soft start-up
- Memory function.
