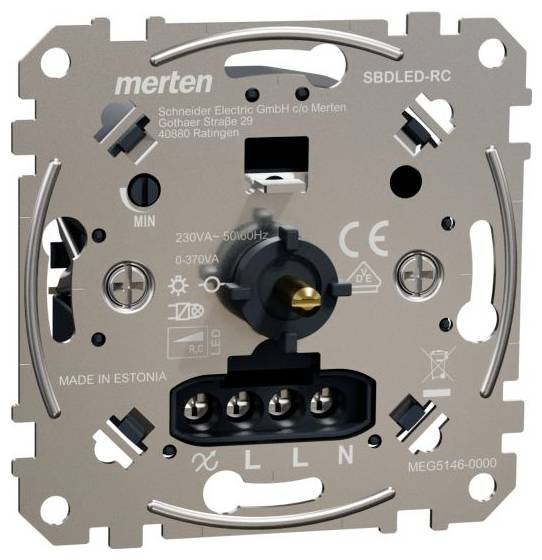

Merten Insert Rotary dimmer Multicolour MEG5146-0000 1 pc(s)

Multiwire LED rotary dimmer insert AC 230 V, 50/60 Hz. This Merten multi-wire LED rotary dimmer insert is a rotary dimmer insert without central plate. This device must be supplemented with Merten central plate and frame. For resistive and capacitive loads, e.g. dimmable LED lamps, light bulbs or electronic transformers. (Trailing edge). Optional neutral wire for improved dimming behavior. Very low minimum load. With pressure switch change With claw and screw fixing. With screw terminals. Properties: Dimmer with integrated changeover contact. Can be integrated into existing change-over circuits. The dimmer can be installed without neutral wire. Optionally, the neutral conductor can be connected (recommended), short-circuit-proof, overload-proof, overheat-proof, soft start, Adjustable minimum brightness. Rated voltage: AC 230 V~, 50/60 Hz, switching capacity: Two-wire installation (without neutral conductor): LED: 3 - 370 W (max. 1.3 A), incandescent lamps: 3 - 200 W, HV-halogen lamps: 1.3 - 370 W. NV-halogen lamps with electronic transformers: 3 - 370 W. Three-wire installation (with neutral conductor, recommended): LED: 0 - 200 W (max. 3 A), incandescent lamps: 0 - 370 W, HV-Halogen lamps 0 - 370 W, NV-Halogen lamps with electronic transformers: 0 - 370 W. Cable cross section: max. 2 x 2.5 mm², 0.5 Nm. This dimmer complies with the protection class IP20. Its nominal current is 10A. The dimensions are (W) 71mm x (H) 71mm x (D) 47mm and the installation depth is 29mm.

This text is machine translated.
