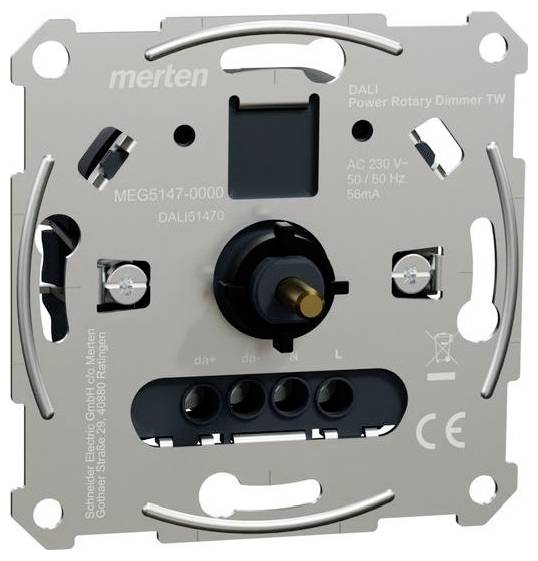

Merten Insert Rotary dimmer System M Multicolour MEG5147-0000 1 pc(s)

The DALI Power dimmer for Merten system M and system design enables the control of lights with DALI interface (DT8). The user interface is a rotary/pushbutton and enables the switching and dimming of lights with DALI-interface. The DALI Power dimmer offers the functionality for switching and dimming lights with DALI interface (DT8). It allows the change in white color temperature (tunable white) with DALI Devices Type 8 according to IEC 62386-209. The color temperature can be set between 2000-10000K. The DALI dimmer can store the turn on brightness or a minimum level of brightness. The DALI dimmer is just as easy to install as a standard dimmer. The dimmer supplies the control current for 28 DALI subscribers. Parallel connection of up to 4 DALI dimmers with power supply unit with the possibility to supply up to 112 DALI subscribers. The nominal voltage is AC 230V at 50/60Hz. The output current is max. 56mA. The maximum power consumption of the DALI dimmer is 2W. The DALI dimmer is intended for flush mounting. Its connection terminals are screw terminals. The protection class is IP20. Standard format is without central plate and knob. It can be supplemented with design parts in different colors in the Merten system M or design. Merten offers a wide and complete range of features, designs, colors and materials from standard to high-end segments. It is designed for quick and easy installation, a perfect end result and a simple retrofitting.

This text is machine translated.
