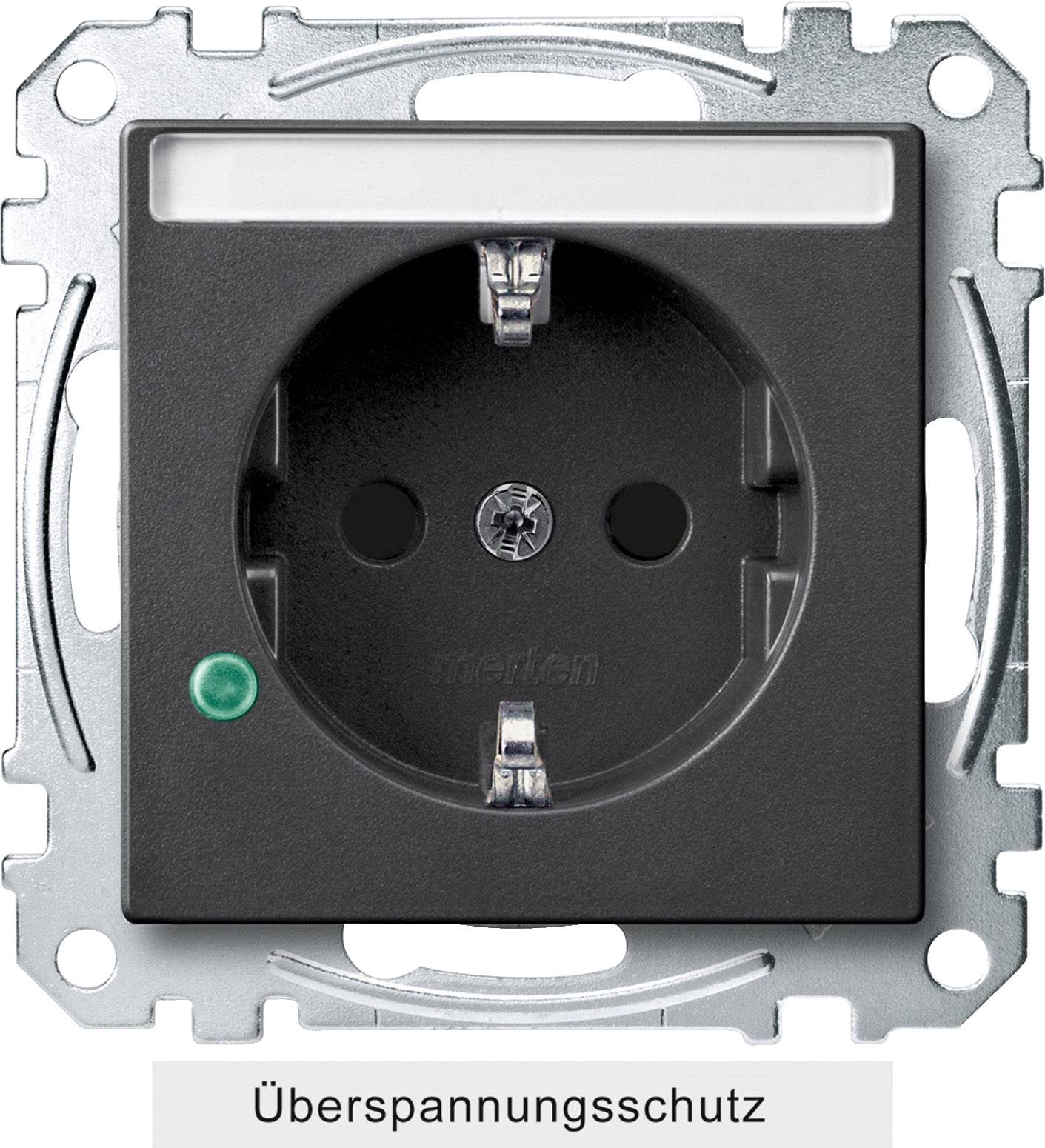

Merten Insert Socket System M Anthracite MEG2305-0414 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Halogen-free
- Type
Mt socket Schuko MEG23050414 surge protection anthracite
- Switch type function
Socket
- Product type
Switch product range
- Switch type component
Insert
- Type series
System M
- Factory colour
Anthracite
- Content
1 pc(s)
- Material
Polycarbonate
Documents & Downloads
Datasheet
Datasheet 3414015 Merten Insert Socket System M Anthracite MEG2305-0414 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3414015 Merten Insert Socket System M Anthracite MEG2305-0414 1 pc(s)
Description
Integrated enhanced contact protection according to VDE 0620 Part 1. The integrated overvoltage protection module protects devices connected to the socket against voltage peaks in the network. Sockets that are within a radius of 5 m on the same circuit are also secured by the module. With visual and acoustic defect indicator: After overvoltage the green control LED goes out and when a plug is inserted a signal sounds. Features of the integrated QuickFlex module. Quick screw for the claw mounting. Countersunk claws with return spring. High-gloss galvanized carry ring insulated to the claw. With claw and screw fixing. With plug-in terminals. Overvoltage protection device (SPD) according to EN61643-11 type 3. Nominal voltage Un: AC 230 V. High-continuous voltage UC: AC 255 V. Combined shock Uoc: 6 kV. Protection level Up (L-N):
