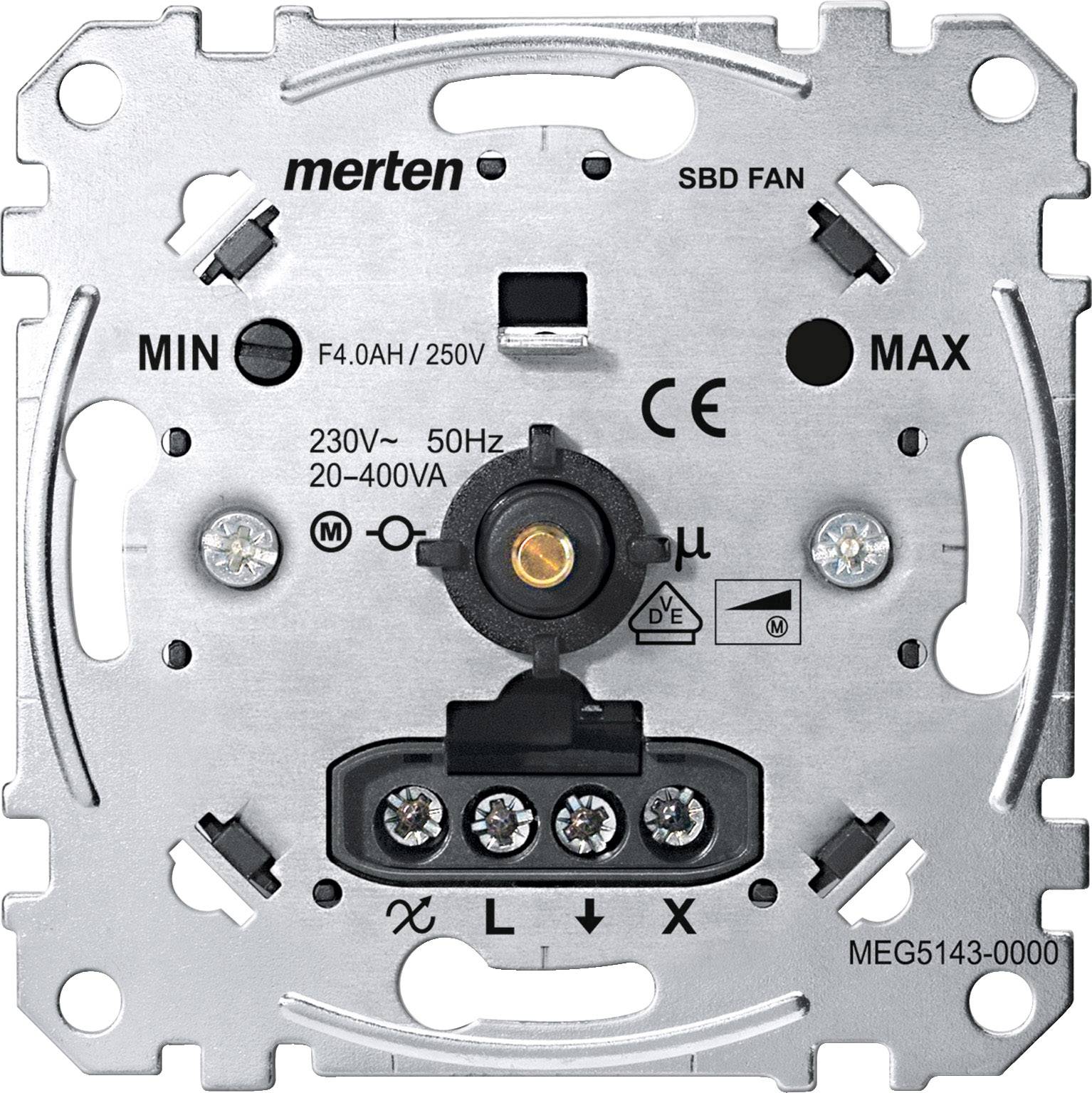

Merten Insert Speed controller MEG5143-0000 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Type
Merten MEG 5143-0000 Speed Controller
- Switch type function
Speed controller
- Product type
Switch product range
- Switch type component
Insert
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1864212 Merten Insert Speed controller MEG5143-0000 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1864212 Merten Insert Speed controller MEG5143-0000 1 pc(s)
Description
A stepless speed control of single-phase motors such as induction, scale or universal motors.. With additional switching output for lamellae control or for switching resistive loads.. The minimum and maximum speed can be set on the device. Mains voltage: 230 V AC, 50 Hz. Nominal load: 20 - 400 W. minimum load: 20 W. Load Type: Single-phase motors. Load on the switching output: max. 2 A, cos phi = 0.6. Short-circuit protection: Safety Fuse To F4.0AH. To complete with: ==> central plate for Speed Controller System M MEG 5251-03 ../-04.., System Design MEG 5251-60.. Design: 20-400 VA.
