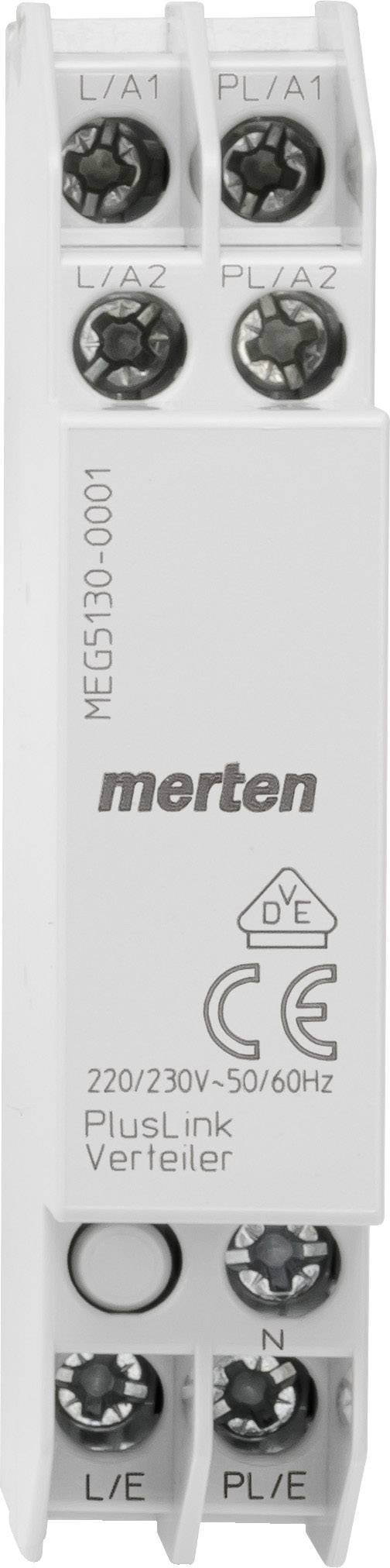

Merten MEG5130-0001 DIN-rail dimmer Grey
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
DIN-rail dimmer
- Operating voltage
230 V
- Factory colour
Grey
- Dim
(W x H) 18 mm x 90 mm
- Width
18 mm
- Height
90 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1863939 Merten MEG5130-0001 DIN-rail dimmer Grey
User & Safety Instructions
User & Safety Instructions 1863939 Merten MEG5130-0001 DIN-rail dimmer Grey
Description
The positive link distributor is required when signals from a plus link line on other plus link lines on different phases are to be distributed. e.g. from PL1 (L1) to PL2 (L2) or PL2 (L3). This is done only in one direction. It follows that several plus link distributors are needed. The device provides galvanic isolation between the phases. Suitable for mounting on DIN rail TH35 according to EN 60715. With screw terminals. Nominal voltage AC 220/230V. neutral conductor: required (3 conductor system). Connection cross-section: max. 2.5 mm2. Device width: 1 TE = 18 mm.
