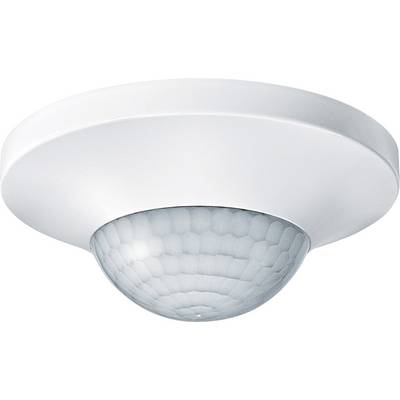

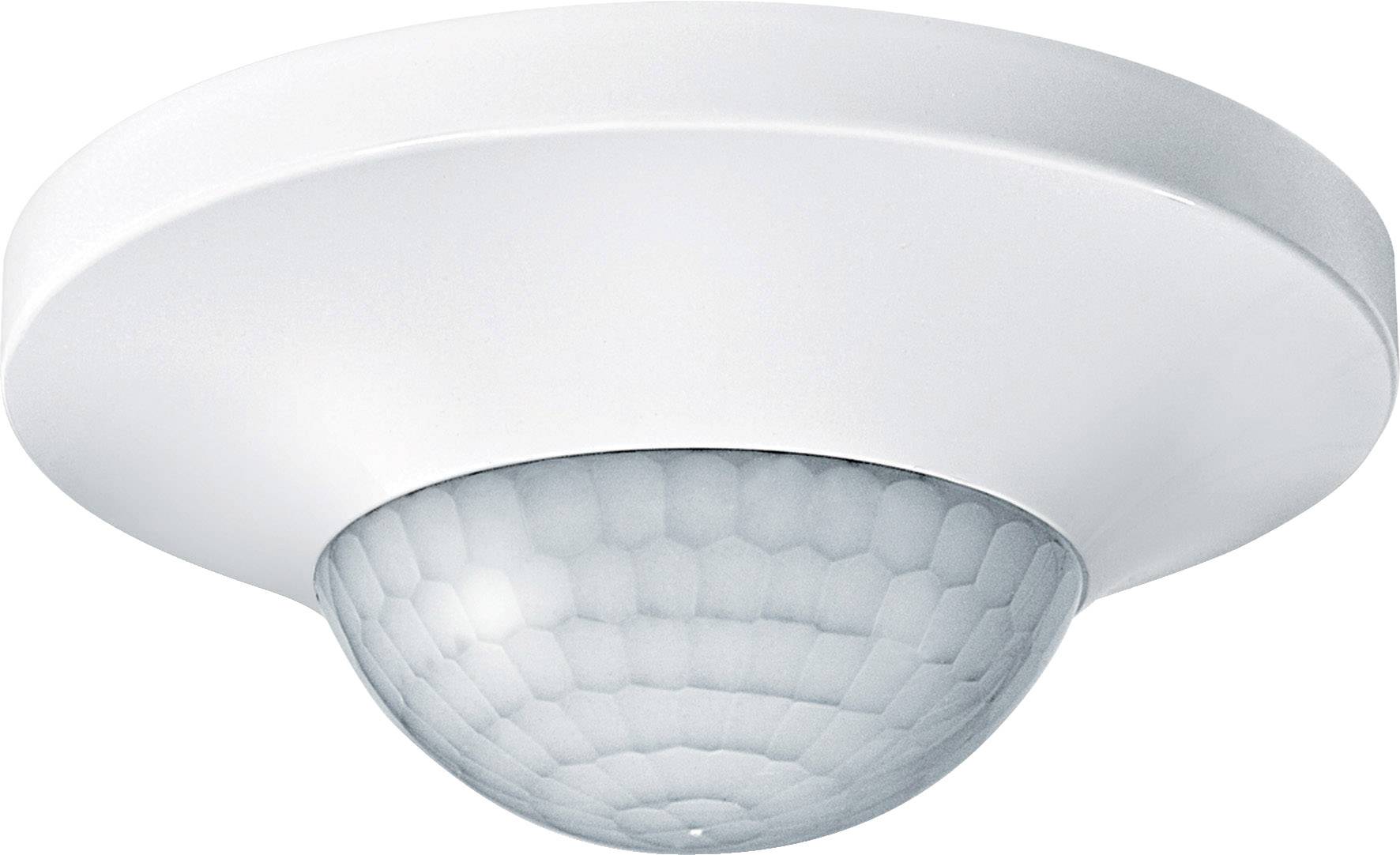

Merten MEG5510-1219 Flush mount Motion detector 360 ° Relay Polar white IP20
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Motion detector
- Detection angle
360°
7 m
- Used at
Indoors
- Mounting type
Flush mount
- Operating voltage
220 V
230 V
- Contact type
Relay
- Switching capacity
2200 W
- Switching capacity (light bulbs)
2200 W
- Switching capacity (halogen bulbs)
2000 W
- Twilight settings
10 lx - 1000 lx
- Time settings
10 s to 30 min
- Factory colour
Polar white
- Similar RAL
9010
IP20
- Operating temperature
0°C-25 °C
- Length
72 mm
- Width
116 mm
- Height
116 mm
- Dim
(L x W x H) 72 x 116 x 116 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1863526 Merten MEG5510-1219 Flush mount Motion detector 360 ° Relay Polar white IP20
User & Safety Instructions
User & Safety Instructions 1863526 Merten MEG5510-1219 Flush mount Motion detector 360 ° Relay Polar white IP20
Description
ARGUS Presence relay 2-way polar white MEG 5510 1219
