Buy Merten MEG5760-6052 MEG5760-6052 Indoor thermostat Screw fastening 1 pc(s)

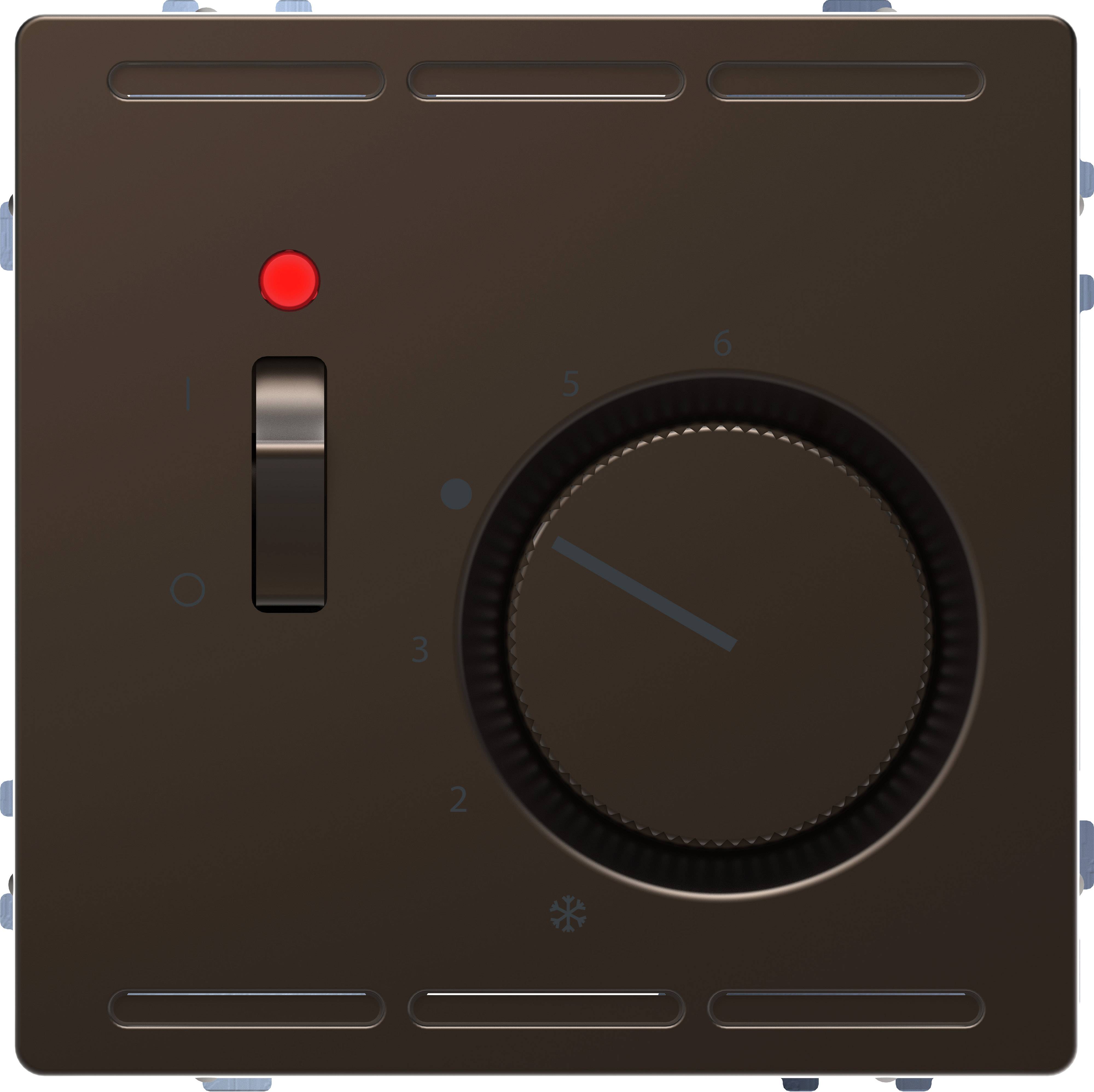

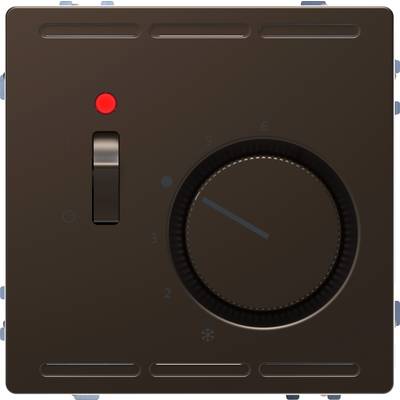

A dark temperature controller with a toggle switch on the left and a rotary dial on the right. The rotary dial has markings from 1 to 6.

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Product type: Indoor thermostat

Max. temperature setting: 30 °C

Temperature settings: 5 up to 30 °C

Display: No

Mounting type: Screw fastening

Operating voltage: 230 V

Hysteresis: 0.5 K

Contact current: 10 A

Nighttime drop: Yes

Factory colour: Mocha

Width: 71 mm

Height: 47 mm

Length: 71 mm

: IP20

Dim: (L x W x H) 71 x 71 x 47 mm

Contact type: 1 maker

Min. temperature setting: 5 °C

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 1864250 Merten MEG5760-6052 MEG5760-6052 Indoor thermostat Screw fastening 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1864250 Merten MEG5760-6052 MEG5760-6052 Indoor thermostat Screw fastening 1 pc(s)

Description

For System Design. For disconnected from the closed electromotive actuators. Range limitation in setting knob. With screw mounting. With plug-in terminals. Functions: - With on/off switch and indicator light. -1x-closing? erko stroke. Switching difference 0.5 K. Temperature range approx. 5-30 GradC. Connection for time-controlled night reduction by about 4K. - With thermal return. Nominal voltage 230 V. Nominal current (resistive): 10 A. Nominal current (inductive): 4 A, cos phi = 0.6. Heating capacity rating: 2200 W. Material: metal. Color: brown metallic.

This text is machine translated.
